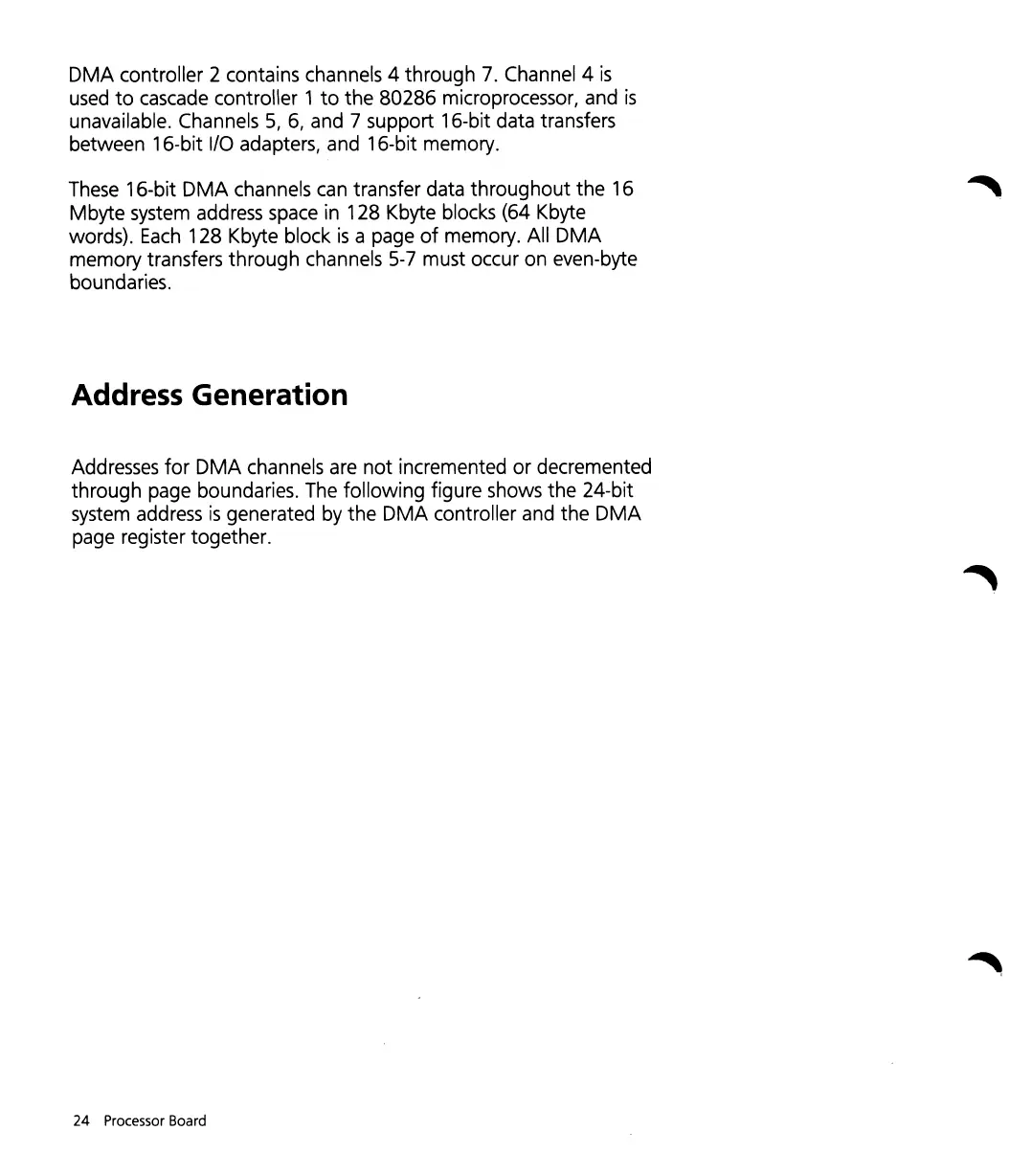

DMA controller 2 contains channels 4 through 7. Channel 4 is
used to cascade controller 1 to the 80286 microprocessor, and is
unavailable. Channels 5, 6, and 7 support 16-bit data transfers
between 16-bit I/O adapters, and 16-bit memory.
These 16-bit
DMA channels can transfer data throughout the 16
Mbyte system address space in 128 Kbyte blocks (64 Kbyte
words). Each 128 Kbyte block is a page of memory. All DMA
memory transfers through channels 5-7 must occur on even-byte
boundaries.
Address Generation
Addresses for DMA channels are not incremented or decremented
through page boundaries. The following figure shows the 24-bit
system address is generated by the DMA controller and the DMA
page register together.
24 Processor Board
