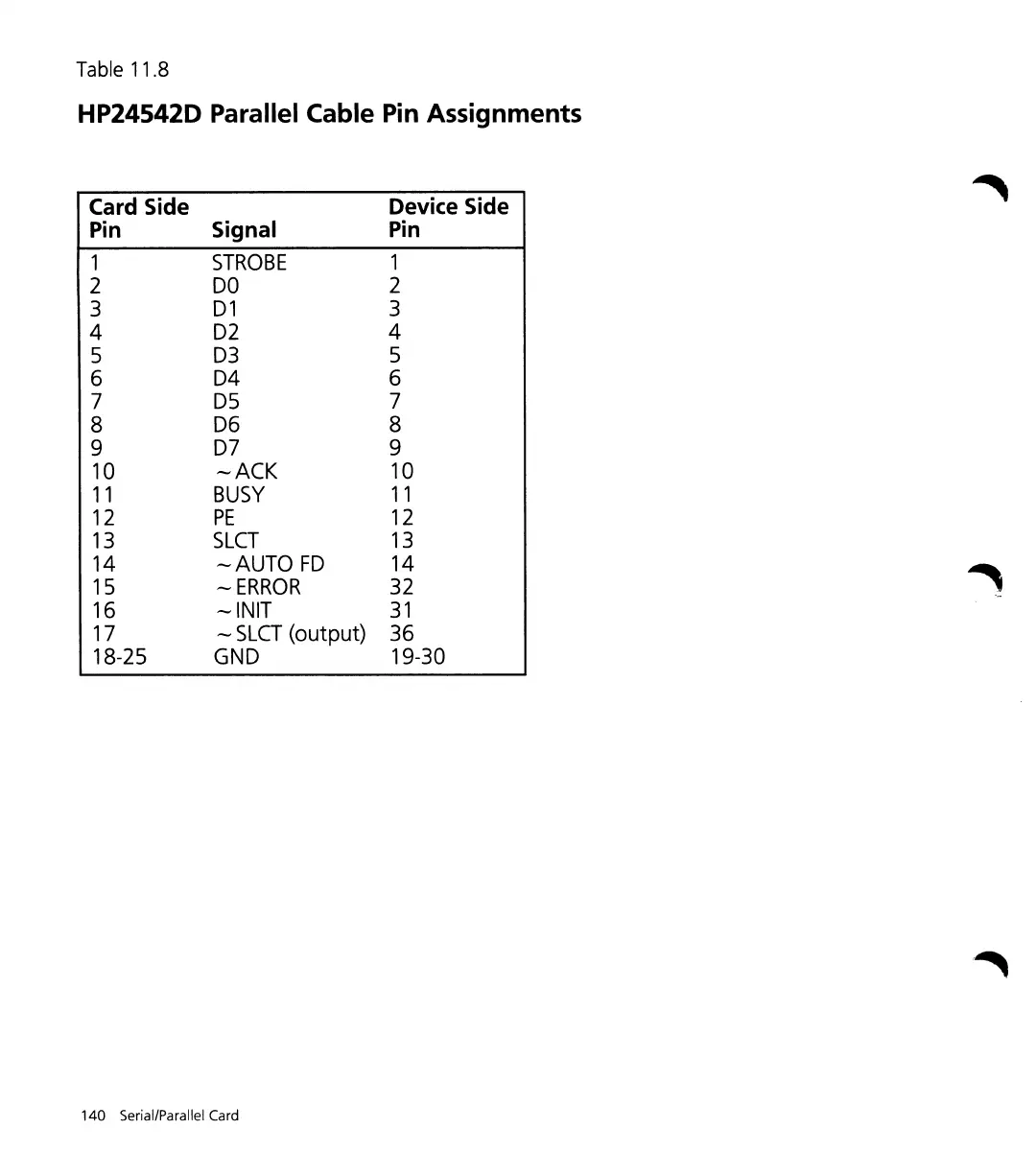

Table 11.8
HP24542D Parallel Cable Pin Assignments
Card Side
Device Side
Pin
Signal
Pin
1
STROBE
1
2
DO
2
3
D1
3
4
D2
4
5
D3
5
6
D4
6
7
D5
7
8
D6 8
9
D7
9
10
-ACK
10
11
BUSY
11
12
PE 12
13
SLCT
13
14 -AUTO FD
14
15
- ERROR
32
16 -INIT
31
17
- SLCT (output)
36
18-25
GND
19-30
140 Serial/Parallel Card
.. ~
