HP Vectra User Manual

1/0 Channel Connectors
,..
~~
J1 J2 J3
J4
J5
~J6 J7
0
0
0
,..
0
J12
J13
J15
0
0

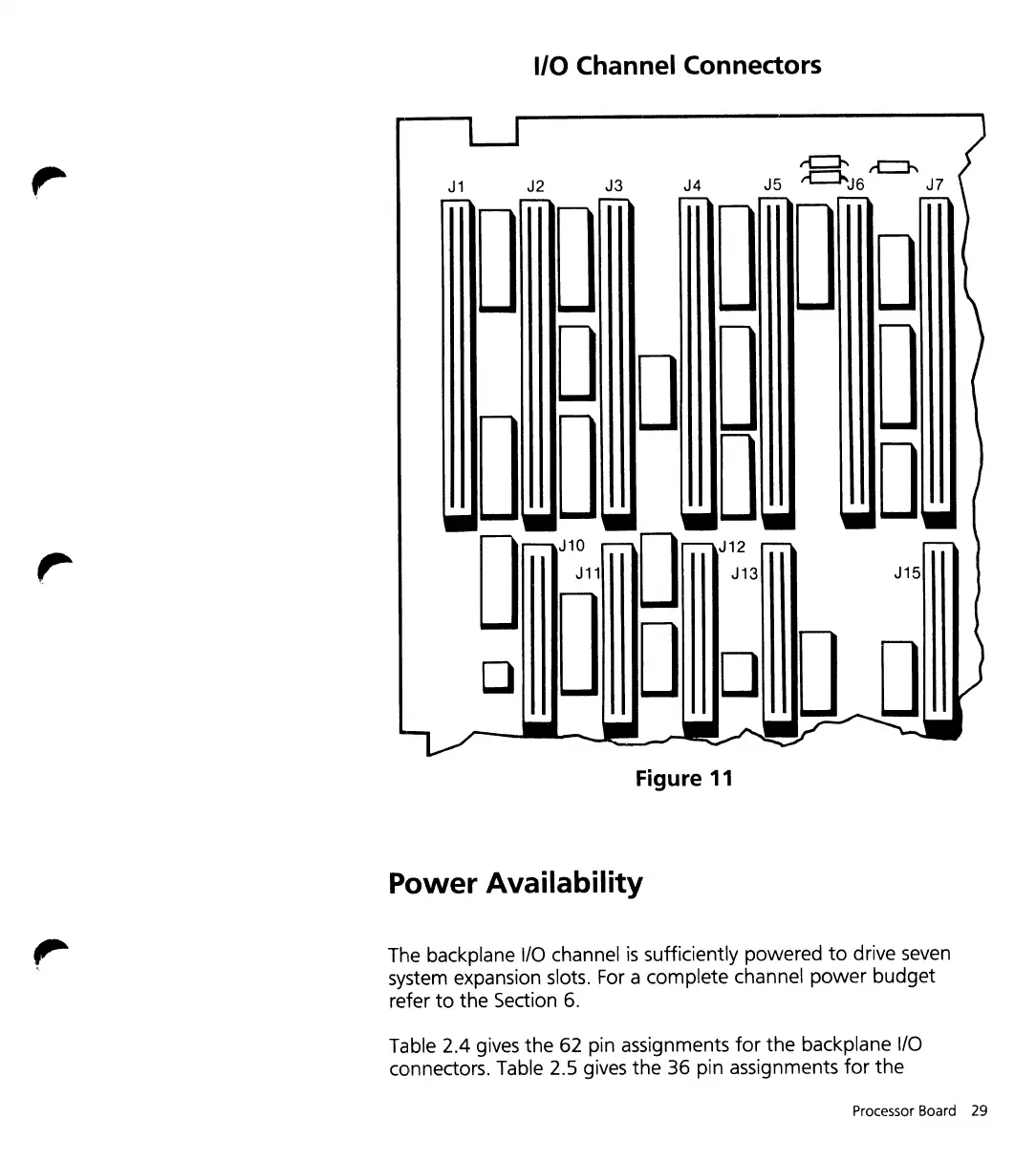

Figure 11
Power Availability
The backplane I/O channel is sufficiently powered to drive seven
system expansion slots. For a complete channel power budget
refer
to the Section 6.
Table 2.4 gives the 62 pin assignments for the backplane I/O
connectors. Table 2.5 gives
the 36 pin assignments for the
Processor Board 29
