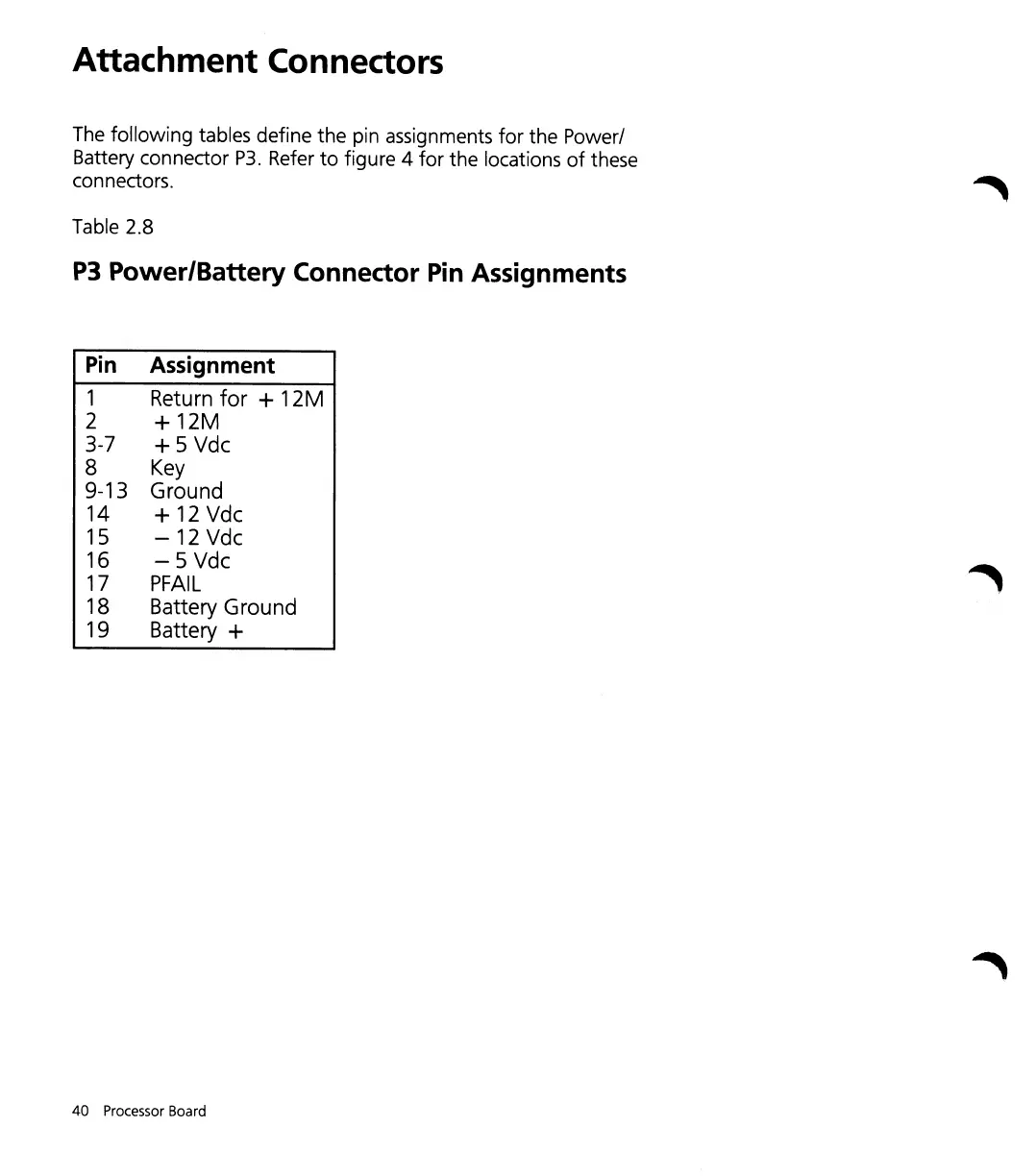

Attachment Connectors
The
following tables define the pin assignments
for
the Power/
Battery connector
P3.
Refer
to
figure 4
for
the locations
of
these
connectors.
Table 2.8
P3
Power/Battery Connector
Pin
Assignments
Pin
Assignment
1
Return
for
+ 12M
2
+ 12M
3-7
+5
Vdc
8
Key
9-13
Ground
14
+ 12 Vdc
15 - 12 Vdc
16 - 5 Vdc
17
PFAIL
18 Battery Ground
19
Battery +
40
Processor Board
