HP Vectra User Manual

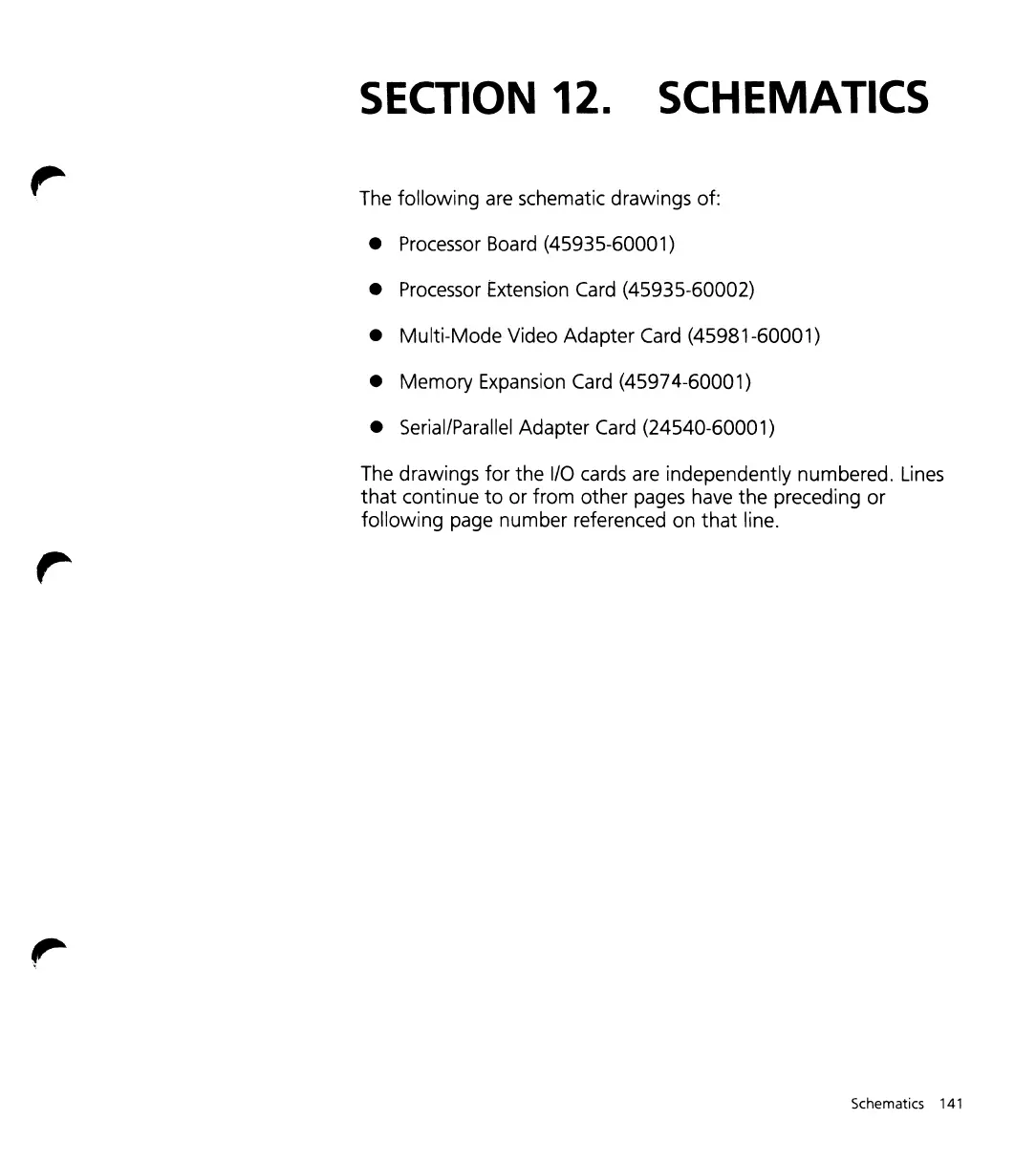

SECTION 12.
SCHEMATICS
The following are schematic drawings of:
• Processor Board (45935-60001)
• Processor Extension Card (45935-60002)
• rv1ulti-Mode Video Adapter Card (45981-60001)
• Memory Expansion Card (45974-60001)
• Serial/Parallel Adapter Card (24540-60001)
The drawings
for the I/O cards are independently numbered. Lines
that continue to or from other pages have the preceding or
following page number referenced on that line.
Schematics 141
