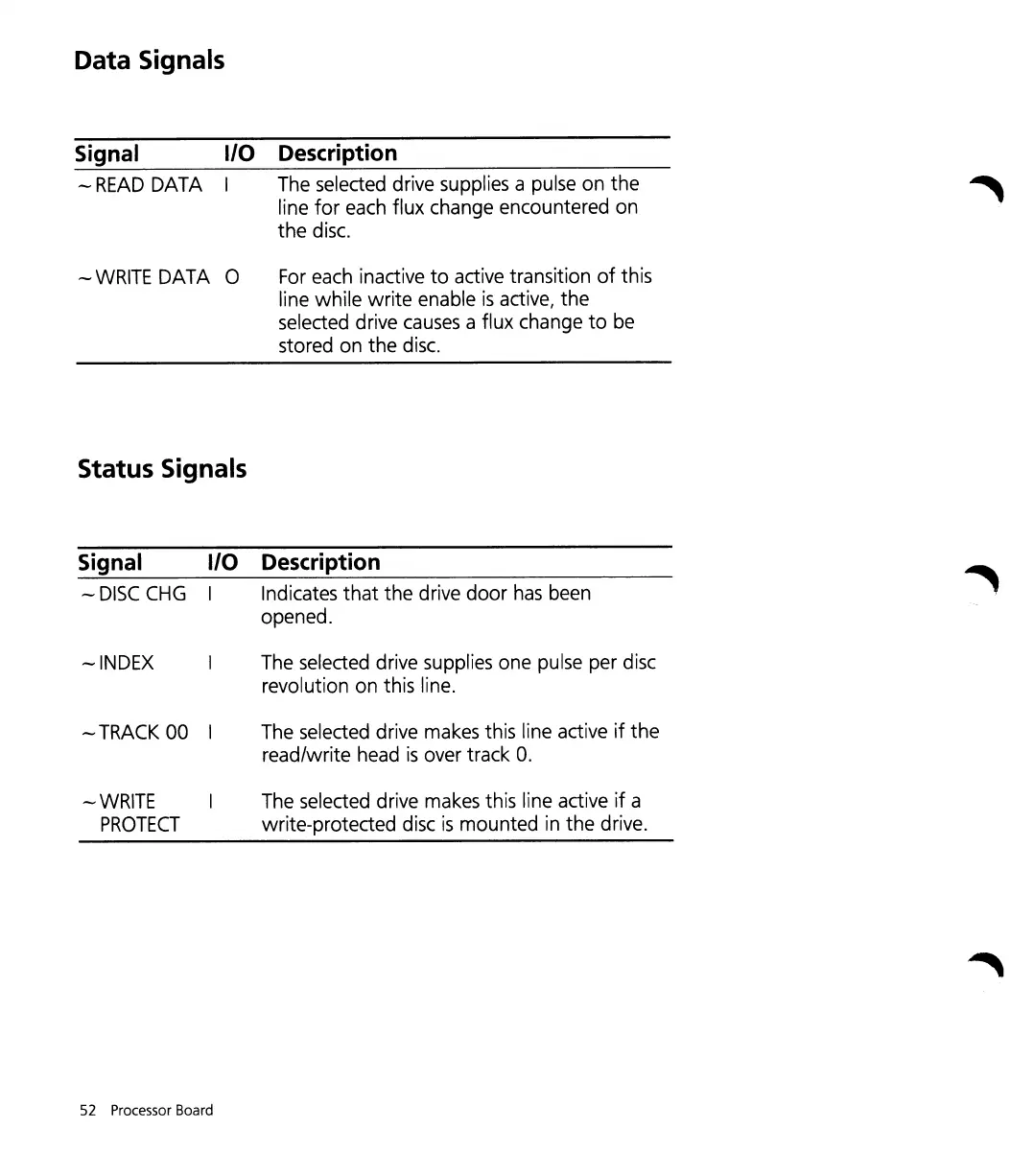

Data Signals
Signal 1/0 Description
-
READ
DATA I The selected drive supplies a pulse on
the
line
for
each flux change encountered on
the
disc.
-WRITE
DATA 0
Status Signals
For
each inactive
to
active transition
of
this
line while
write
enable
is
active,
the
selected drive
causes
a flux change
to
be
stored on
the
disc.
Signal 1/0 Description
-
DISC
CHG
I Indicates
that
the
drive
door
has
been
opened.
-INDEX
-
TRACK
00 I
-WRITE
PROTECT
52 Processor Board
The selected drive supplies one pulse per disc
revolution on this line.
The selected drive makes this line active
if
the
read/write head
is
over track
o.
The selected drive makes this line active
if
a
write-protected disc
is
mounted in
the
drive.
