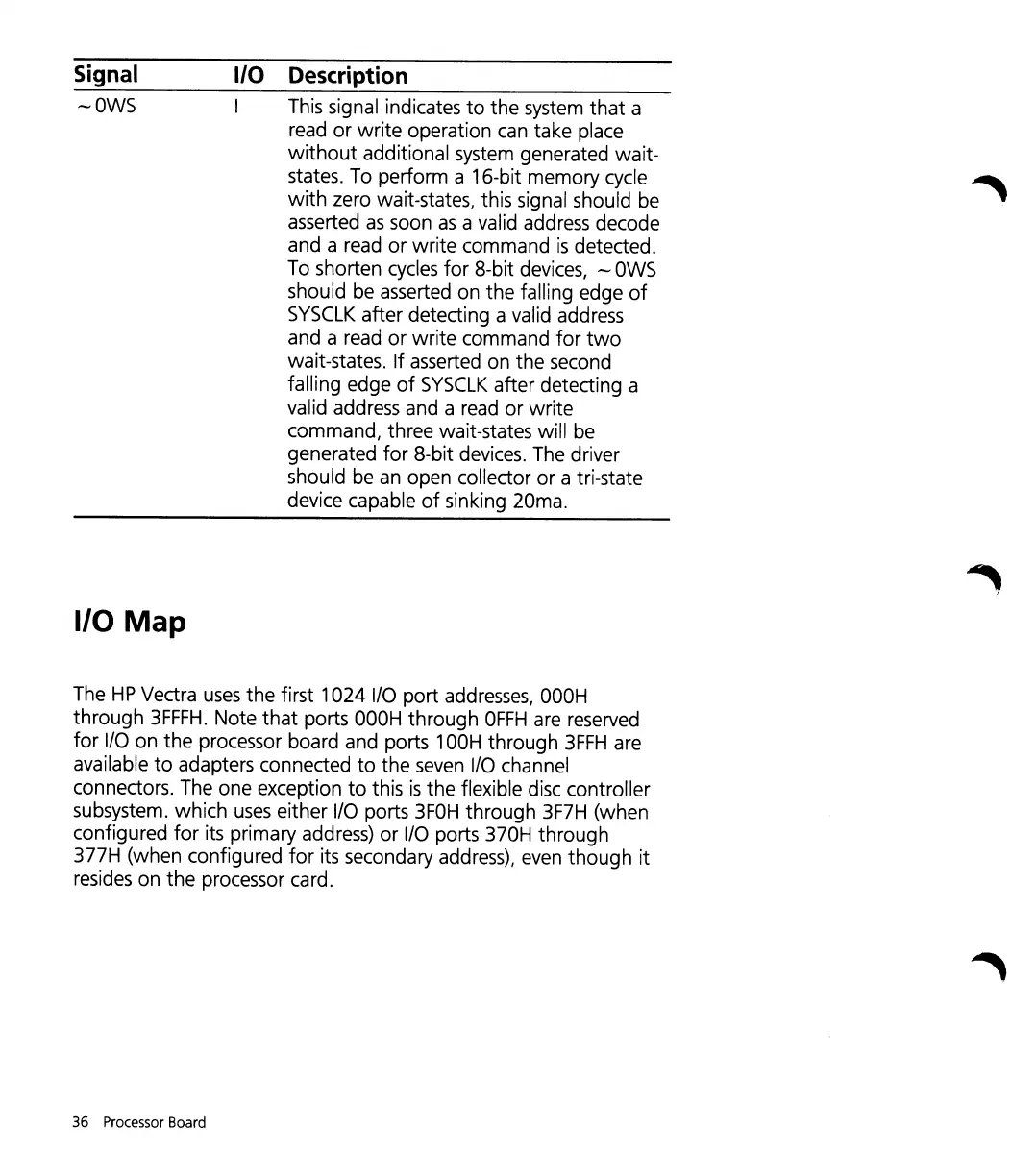

Signal
-OWS
I/O Map
I/O Description
I This signal indicates to the system that a
read
or write operation can take place
without additional system generated wait-
states. To perform a 16-bit memory cycle
with zero wait-states, this signal should be
asserted
as soon as a valid address decode
and a read
or write command is detected.
To shorten cycles
for 8-bit devices, - OWS
should be asserted on the falling edge of
SYSCLK after detecting a valid address
and a read
or write command for two
wait-states. If asserted on the second
falling edge
of SYSCLK after detecting a
valid address and a read
or write
command, three wait-states will be
generated
for 8-bit devices. The driver
should be
an open collector or a tri-state
device capable
of sinking 20ma.
The
HP Vectra uses the first 1024 I/O port addresses, OOOH
through 3FFFH. Note that ports OOOH through OFFH are reserved
for I/O on the processor board and ports 100H through 3FFH are
available
to adapters connected to the seven I/O channel
connectors. The one exception
to this is the flexible disc controller
subsystem. which uses either I/O ports 3FOH through 3F7H (when
configured for its primary address) or I/O ports 370H through
377H (when configured for its secondary address), even though it
resides on
the processor card.
36 Processor Board
