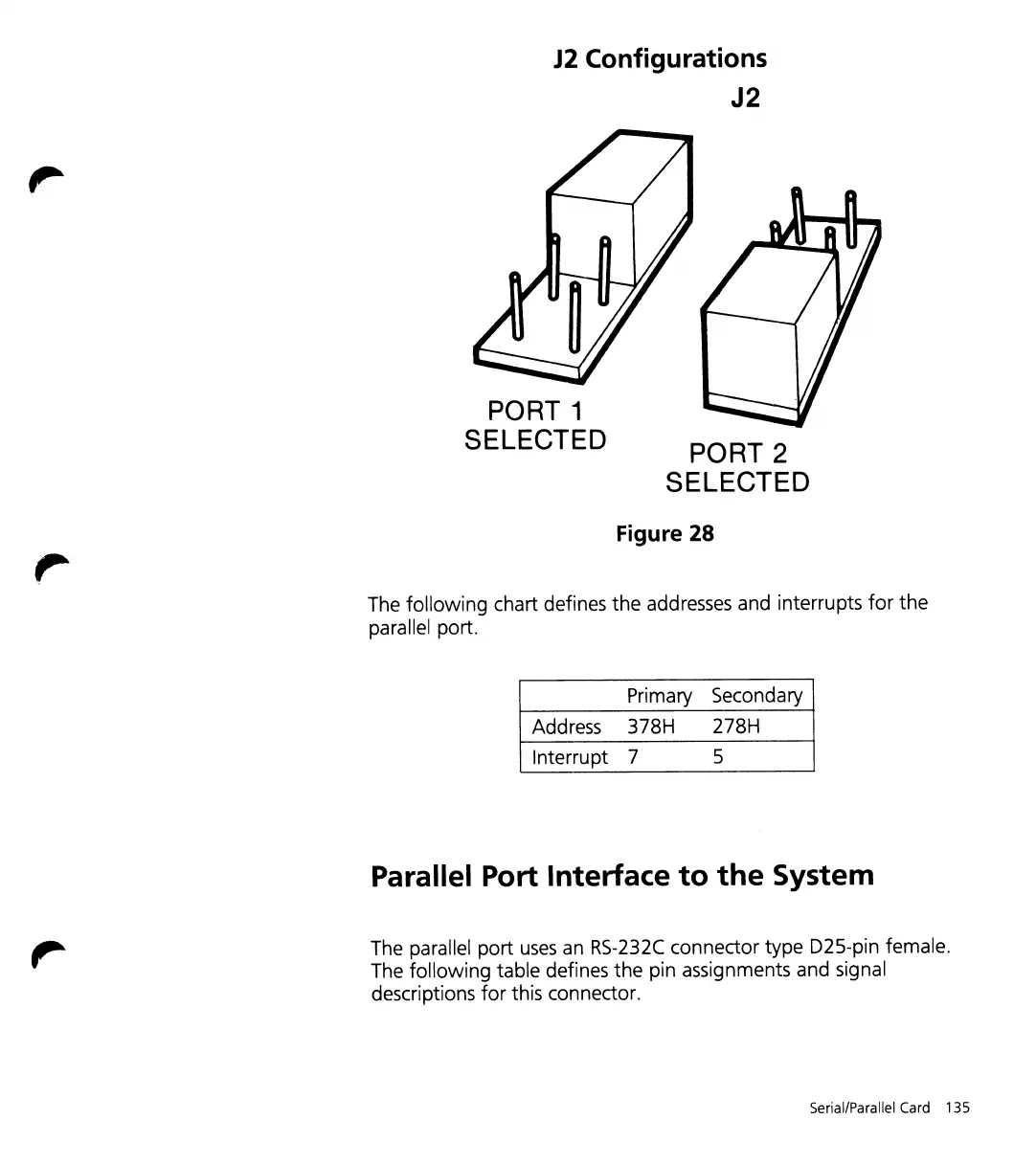

J2
Configurations
J2
PORT 1
SELECTED
PORT 2
SELECTED
Figure 28
The following chart defines the addresses and interrupts
for
the
parallel port.
Primary Secondary
Address 378H 278H
Interrupt 7 5
Parallel Port Interface
to
the
System
The parallel port
uses
an
RS-232C
connector type D25-pin female.
The following table defines the pin assignments and signal
descriptions
for
this connector.
Serial/Parallel
Card
135
