HP Vectra User Manual

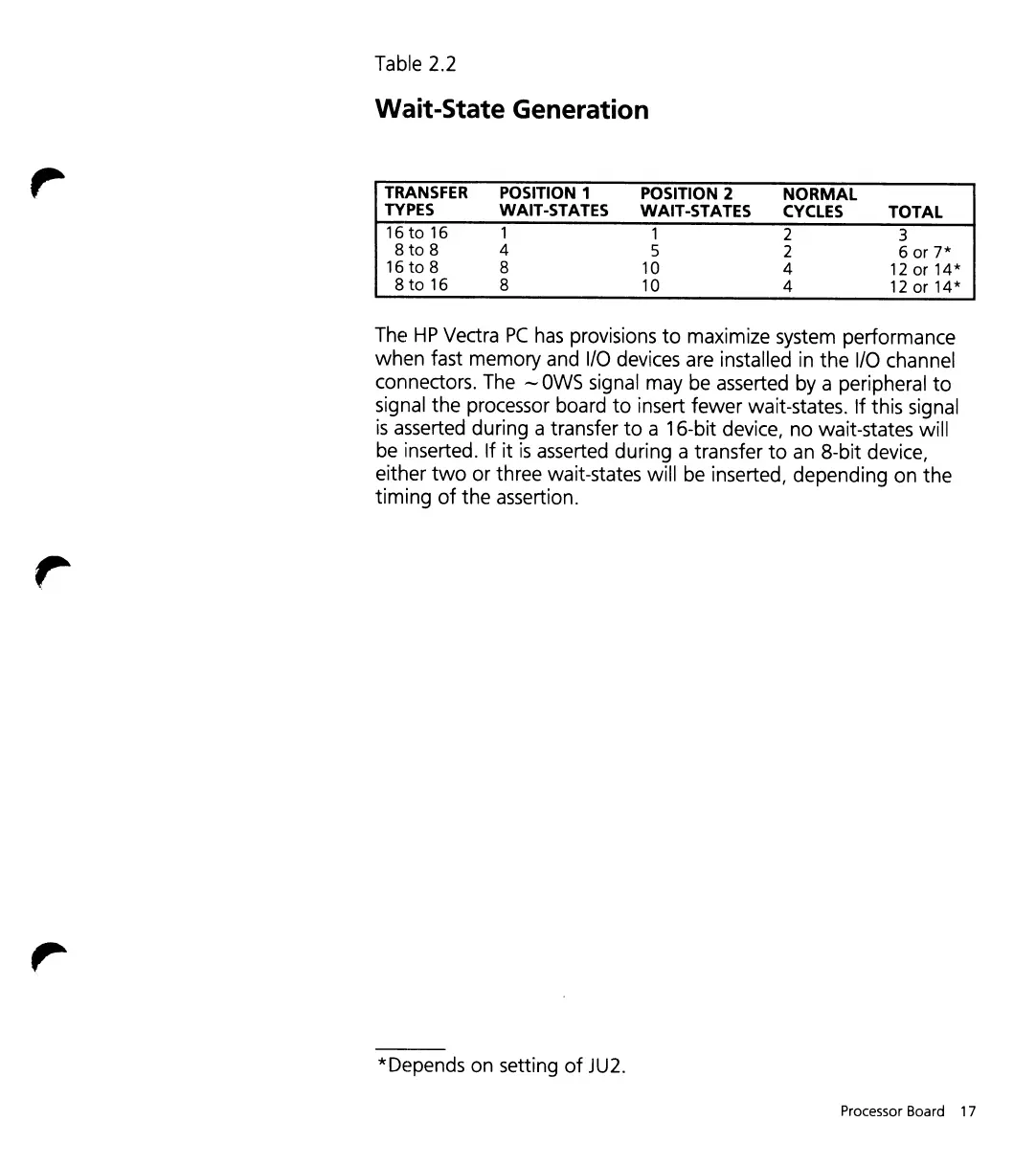

Table 2.2
Wait-State Generation
TRANSFER POSITION 1
POSITION 2 NORMAL
TYPES WAIT-STATES
WAIT-STATES
CYCLES TOTAL
16 to 16
1
1
2
3
8 to 8
4
5
2
6
or 7*
16 to 8 8
10
4
12 or 14*
8 to 16 8
10
4 12 or 14*
The HP Vectra PC has provisions to maximize system performance
wh,en fast memory and I/O devices are installed in the I/O channel
connectors. The -- OWS signal may be asserted by a peripheral to
signal the processor board to insert fewer wait-states. If this signal
is asserted during a transfer to a 16-bit device, no wait-states will
be inserted. If it is asserted during a transfer to an 8-bit device,
either two or three wait-states will be inserted, depending on the
timing of the assertion.
*Depends on setting of JU2.
Processor Board 17
