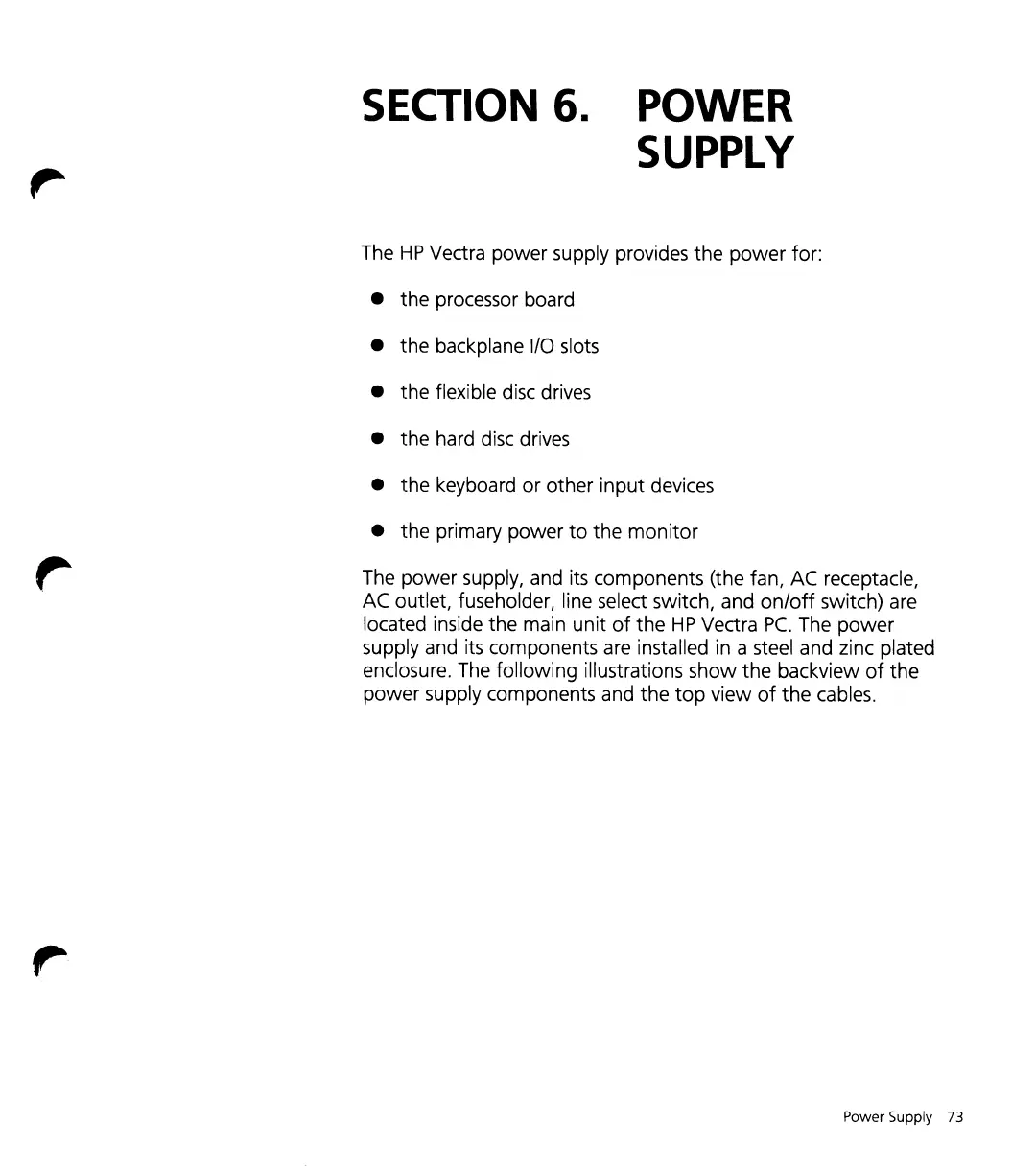

SECTION
6.
POWER
SUPPLY
The
HP
Vectra power supply provides the power for:
• the processor board
• the backplane
I/O
slots
• the flexible disc drives
• the hard disc drives
• the keyboard or other input devices
• the primary power
to
the monitor
The power supply, and
its
components (the fan,
AC
receptacle,
AC
outlet, fuseholder, line select switch, and
on/off
switch) are
located inside the main unit
of
the
HP
Vectra
PC.
The power
supply and its components are installed in a steel and zinc plated
enclosure. The following illustrations show the backview
of
the
power supply components and the
top
view
of
the cables.
Power Supply 73
