SECTION
9.
DISC
DRIVES
The
HP
Vectra
has
two
different internal hard disc drives
as
accessories:
the
HP45817A
40MB
5 1/4 inch disc drive and
the
HP45816A 20MB disc drive.
The
HP
Vectra
PC
is
equipped
with
one internal flexible disc drive
and
has
the
capabilities
to
support another flexible disc drive. The
flexible disc drives
that
are accessories
to
the
HP
Vectra
PC
are:
the
HP45811A 360KB Internal Flexible Disc Drive and
the
HP45812A 1.2MB Internal Flexible Disc Drive. The flexible disc
controller subsystem
is
a component
of
the
processor board.

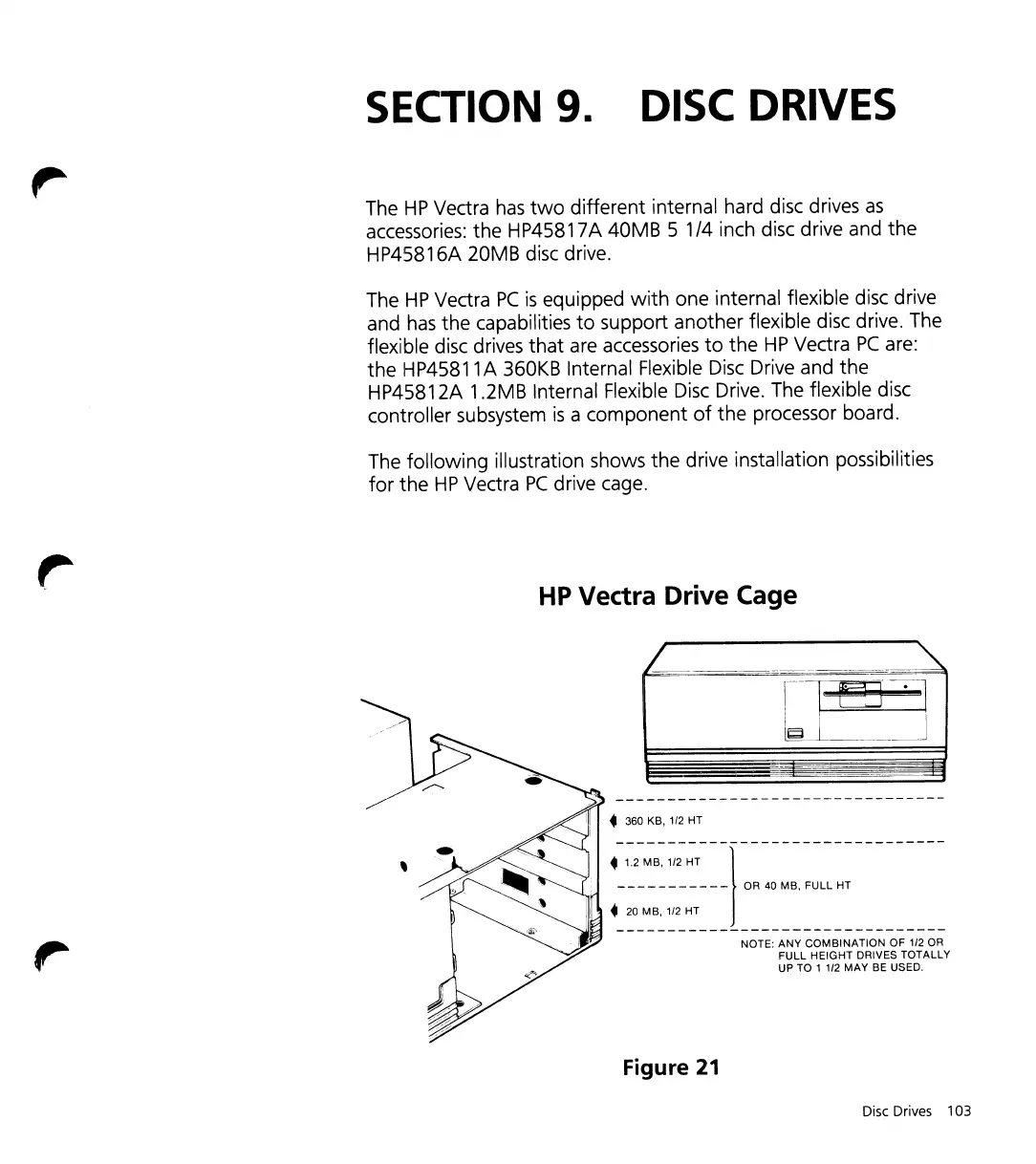

The following illustration shows
the
drive installation possibilities
for
the
HP
Vectra
PC
drive cage.
HP
Vectra Drive Cage
• 360 KB, 1/2 HT
;;;~;~;:;--)---------------------
-----------
OR 40 MB, FULL HT
•
20
MB. 1/2 HT
NOTE: ANY
COMBINATION
OF 1/2 OR
FULL HEIGHT DRIVES TOTALLY
UP TO 1 1/2 MAY BE USED.
Figure
21
Disc Drives 103
