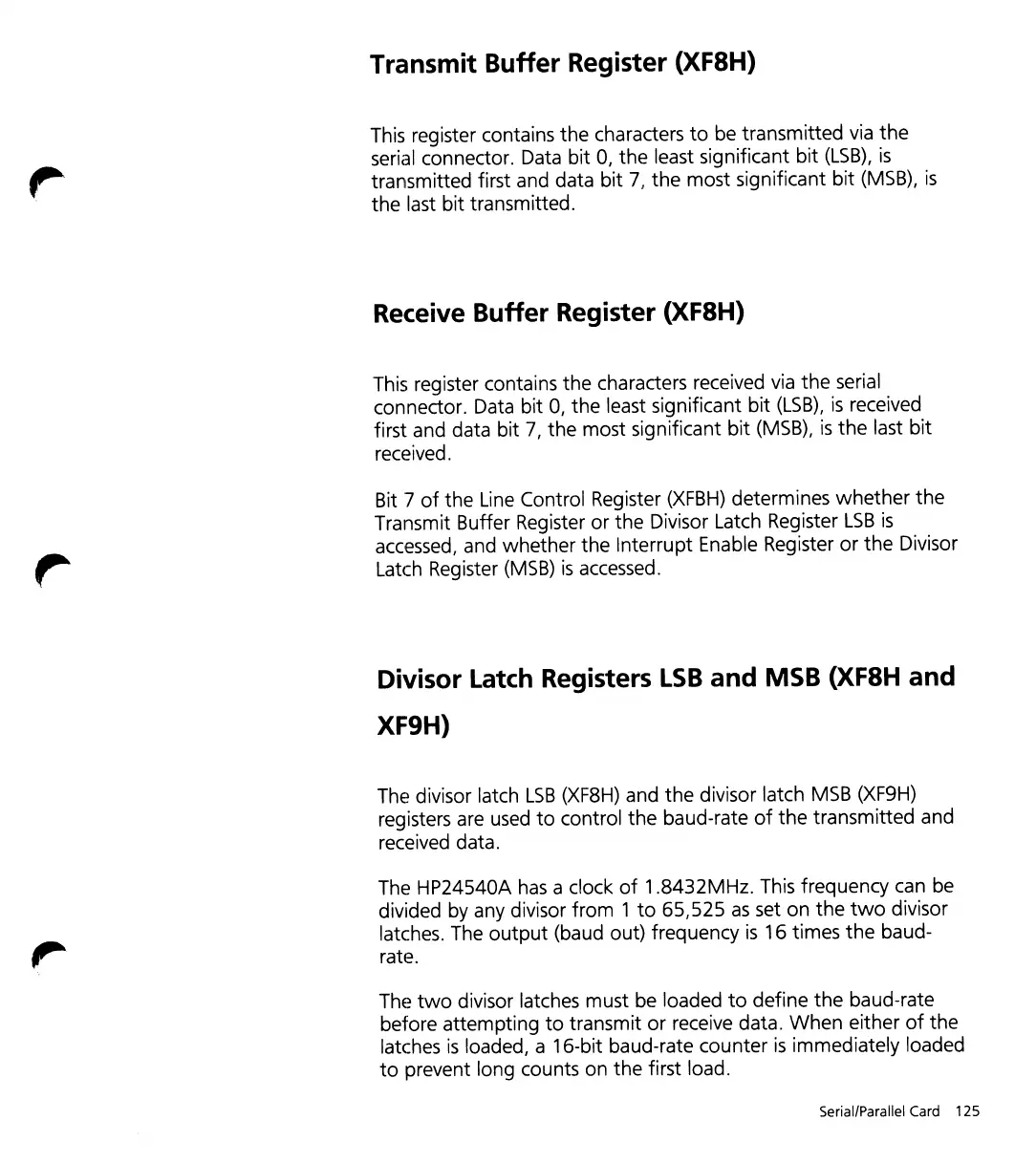

Transmit Buffer Register (XF8H)
This register contains the characters
to
be transmitted
via
the
serial connector. Data bit
0,
the
least significant bit
(LSB),
is
transmitted first and data bit
7,
the most significant bit (MSB),
is
the last bit transmitted.
Receive Buffer Register (XF8H)
This register contains the characters received
via
the
serial
connector. Data bit
0,
the least significant bit
(LSB),
is
received
first and data bit
7,
the most significant
bit
(MSB),
is
the
last
bit
received.
Bit 7
of
the
Line
Control Register
(XFBH)
determines
whether
the
Transmit Buffer Register
or
the Divisor Latch Register
LSB
is
accessed, and whether
the
Interrupt Enable Register
or
the
Divisor
Latch Register
(MSB)
is
accessed.
Divisor
latch
Registers lSB and MSB (XF8H and
XF9H)
The divisor latch
LSB
(XF8H)
and
the
divisor latch
MSB
(XF9H)
registers are
used
to
control
the
baud-rate
of
the
transmitted and
received data.
The HP24540A
has
a clock
of
1.8432MHz. This frequency can be
divided by any divisor from 1
to
65,525
as
set on
the
two
divisor
latches. The
output
(baud out) frequency
is
16 times
the
baud-
rate.
The
two
divisor latches must be loaded
to
define
the
baud-rate
before attempting
to
transmit
or
receive data. When either
of
the
latches
is
loaded, a 16-bit baud-rate counter
is
immediately loaded
to
prevent long counts on the first load.
Serial/Parallel Card 125
