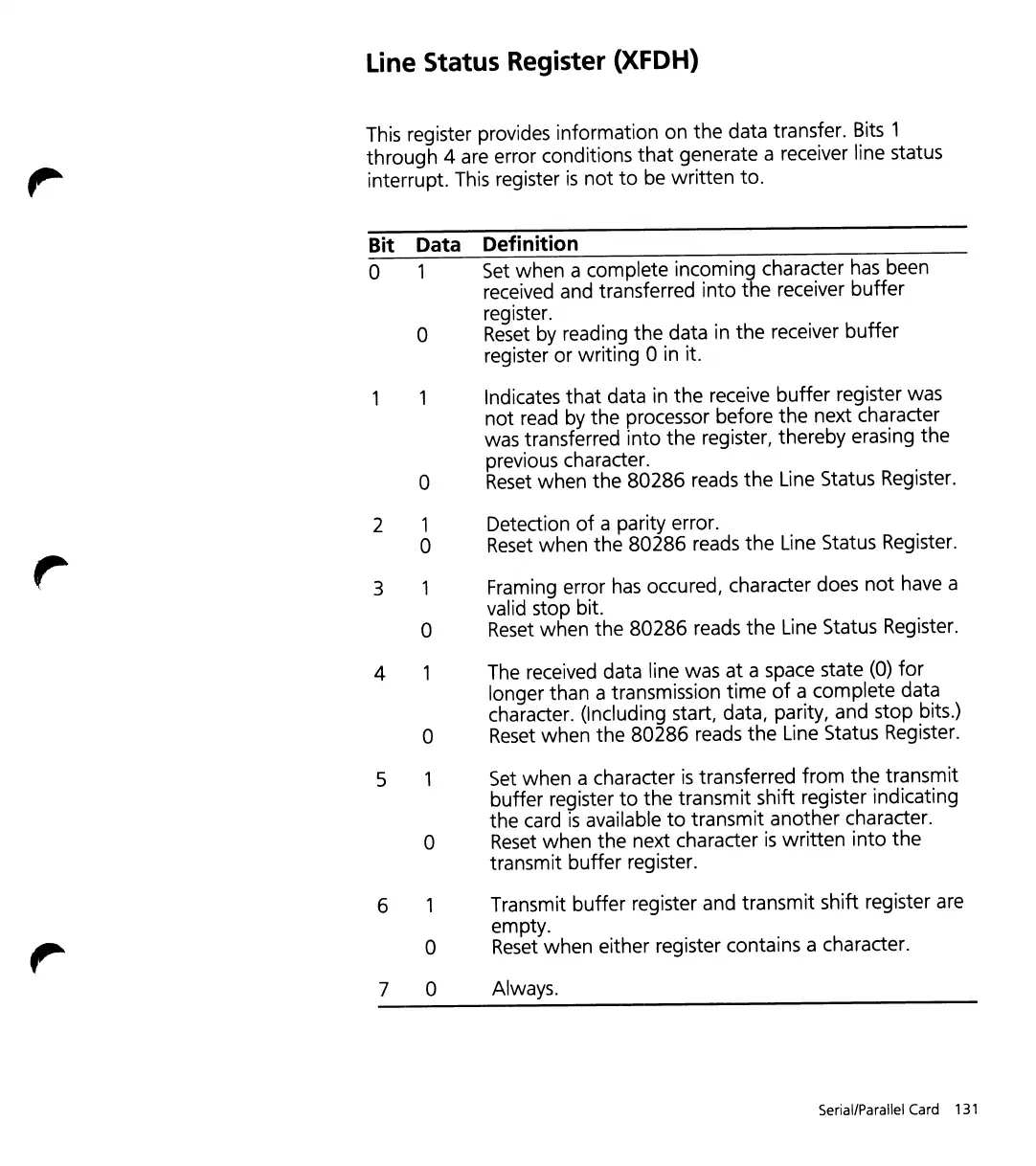

Line Status Register (XFDH)
This register provides information on the data transfer. Bits 1
through 4 are error conditions that generate a receiver line status
interrupt.
This register is not to be written to.
Bit Data Definition
0
1 Set when a complete incoming character has been
received and transferred
into the receiver buffer
register.
0
Reset by reading the data in the receiver buffer
register or writing 0 in it.
Indicates
that data in the receive buffer register was
not read by the processor before the next character
was transferred into
the register, thereby erasing the
previous character.
0
Reset when the 80286 reads the Line Status Register.
2
1 Detection of a parity error.
~
0
Reset when the 80286 reads the Line Status Register.
3 Framing error has occured, character does not have a
valid stop bit.
0
Reset when the 80286 reads the Line Status Register.
4 The received data line was at a space state (0) for
longer than a transmission time of a complete data
character. (Including start, data, parity, and stop bits.)
0
Reset when the 80286 reads the Line Status Register.
S
Set when a character is transferred from the transmit
buffer register
to the transmit shift register indicating
the card
is available to transmit another character.
0
Reset when the next character is written into the
transmit buffer register.
6
Transmit buffer register and transmit shift register are
empty.
0
Reset when either register contains a character.
7 0
Always.
Serial/Parallel Card 131
