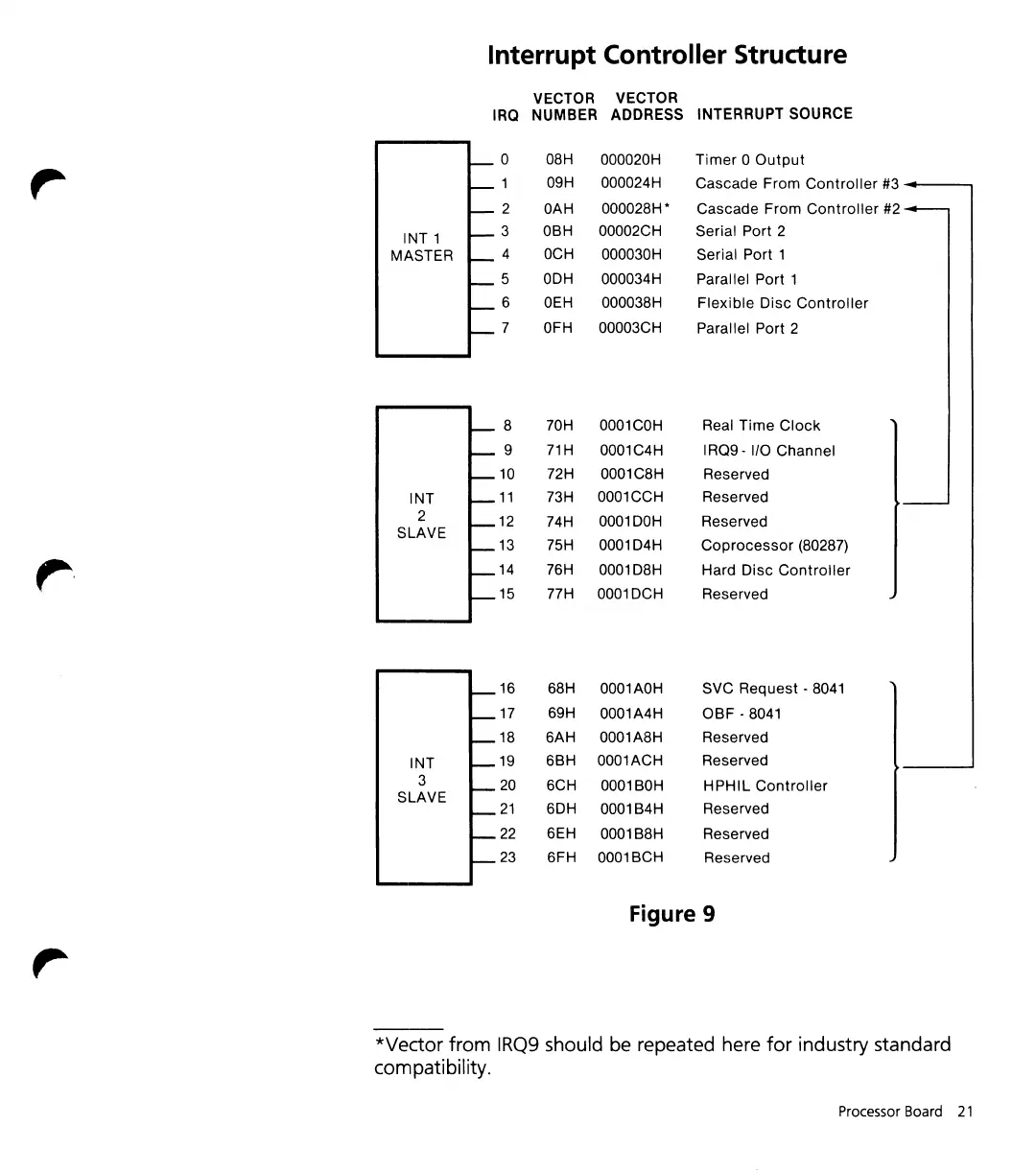

Interrupt Controller Structure
VECTOR
VECTOR
IRQ NUMBER ADDRESS
INTERRUPT SOURCE
0 08H
000020H
Timer 0 Output
1
09H
000024H
Cascade From Controller #3
2
OAH
000028H*
Cascade From Controller #2
INT 1
3 OBH
00002CH
Serial Port 2
MASTER
4
OCH
000030H
Serial Port 1
5 ODH
000034H
Parallel Port 1
6
OEH
000038H
Flexible Disc Controller
7 OFH
00003CH
Parallel Port 2
8
70H
0001COH
Real Time Clock
9 71H
0001C4H
IRQ9 - 1/0 Channel
10
72H 0001C8H
Reserved
INT
11 73H 0001CCH
Reserved
2
12
74H
0001 DOH
Reserved
SLAVE
13
75H 0001D4H
Coprocessor (80287)
~,
14
76H
0001 D8H
Hard Disc Controller
15
77H
0001 DCH
Reserved
16
68H
0001AOH
SVC Request - 8041
17 69H
0001A4H
OBF - 8041
18 6AH 0001A8H
Reserved
INT
19
6BH 0001ACH
Reserved
3
20
6CH
0001 BOH
H PH IL Controller
SLAVE
6DH
0001 B4H Reserved
21
22 6EH
0001B8H
Reserved
23
6FH 0001 BCH
Reserved
Figure 9
*Vector from IRQ9 should be repeated here for industry standard
compatibility.
Processor Board 21
