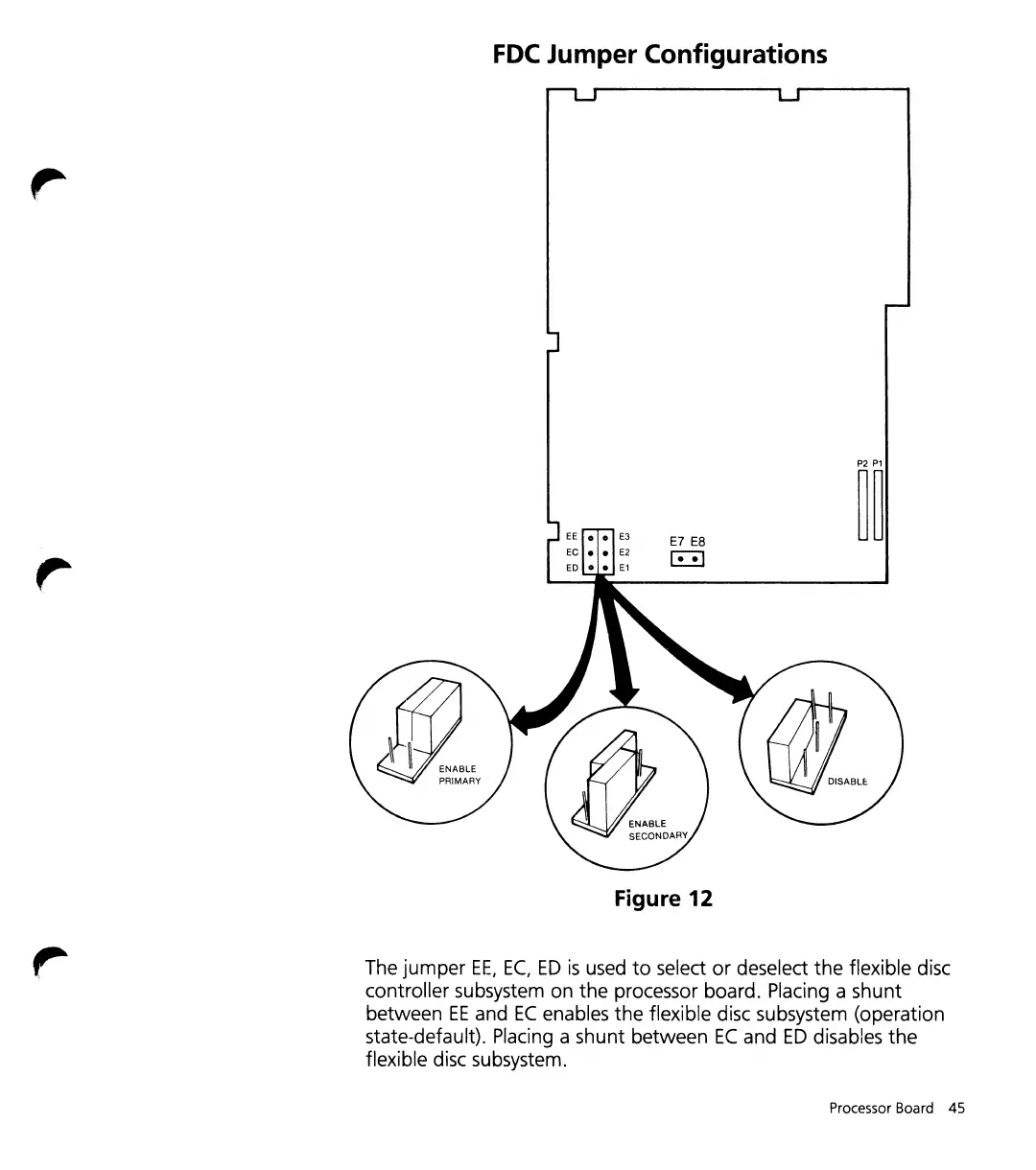

FOC Jumper Configurations
E7 E8
B
Figure 12
P2 P1
~~
The jumper EE, EC, ED is used to select or deselect the flexible disc
controller subsystem on
the processor board. Placing a shunt
between
EE and EC enables the flexible disc subsystem (operation
state-default). Placing a shunt between
EC and ED disables the
flexible disc subsystem.
Processor Board 45
