Solving Problems
LED Error Codes

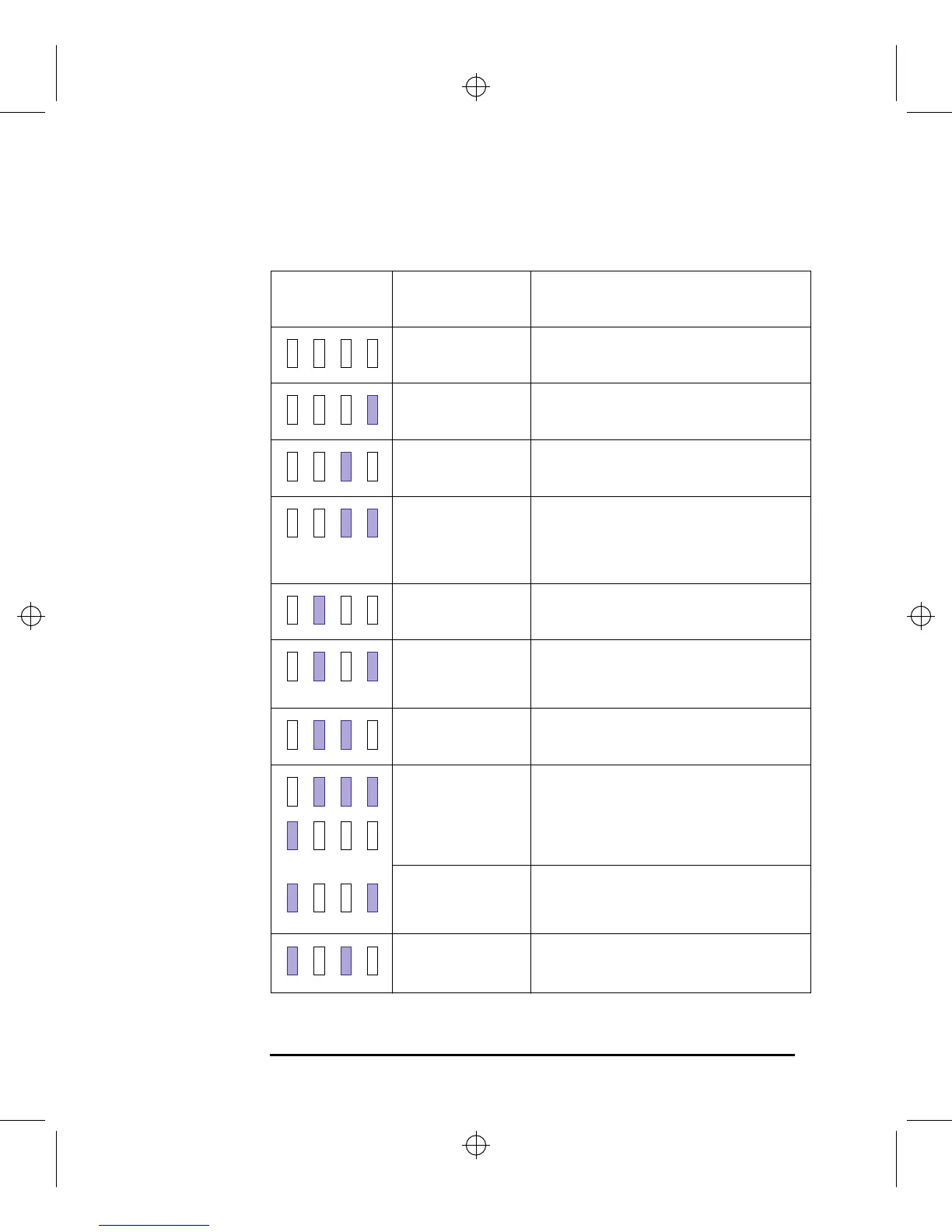

Table 16 LED Error Codes
LED Value
RS-232 Chassis
Code Range
Description
N/A Reserved
7401 No memory found FAULT
Likely cause: SIMMs or processor board
N/A Reserved
FLT 7000-7F00 Memory Error Fault
Likely Cause: Memory SIMMs
System console will indicate which SIMM
fault occurred on
FLT 1030-4099 Processor board FAULT (includes PDH
which could be on I/O board.)
FLT 5000 - 500F
FLT 8000 - 8FFF
FLT CD00 - CDff*
I/O System FAULT
*Except backplane faults listed below
FLT 8500, 8501
FLT 8C00-8CFF
Backplane FAULT
Any INIT/TEST
code
INITIALIZATION and TESTING
Note: These two LED codes will alternate
to indicate forward progress: 0111, 1000,
0111...
Any fault not in
this table including
FLT 1000-101C
Unknown FAULT
FLT CBF0 - CBFF HPMC FAULT
