Solving Problems
LED Error Codes
LED Error Codes
This section contains information about the error codes displayed by the
LEDs on the system’s front panel.
If an error occurs during the power-up diagnostics tests, the diagnostics use
the front panel LEDs to display a code for the failing component.
Figure 24 shows the location of the system unit’s front panel LEDs. The four
amber LEDs indicate system status and error codes.
Table 16 shows the LED error codes as they appear on the front panel LEDs.
Use these LED codes to determine the failing component.

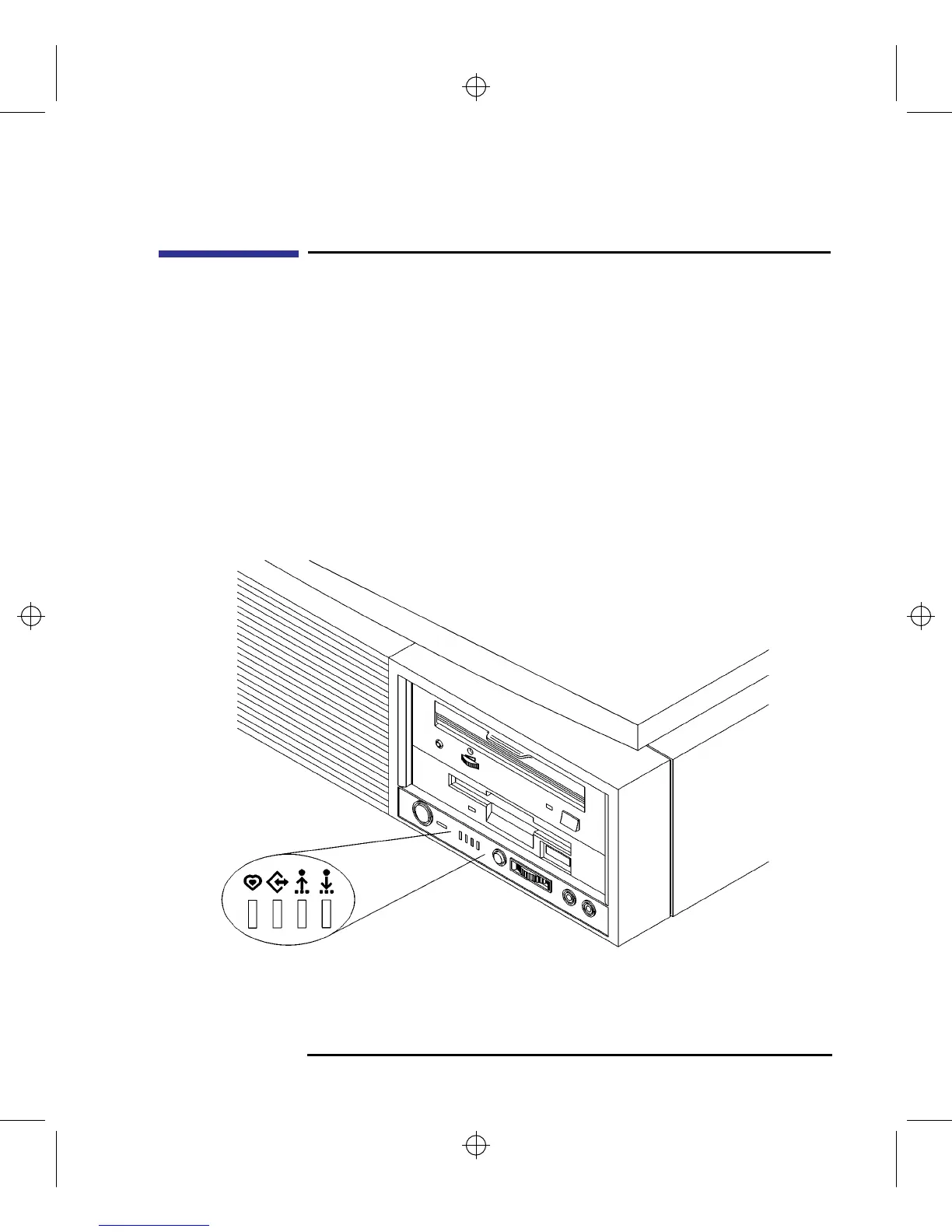

Figure 24 System Unit Front Panel LEDs
