Changing Your Workstation’s Hardware Configuration
Installing Storage Devices
2 From the rear of the storage tray, line up the disk slides on the CD-ROM or DDS
tape drive with the position 1slots in the storage tray chassis, and slide it into
place, as shown in Figure 29.

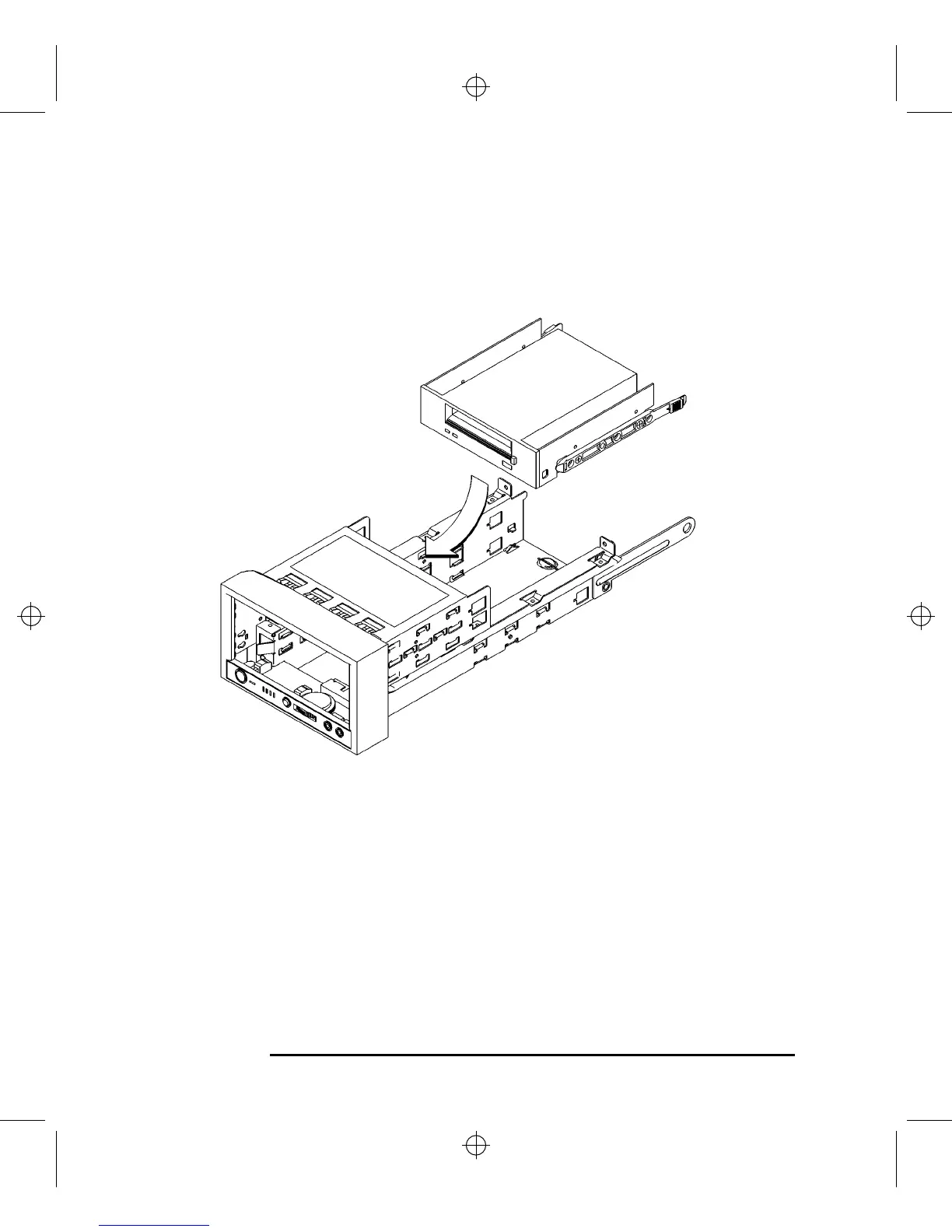

Figure 29 Installing a CD-ROM or DDS Tape
3 Push the storage device in until the locking tabs snap into place.
4 Connect the single-ended SCSI-2 data cable and the power cable to the drive.
Refer to the cable routing label on the storage tray.
5 Proceed to the section entitled Replacing the Storage Tray.
CD-ROM or DDS Tape Drive
Cable Routing Label
