2. Disconnect the data 1 and power 2 cables from the hard drive.

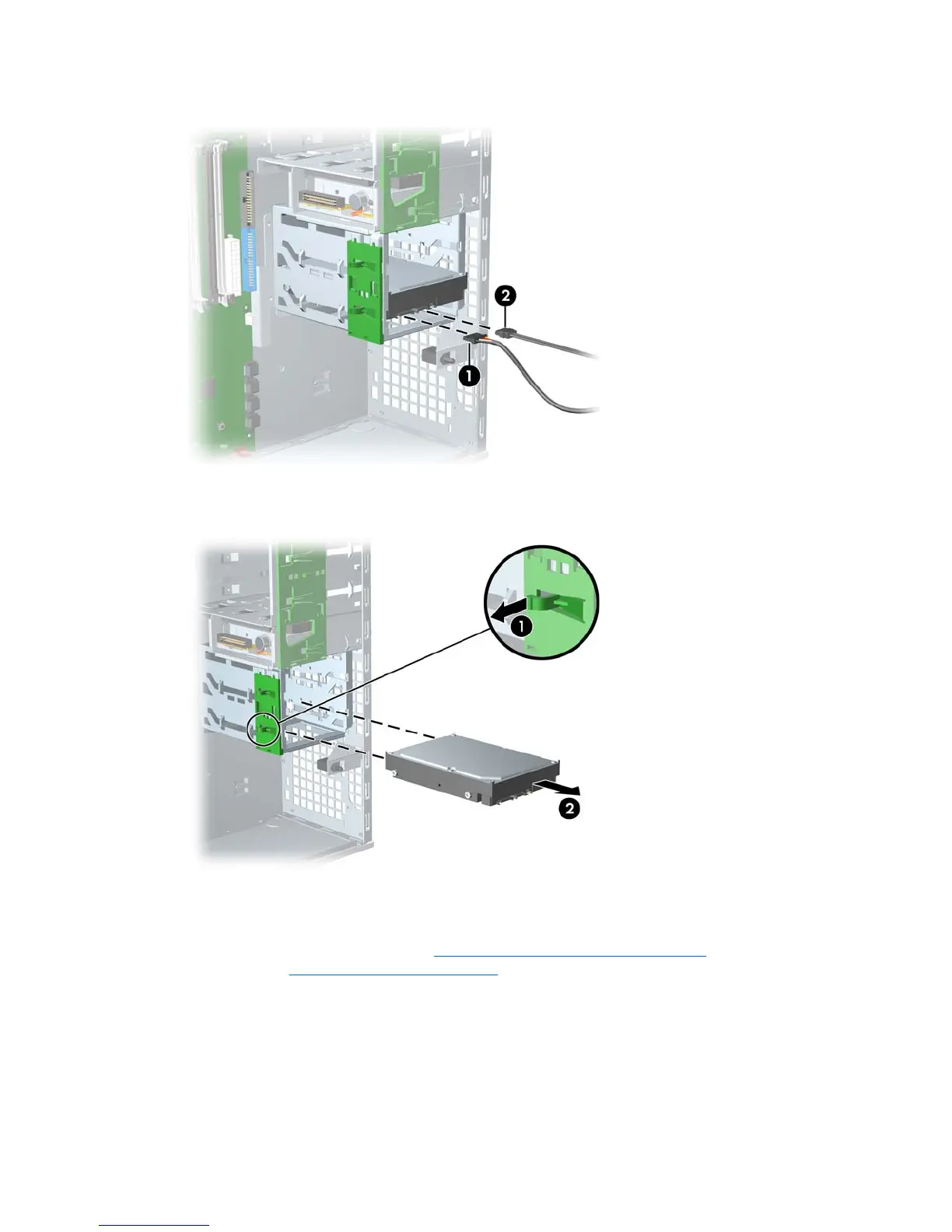

Figure 4-42 Removing the hard drive
3. Lift up on the green drive-lock release tab 1 and slide the hard drive 2 out of the chassis.
Figure 4-43 Removing the hard drive
To install a SAS hard drive:
1. Disconnect power from the system (
Predisassembly procedures on page 60) and remove the side
access panel (
Side access panel on page 66).
