3. Lift the green drive-lock release tab 1 and gently slide the drive 2 out at the same time.

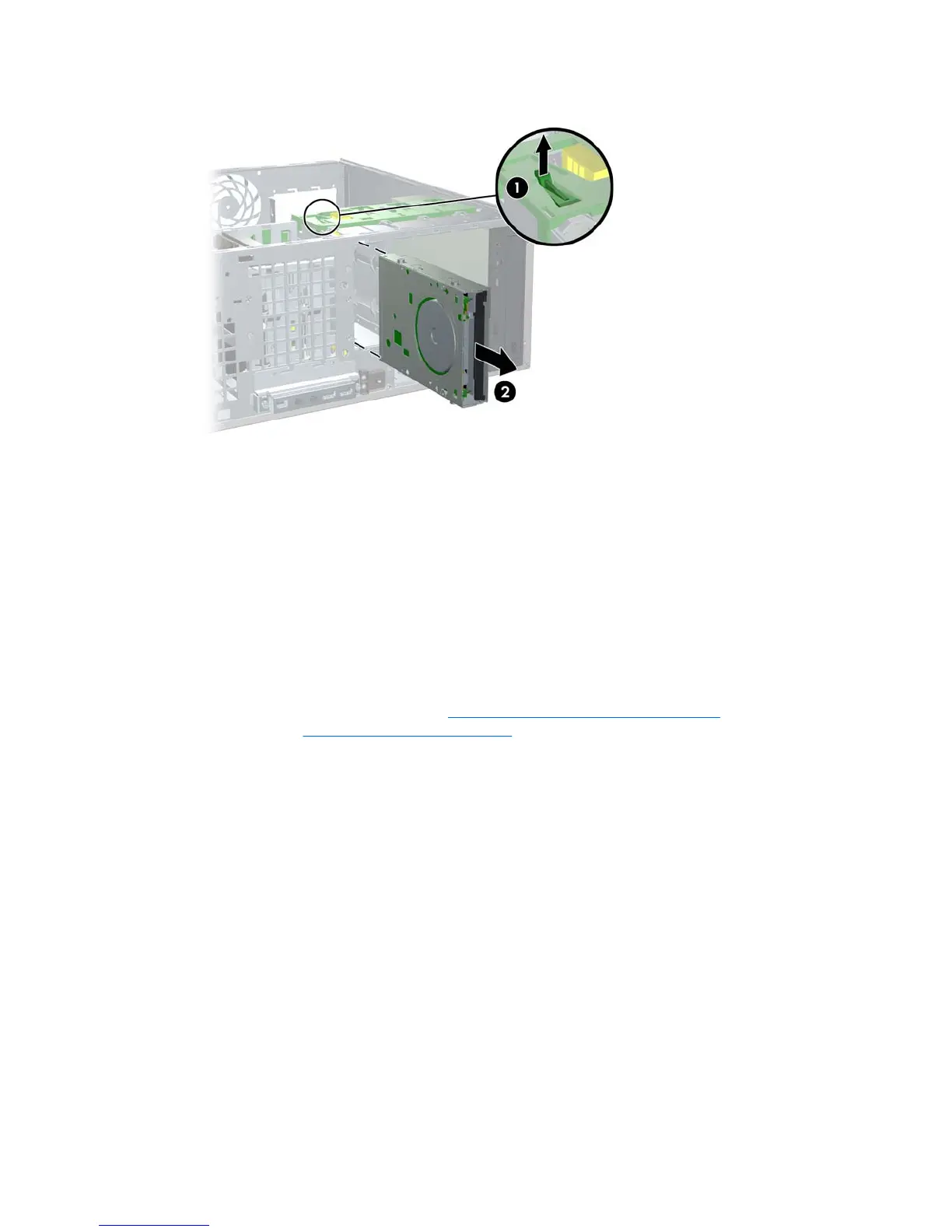

Figure 4-41 Removing the diskette drive from the chassis
To replace a diskette drive:
1. Align the metal protrusions on the side of the drive with the grooves in the diskette drive bay and
slide the diskette drive into the bay until it stops.
2. Connect the data cable to the diskette drive 1 and to the system board 2.
3. Connect the cables to the back of the diskette drive.
SAS hard drive
To remove a hard drive:
1. Disconnect power from the system (
Predisassembly procedures on page 60) and remove the side
access panel (
Side access panel on page 66).
ENWW Steps for removal and replacement of components 91
