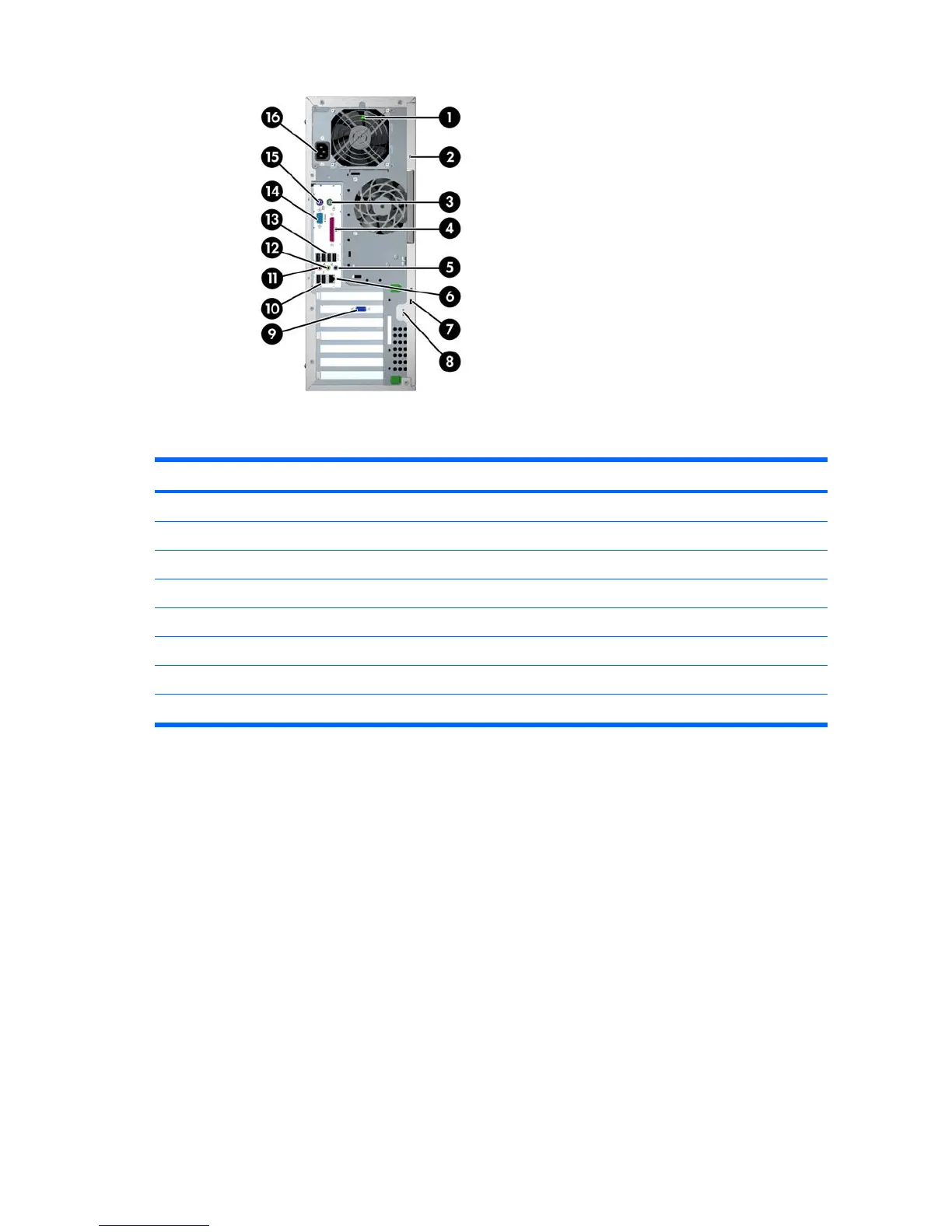

Figure 1-3 Rear panel components
Table 1-3 Rear panel components
Item Description Item Description
1 Power supply Built-In Self Test (BIST) LED 9 Graphics adapter
2 Universal chassis clamp opening 10 USB 2.0 (x2)
3 PS/2 mouse connector (green) 11 Microphone connector (pink)
4 Parallel connector (burgandy) 12 Audio line-out connector (lime)
5 Audio line-in connector (light blue) 13 USB 2.0 (x5)
6 RJ-45 network connector 14 Serial connector (teal)
7 Cable lock slot 15 PS/2 keyboard connector
8 Padlock loop 16 Power cord connector
The rear panel connectors are labeled with industry-standard icons and colors to assist you in connecting your peripheral
devices.
Serial number and COA label location
Each workstation has two unique serial number labels 1 and a Certificate of Authentication (COA)
label 2 (for Windows preinstalled systems only). In general, the serial number labels can be found on
the top panel or on the side of the unit and at the rear of the unit. Keep this number available when
contacting customer service for assistance.
4 Chapter 1 Product overview ENWW
