HP xw4400 Service And Technical Reference Guide

To install a PCI card:
1. Disconnect power from the system (
Predisassembly procedures on page 60), remove the side
access panel (
Side access panel on page 66), and remove the PCI retainer (PCI retainer
on page 77), if installed.
2. Lift the PCI levers 1 by first pressing down and then up.
3. Remove the PCI slot cover 2.
4. Lower the PCI 3 card into the chassis. Verify that the keyed components of the card align with the
socket.
5. Close the PCI retention clamp 4 by rotating the clamp downward and pushing on the two green
snaps down from the rear panel of the chassis.

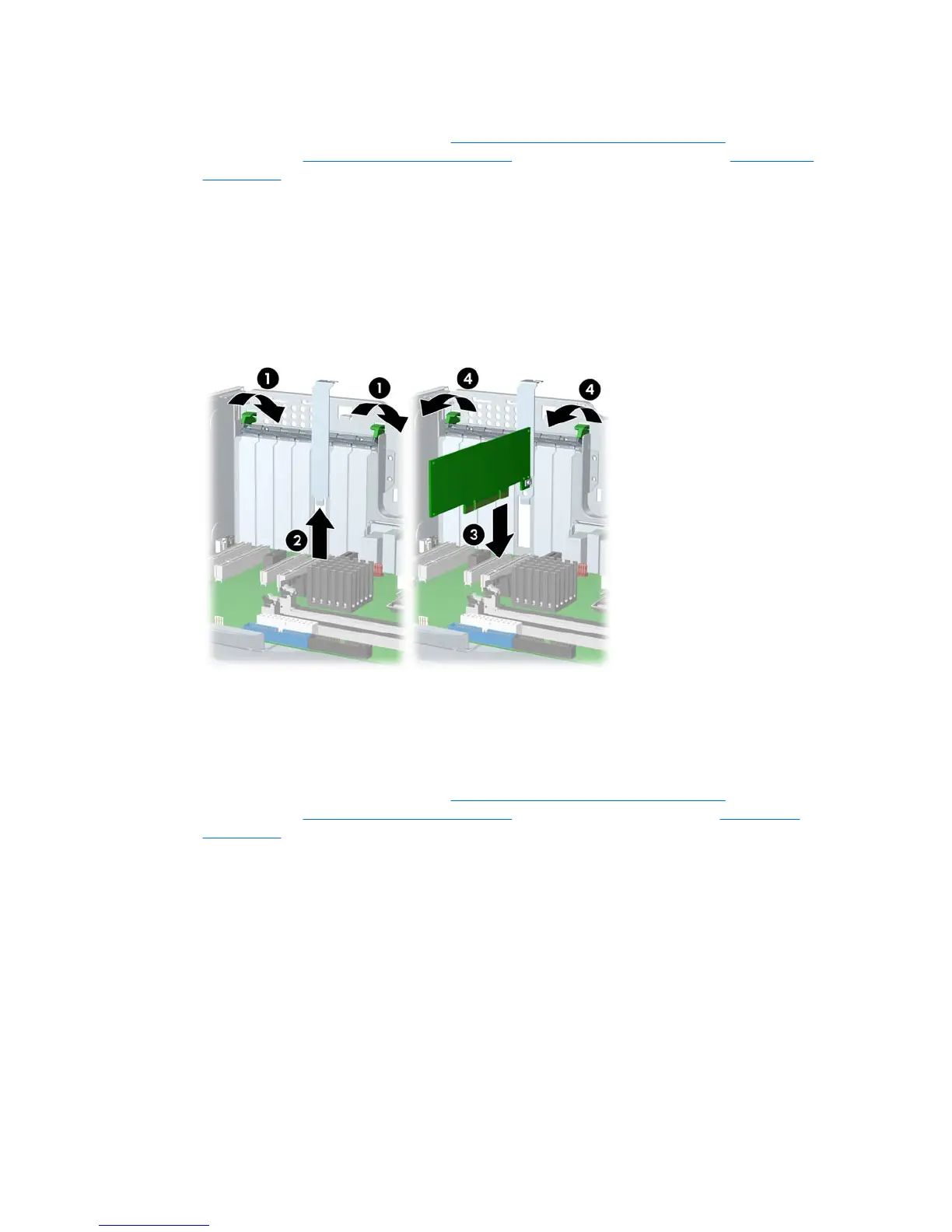

Figure 4-26 Installing the PCI card
IEEE-1394 (optional)
To remove an IEEE-1394 card:
1. Disconnect power from the system (
Predisassembly procedures on page 60), remove the side
access panel (
Side access panel on page 66), and remove the front bezel (Front Bezel
on page 67).
2. Lift the PCI levers 1 by first pressing down and then up.
3. Disconnect the front I/O cable and power cable 2 from the card.
4. Lift the IEEE card 3 out of the chassis. Store the card in an anti-static bag.
ENWW Steps for removal and replacement of components 81

HP xw4400 Specifications

General

Processor	Intel Core 2 Duo
Chipset	Intel 975X
Memory	Up to 8 GB DDR2
Storage	SATA 3.0 Gb/s
Graphics	NVIDIA Quadro FX series
Operating System	Windows XP Professional
Expansion Slots	1 PCI Express x16, 1 PCI Express x1, 3 PCI
Ports	6 USB 2.0, 2 PS/2, 1 serial, 1 parallel, 1 RJ-45
Optical Drive	DVD-ROM
