5. Connect the data cable from the hard drive 1 to the serial ATA port 2. SATA0 port is shown in the
following illustration.
●
Connect SATA 0 to SATA0.
●
Connect SATA 1 to SATA1.

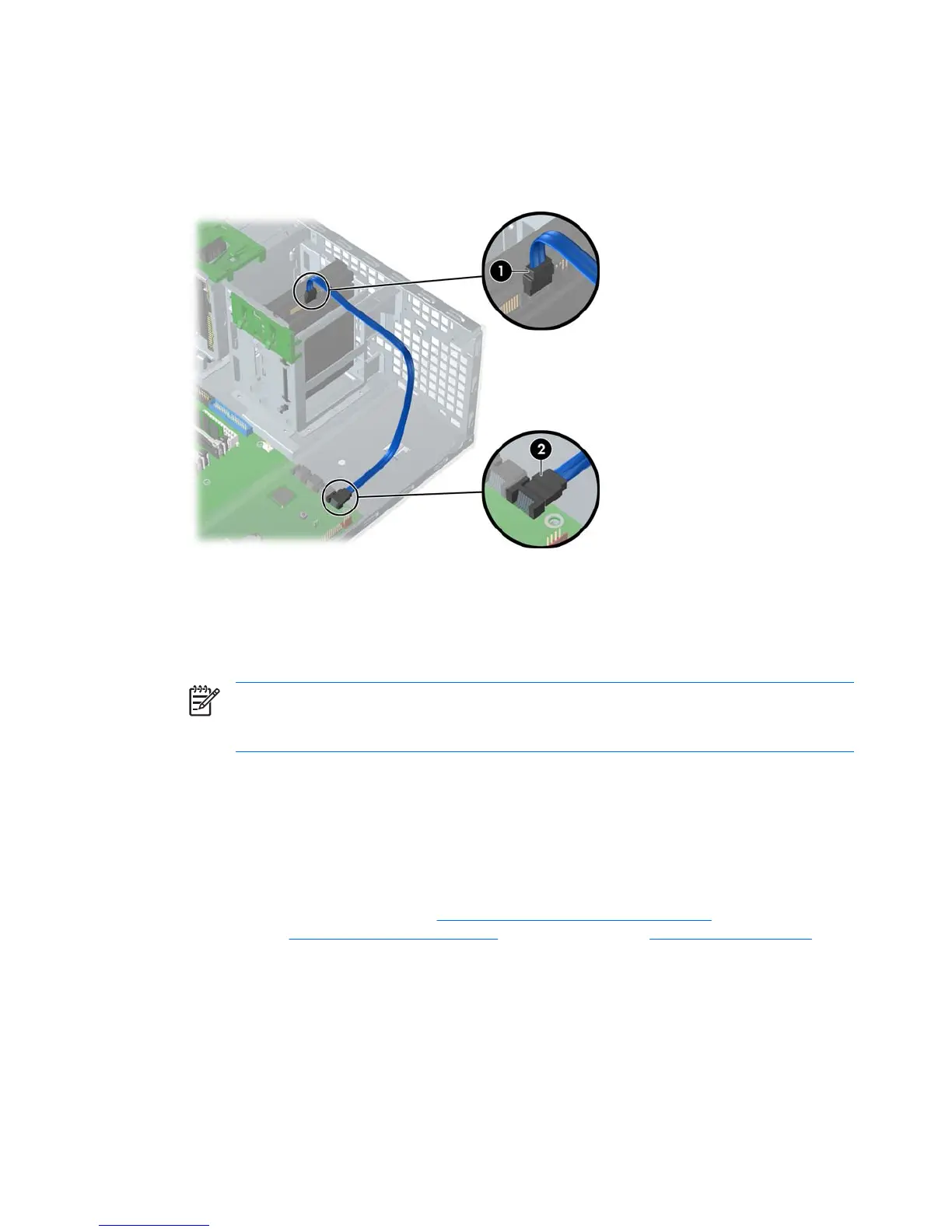

Figure 4-50 Connecting the SATA cable to the hard drive
To install three to four SATA hard drives:
1. Follow the instructions for installing two SATA hard drives above.
2. Follow the instructions for installing the hard drive into the optical drive slot.
NOTE If installing three SATA hard drives, you must install hard drives in at least one
optical drive bay. If installing four SATA hard drives, you must install hard drives in at least
two optical drive bays.
3. Connect the data and power cable to the drives.
●
Connect SATA 2 to SATA2.
●
Connect SATA 3 to SATA3.
Installing hard drives in the optical drive bays (optional)
1. Disconnect power from the system (Predisassembly procedures on page 60), remove the side
access panel (
Side access panel on page 66), and the front bezel (Front Bezel on page 67).
96 Chapter 4 Removal and replacement procedures ENWW

HP xw4400 Specifications

General

Processor	Intel Core 2 Duo
Chipset	Intel 975X
Memory	Up to 8 GB DDR2
Storage	SATA 3.0 Gb/s
Graphics	NVIDIA Quadro FX series
Operating System	Windows XP Professional
Expansion Slots	1 PCI Express x16, 1 PCI Express x1, 3 PCI
Ports	6 USB 2.0, 2 PS/2, 1 serial, 1 parallel, 1 RJ-45
Optical Drive	DVD-ROM
