HP xw4400 Service And Technical Reference Guide

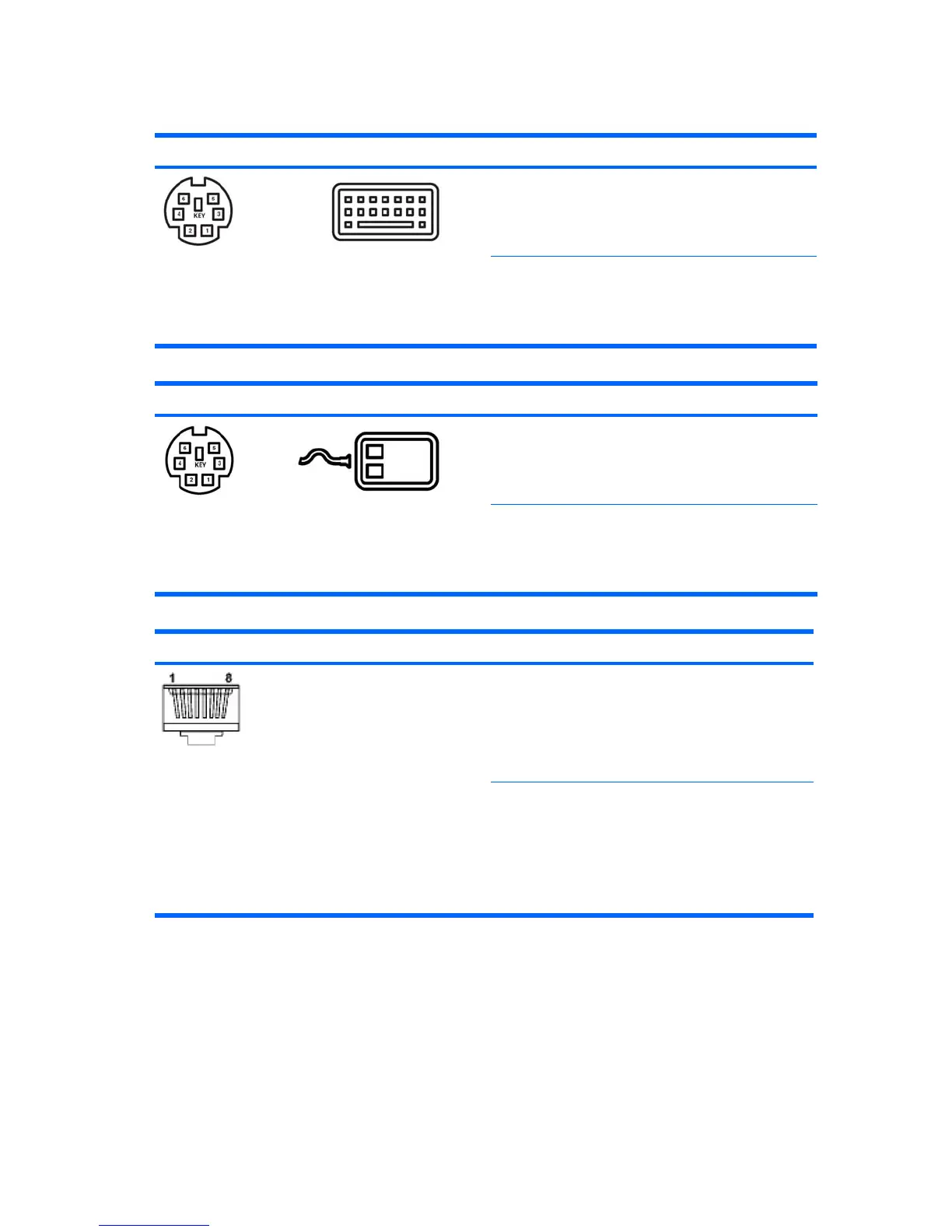

Connector pin descriptions
Keyboard connector Pin Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
Mouse connector Pin Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
Ethernet connector Pin Signal
1
2
3
4
(+) Transmit Data
(-) Transmit Data
(+) Receive Data
Unused
5
6
7
8
Unused
(-) Receive Data
Unused
Unused
158 Appendix C Appendix C — Connector pins ENWW

HP xw4400 Specifications

General

Processor	Intel Core 2 Duo
Chipset	Intel 975X
Memory	Up to 8 GB DDR2
Storage	SATA 3.0 Gb/s
Graphics	NVIDIA Quadro FX series
Operating System	Windows XP Professional
Expansion Slots	1 PCI Express x16, 1 PCI Express x1, 3 PCI
Ports	6 USB 2.0, 2 PS/2, 1 serial, 1 parallel, 1 RJ-45
Optical Drive	DVD-ROM
