HP xw4400 Service And Technical Reference Guide

Cable lock (optional)
If a cable lock is installed, remove it before servicing the unit. To remove the cable lock, unlock it and
pull it out of the cable lock slot as shown in the following image.

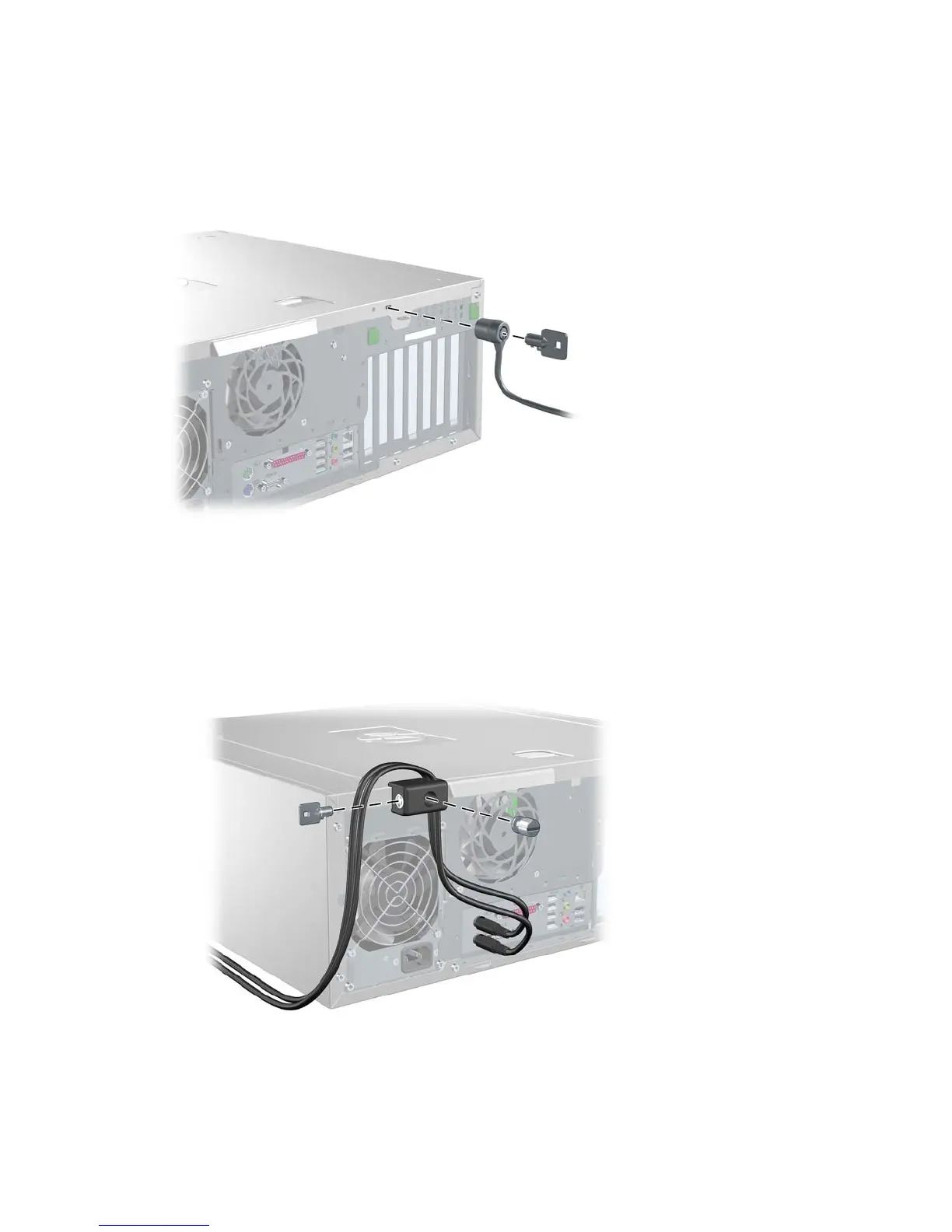

Figure 4-5 Removing the cable lock
Universal chassis clamp lock (optional)
If a universal chassis clamp lock is installed, remove it before servicing the unit.
To remove the lock:
1. Unlock the device and remove the locking mechanism.
ENWW Steps for removal and replacement of components 65

HP xw4400 Specifications

General

Processor	Intel Core 2 Duo
Chipset	Intel 975X
Memory	Up to 8 GB DDR2
Storage	SATA 3.0 Gb/s
Graphics	NVIDIA Quadro FX series
Operating System	Windows XP Professional
Expansion Slots	1 PCI Express x16, 1 PCI Express x1, 3 PCI
Ports	6 USB 2.0, 2 PS/2, 1 serial, 1 parallel, 1 RJ-45
Optical Drive	DVD-ROM
