Optical drive (Minitower position)
To remove an optical drive:
1. Disconnect power from the system (
Predisassembly procedures on page 60), remove the side
access panel (
Side access panel on page 66) and remove the front bezel (Front Bezel
on page 67).
2. Disconnect the audio 1, data 2, and power 3 cables from the drive. The connector colors might be
different than illustrated.
NOTE The audio cable is only required for Linux-based systems.

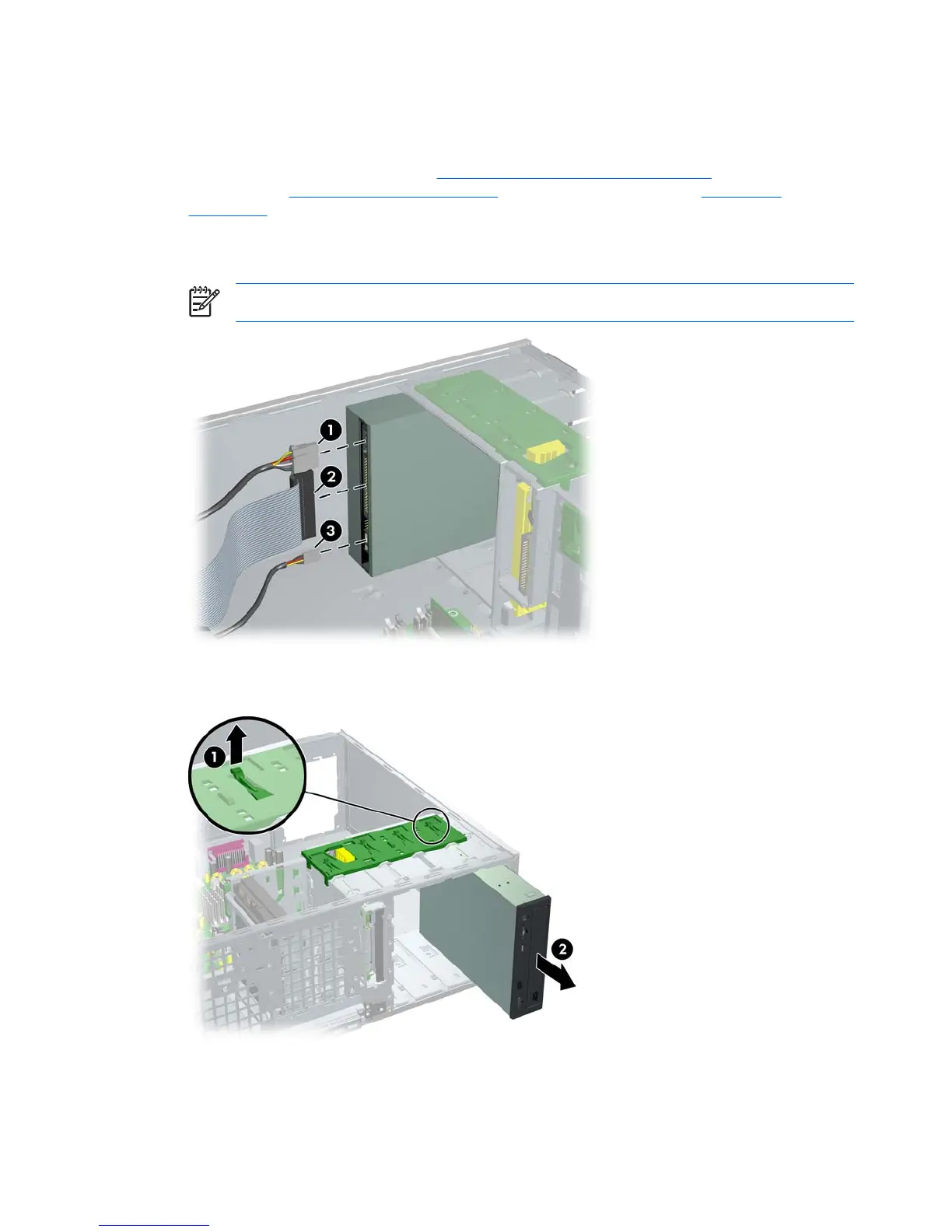

Figure 4-32 Disconnecting the cables from the optical drive
3. Lift the green drive-lock release lever 1 and gently slide the drive 2 out of the chassis.
Figure 4-33 Removing the optical drive from the chassis
86 Chapter 4 Removal and replacement procedures ENWW
