3. Lift up on the green drive-lock release tab 1 and slide the hard drive 2 out of the chassis.

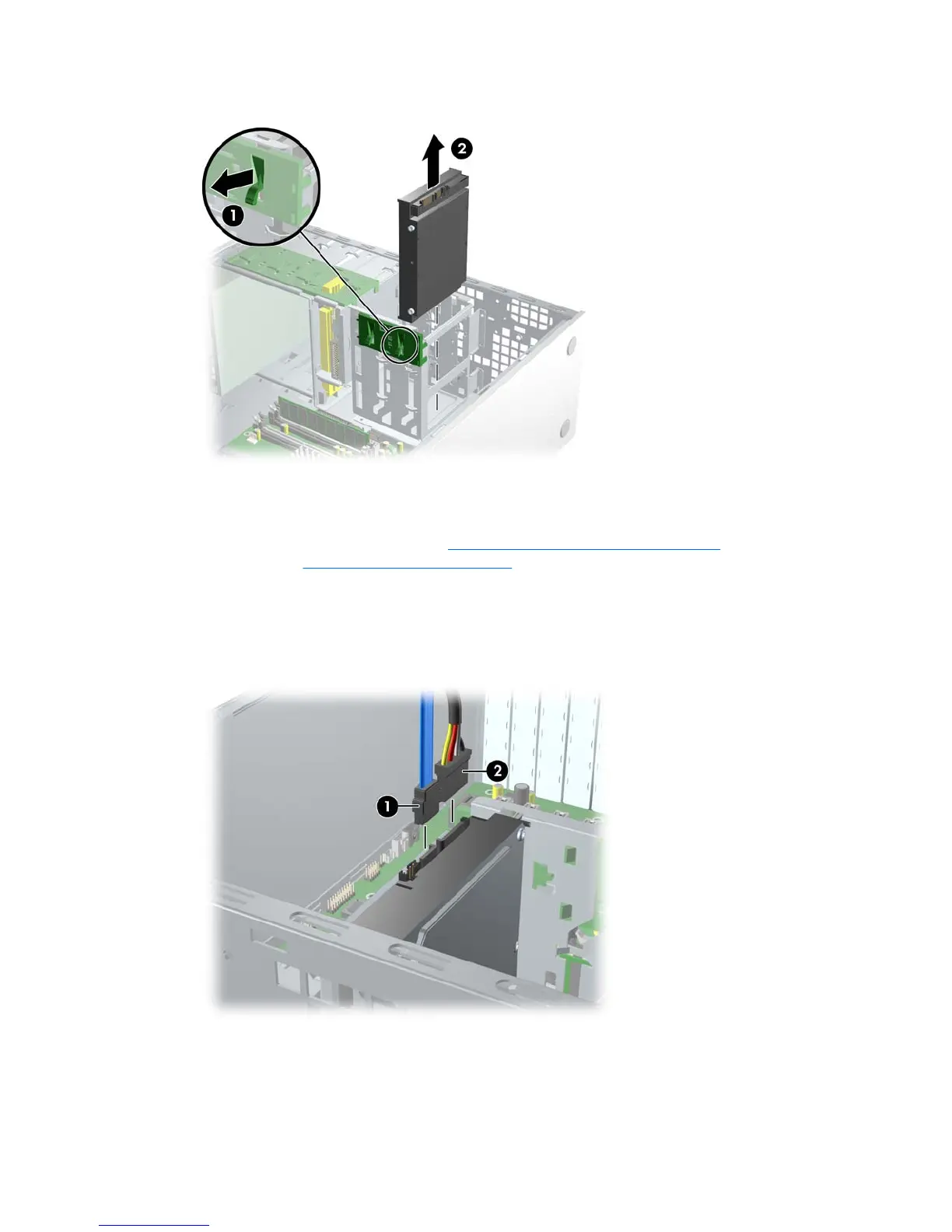

Figure 4-48 Removing the hard drive
To install one or two SATA hard drives:
1. Disconnect power from the system (
Predisassembly procedures on page 60) and remove the side
access panel (
Side access panel on page 66).
2. Select a drive bay in which to install the drive.
3. Push the drive into the selected bay until it snaps into place.
4. Attach the data 1 and power 2 cables to the drive.
Figure 4-49 Installing the SATA hard drive
ENWW Steps for removal and replacement of components 95
