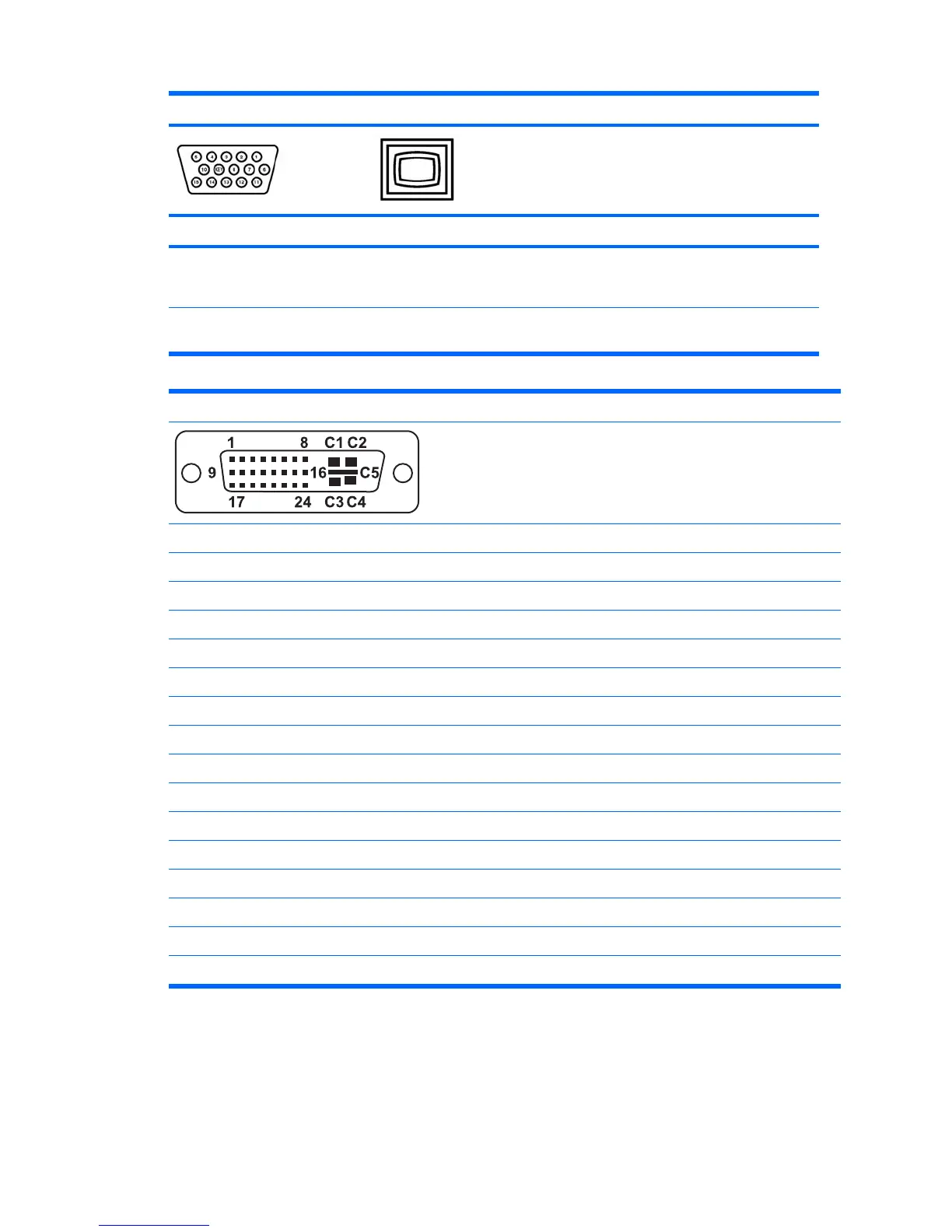

VGA connector
Pin Signal Pin Signal Pin Signal
1 2 3 Red Analog Green
Analog Blue
Analog
6 7 8 Ground
Ground
Ground
11 12
13
Monitor ID DDC Serial
Data Horizontal Sync
4 5 Monitor ID Ground 9 10 +5V DC
Ground
14 15 Vertical Sync DDC
Serial Clock
DVI connector
Pin Signal Pin Signal
1 T.M.D.S DATA 2- 16 HOT PLUG DETECT
2 T.M.D.S DATA 2+ 17 T.M.D.S DATA 0-
3 T.M.D.S DATA 2/4 SHIELD 18 T.M.D.S DATA 0+
4 T.M.D.S DATA 4- 19 T.M.D.S DATA 0/5 SHIELD
5 T.M.D.S DATA 4+ 2 0 T.M.D.S DATA 5-
6 DDC CLOCK 21 T.M.D.S DATA 5+
7 DDC DATA 22 T.M.D.S CLOCK SHIELD
8 ANALOG VERT. SYNC 23 T.M.D.S CLOCK+
9 T.M.D.S DATA 1- 24 T.M.D.S CLOCK-
10 T.M.D.S DATA 1+
11 T.M.D.S DATA 1/3 SHIELD C1 ANALOG RED
12 T.M.D.S DATA 3- C2 ANALOG GREEN
13 T.M.D.S DATA 3+ C3 ANALOG BLUE
14 +5V POWER C4 ANALOG HORZ SYNC
15 GND C5 ANALOG GROUND
ENWW Connector pin descriptions 163
