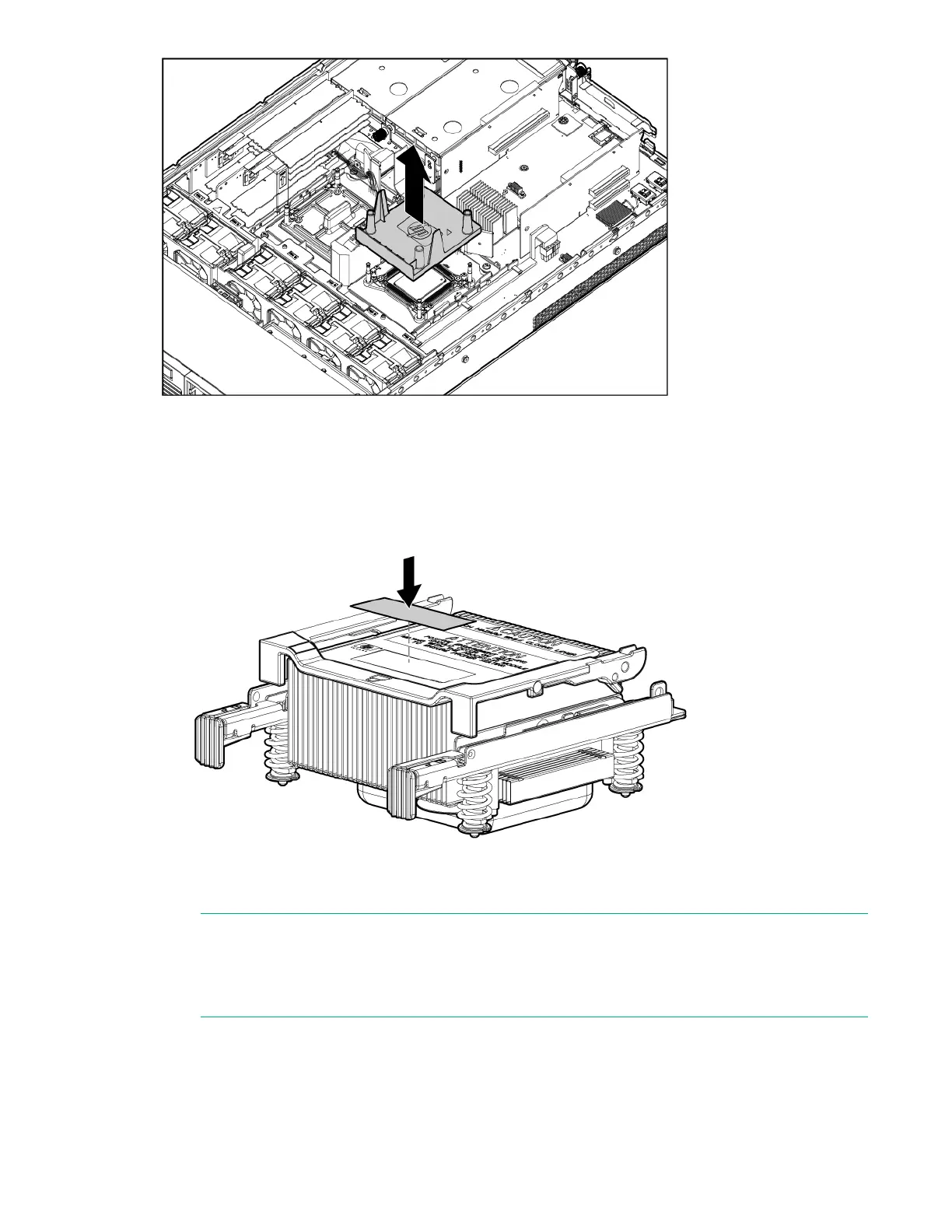

3. Transfer the duplicate part/serial numbers label from the processor module to the processor heat sink:
a. Remove the duplicate tear-away label that lists the part and serial numbers from the processor
module.
b. Place the label on the top of the heat sink.
4. Install the processor over the load posts.
NOTE:
Ensure pin 1, indicated on the empty socket with an embossed triangle, matches the pin 1
marker on the processor module, the chamfered corner of its attached voltage regulator heat
sink.
5. Remove the heat sink cover.
Optional components 71
