Ports
Table 2-5 describes the ports on the NetCol5000-A.
Table 2-5 Ports
Port Description
Refrigerant liquid
pipe
Flaring copper pipe inner diameter: 5/8 inch, soldered.
Refrigerant gas pipe Flaring copper pipe inner diameter: 7/8 inch, soldered.
Pump drainpipe Reserved: 1/2 inch BSPP (British Standard Pipe Parallel)
screw thread connector, as shown in Figure 2-6.
Humidier water
supply pipe
Reserved: 1/2 inch BSPP screw thread connector, as
shown in Figure 2-6.
Condensate self-
drainpipe
Reserved: 1/2 inch BSPP screw thread connector, as
shown in Figure 2-6.

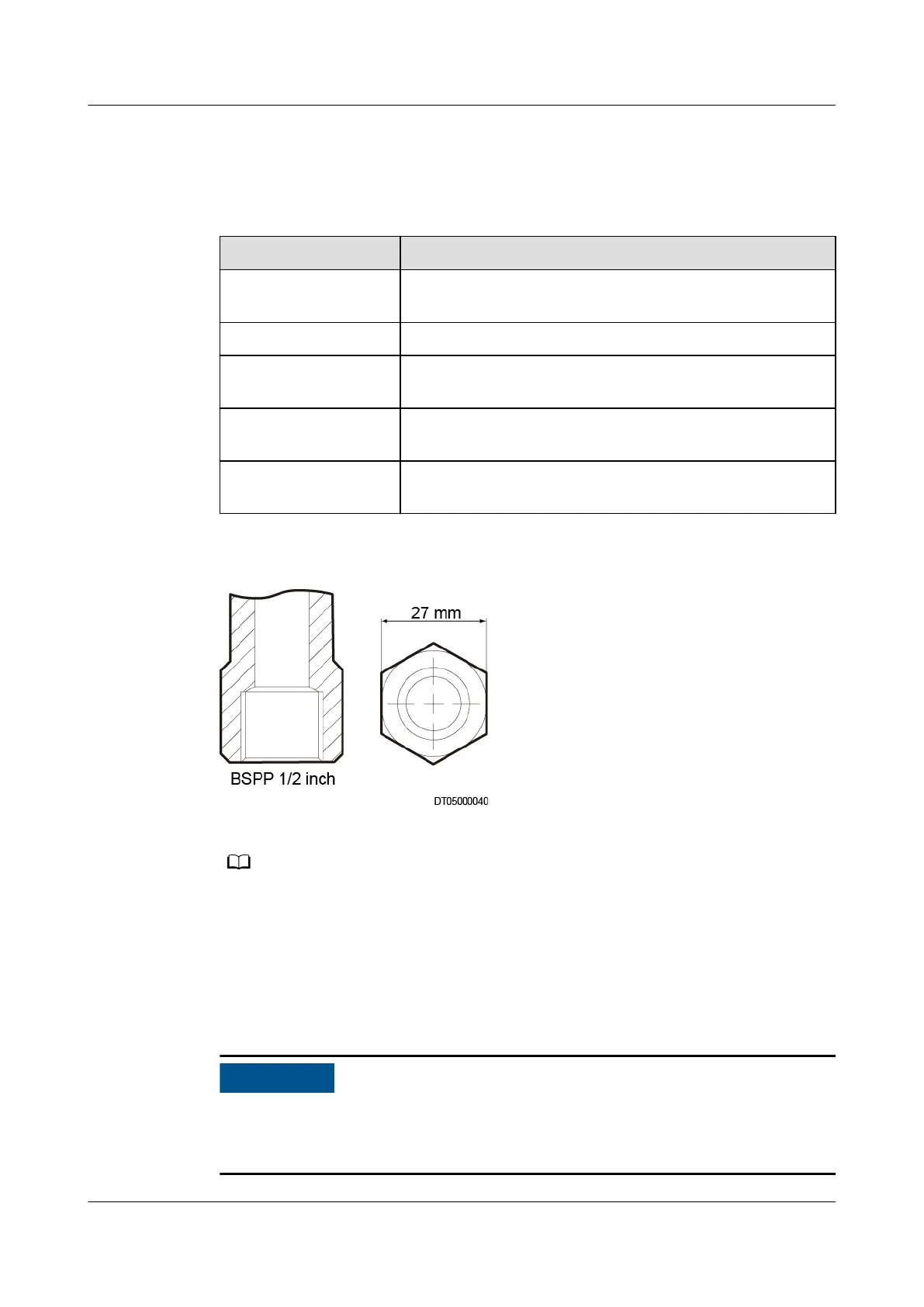

Figure 2-6 Screw thread connector
NO TE
BSPP 1/2 inch: Large diameter: 20.955 mm; medium diameter: 19.793 mm; small diameter:
18.631 mm; medium diameter tolerance: 0–0.142 mm; small diameter tolerance: 0–0.541
mm.
Installation requirements
Table 2-6 describes the installation requirements of NetCol5000-A.
NO TICE
When the total load of servers, relative to a single smart cooling product, is less
than 10 kW, the humidity might be relatively high. It has no relationship with
product quality, and you are recommended to install a
dehumidier.
NetCol5000-A(025, 035) In-row Air Cooled Smart
Cooling Product
User Manual (600 mm Width) 2 Product Description
