Number Port Inner Diameter of Port
10 Upper liquid pipe port Φ43 mm
11 Upper gas pipe port Φ43 mm
12 Upper strong electricity cable
port (for ground cables also)
Φ43 mm
13 Upper weak electricity cable port Φ18 mm
14 Upper weak electricity cable port
15 Remote upgrade cable port Φ18 mm
16 Leveling foot 4 x Φ35 mm
17 Screw port 4 x Φ18 mm
Procedure

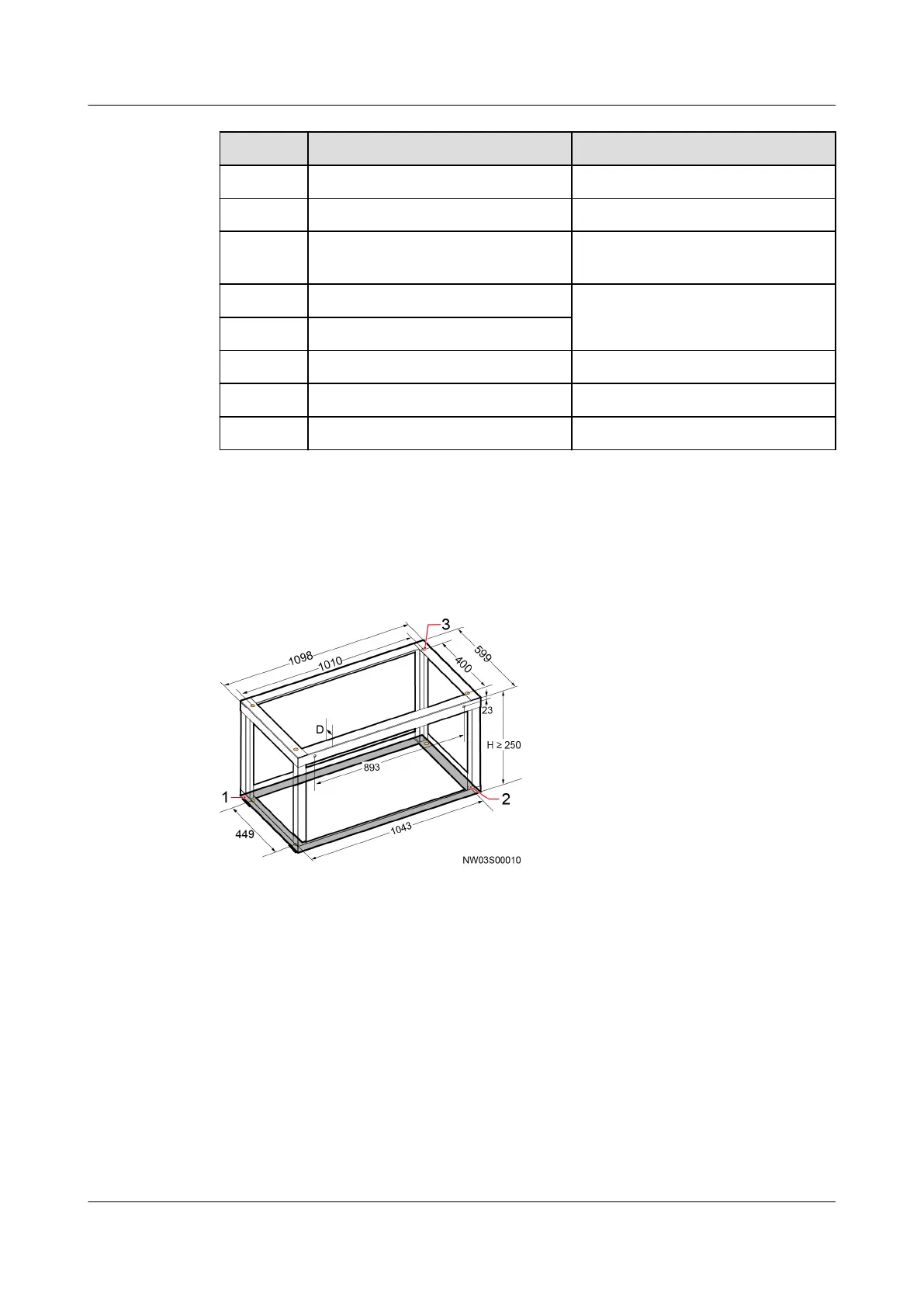

Step 1 Install the base. Figure 3-18 or Figure 3-19 show the base.
Figure 3-18 Base for the codes of 52272131 and 52272132 (unit: mm)
(1) Shock absorbing bar: 5 mm
thick, made of EPDM rubber
(2) 4 - M12x60 expansion
screw mounting hole
(3) 4 - M12x80 assembly screw
mounting hole
