Procedure
Step 1 Remove the two plugs from the pipes using a welding torch, as shown in Figure
3-25.

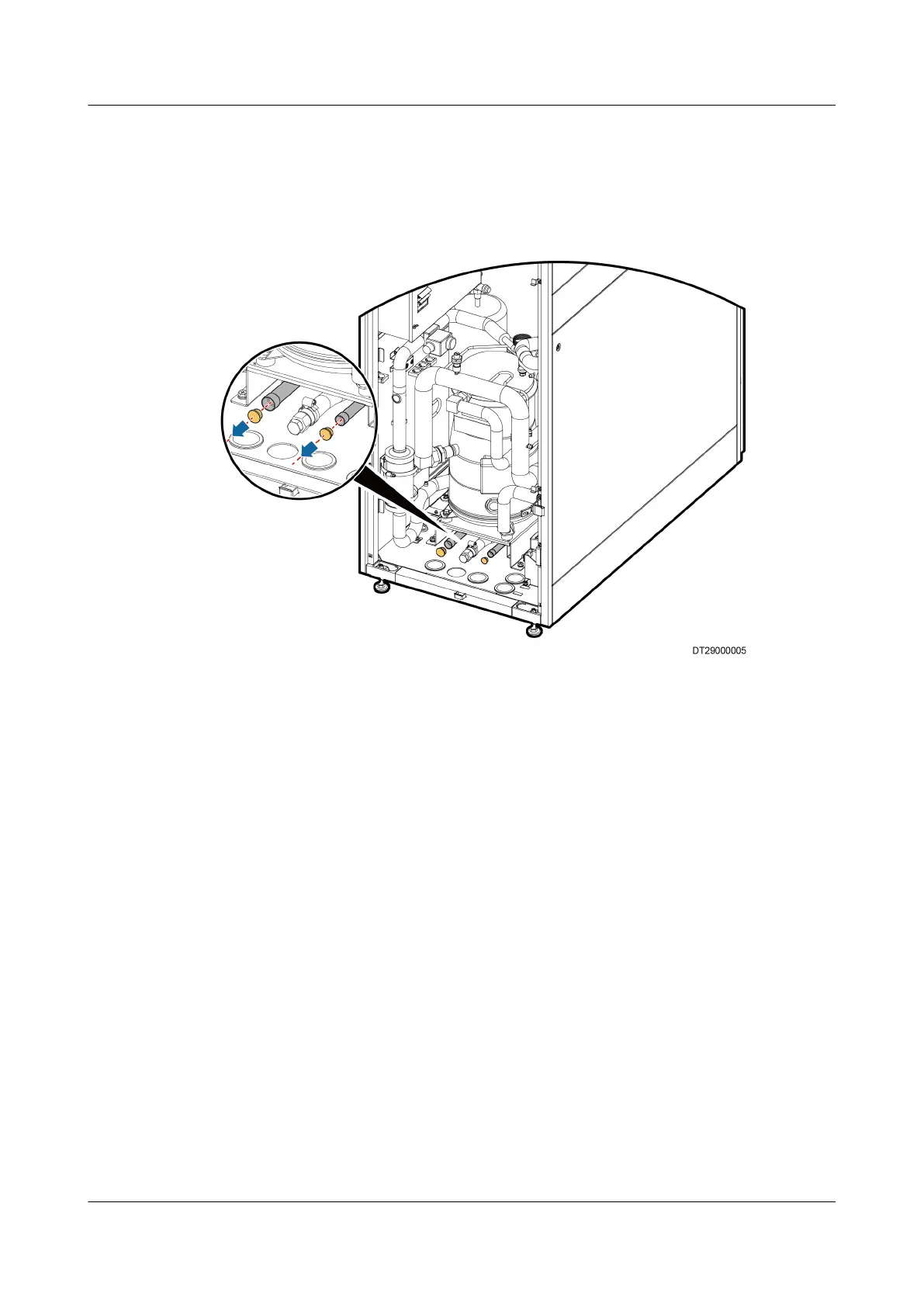

Figure 3-25 Routing pipes from the bottom
Step 2 Take two 90° bent copper pipes among the ttings.
Step 3 Weld the two pipes with the bent ends facing downwards, as shown in Figure
3-26.
NetCol5000-A(025, 035) In-row Air Cooled Smart
Cooling Product
User Manual (600 mm Width) 3 Installation Guide
Issue 17 (2020-10-22) Copyright © Huawei Technologies Co., Ltd. 54
