Huawei Quidway S1700 Series User Manual

Quidway S1700 Series Ethernet Switches
Web User Manual 12 Multicast Configuration
Issue 01 (2011-11-17) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
112

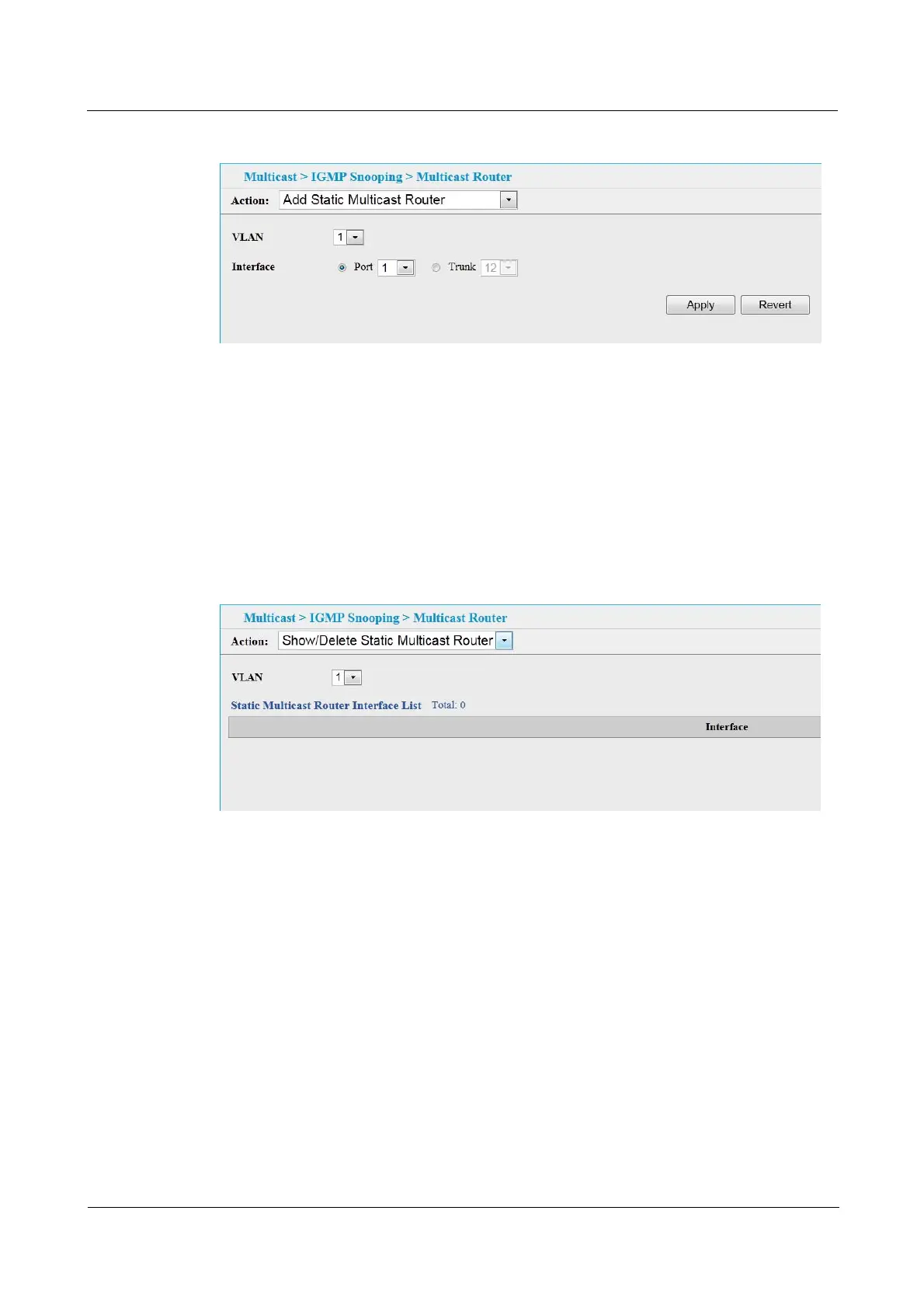

Figure 12-2 Configuring a Static Interface for a Multicast Router
----End
To show/delete the static interfaces attached to a multicast router:
1. Click Multicast, IGMP Snooping, Multicast Router.
2. Select Show/delete Static Multicast Router from the Action list.
3. Select the VLAN for which to display this information.
Figure 12-3 Showing/Deleting Static Interfaces Attached a Multicast Router
----End
To show the all interfaces attached to a multicast router:
1. Click Multicast, IGMP Snooping, Multicast Router.
2. Select Current Multicast Router from the Action list.
3. Select the VLAN for which to display this information.
