Quidway S1700 Series Ethernet Switches
Web User Manual 8 Rate Limit Configuration
Issue 01 (2011-11-17) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
65

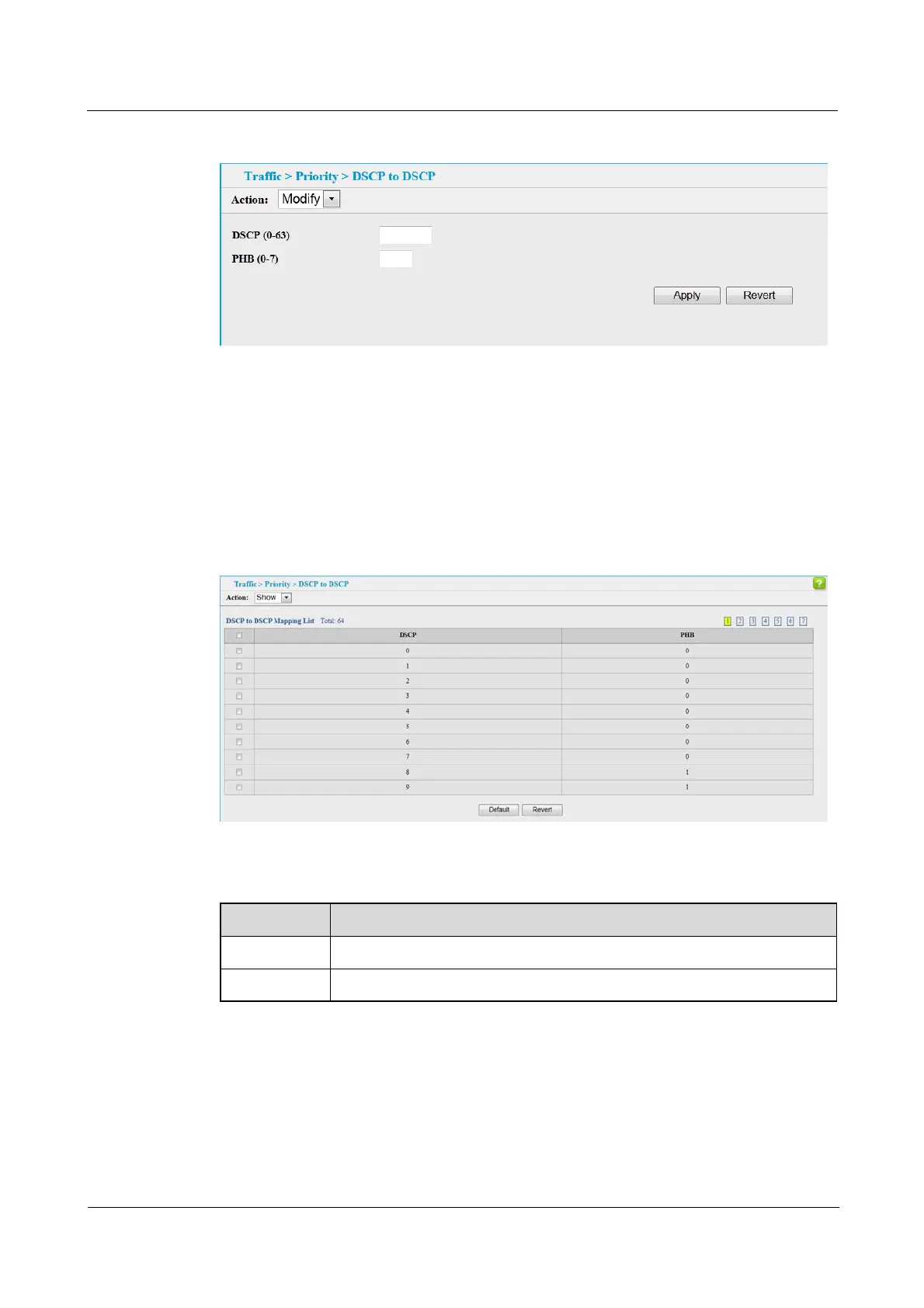

Figure 8-8 Configuring DSCP to DSCP Internal Mapping
----End
To show the DSCP to internal PHB map:
1. Click Traffic, Priority, DSCP to DSCP.
2. Select Show from the Action list.
Figure 8-9 Showing DSCP to DSCP Internal Mapping
Table 8-6 Parameters of DSCP to DSCP Internal Mapping
Title Description
DSCP DSCP value in ingress packets. (Range: 0-63)
PHB
Per-hop behavior, or the priority used for this router hop.(Range: 0-7)
----End
8.3.5 Mapping CoS Priorities to Internal DSCP Values
Use the Traffic > Priority > CoS to DSCP page to map CoS/CFI values in incoming packets to
per-hop behavior for priority processing.
