8.4.3 Configuring VoIP Traffic Ports
Use the Traffic > Voice VLAN (Configure Interface) page to configure ports for VoIP traffic,
you need to set the mode (Auto or Manual), specify the discovery method to use, and set the
traffic priority. You can also enable security filtering to ensure that only VoIP traffic is
forwarded on the Voice VLAN.
All ports are set to VLAN access mode by default. Prior to enabling VoIP for a port (by
setting the VoIP mode to Auto or Manual as described below), first set the VLAN membership
mode to hybrid.
To configure VoIP traffic settings for a port:
1. Click T raffic, Voice VLAN.
2. Select Configure Interface from the Step list.
3. Configure any required changes to the VoIP settings each port.
4. Click Apply.

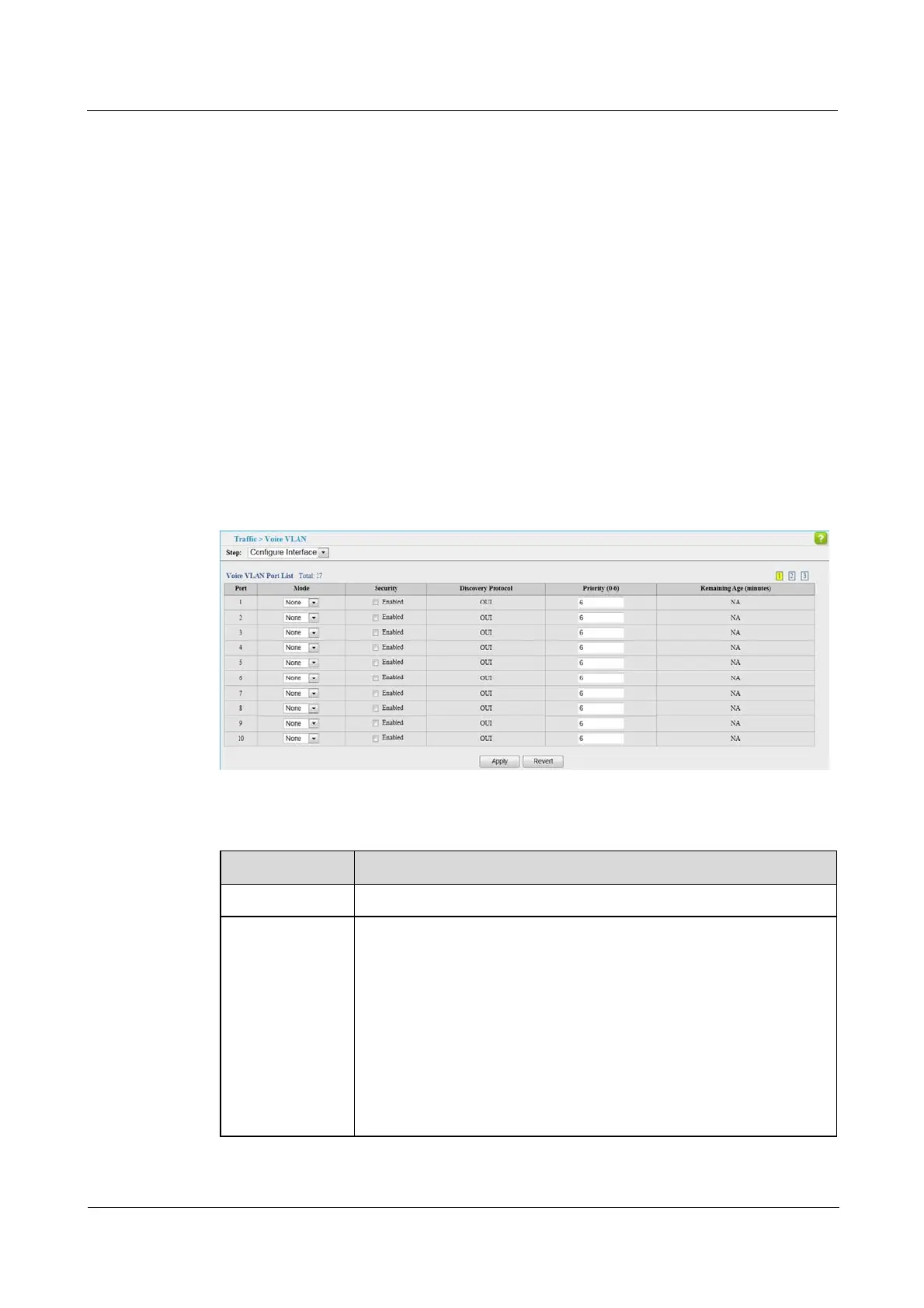

Figure 8-17 Configuring Port Settings for a Voice VLAN
Table 8-13 Parameters of Configuring Port Settings for a Voice VLAN
Title Description
Port Specifies port id.
Mode Specifies if the port will be added to the Voice VLAN when VoIP traffic
is detected. (Default: None)
z
None – The Voice VLAN feature is disabled on the port. The port will
not detect VoIP traffic or be added to the Voice VLAN.
z
Auto – The port will be added as a tagged member to the Voice
VLAN when VoIP traffic is detected on the port. When OUI is
selected, be sure to configure the MAC address ranges in the
Telephony OUI list.
z
Manual – The Voice VLAN feature is enabled on the port, but the port
must be manually added to the Voice VLAN.
