Table 4-1 Parameters of Displaying Port Information
Title Description
Port Port identifier.
Type Indicates the port type. (1000Base-T, 1000Base SFP)
Name Interface label.
Admin Shows if the port is enabled or disabled.
Oper Status Indicates if the link is Up or Down.
Media Type Media type used.
(Options: RJ-45 – Copper-Forced; SFP-Forced,; Default: RJ-45 –
Copper-Forced)
Autonegotiation Shows if auto-negotiation is enabled or disabled.
Oper Speed
Duplex
Shows the current speed and duplex mode.
Oper Flow Control Shows if flow control is enabled or disabled.
To display port connection parameters:
1. Click Interface > Port > General. Figure 4-1 is displayed.
2. Select Show Information from the Action List.
----End
Configuring by Port List
Use the Interface > Port > General (Configure by Port List) page to enable/disable an
interface, set auto-negotiation and the interface capabilities to advertise, or manually fix the
speed, duplex mode, and flow control.

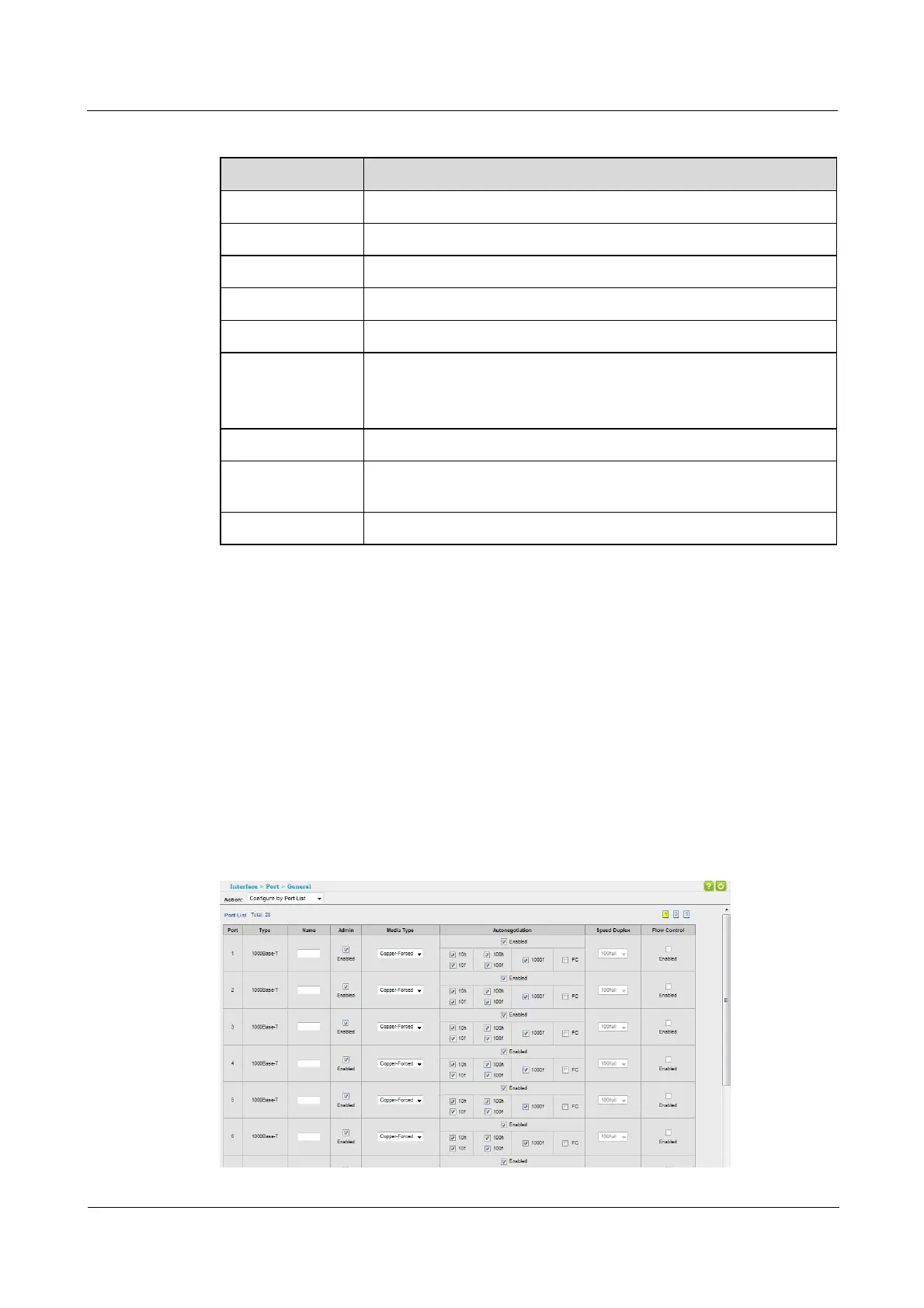

Figure 4-2 Configuring Connections by Port List
