Quidway S1700 Series Ethernet Switches
Web User Manual 5 VLAN Configuration
Issue 01 (2011-11-17) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
39
Table 5-1 Parameters of Creating Static VLANs
Title Description
VLAN ID ID of VLAN or range of VLANs (1-4093).
Up to 256 VLAN groups can be defined. VLAN 1 is the default untagged
VLAN.
3. Click Apply.
System can be configured 256 VLANs. VLAN1 is the default untagged VLAN.
----End
5.1.2 Adding Static Members to VLANs
Use the VLAN > Static (Edit Member By Vlan), Edit Member by Interface, or Edit Member
by Interface Range) pages to configure port members for the selected VLAN index, interface,
or a range of interfaces. Use the menus for editing port members to configure the VLAN
behavior for specific interfaces, including the mode of operation (Hybrid, 1Q Trunk or
Access ), the default VLAN identifier (PVID), accepted frame types, and ingress filtering.
Assign ports as tagged if they are connected to 802.1Q VLAN compliant devices, or untagged
they are not connected to any VLANaware devices.
5.1.3 Modify VLAN
1. Click VLAN > Static. Select Modify from the Action list. Figure 5-2 is displayed.

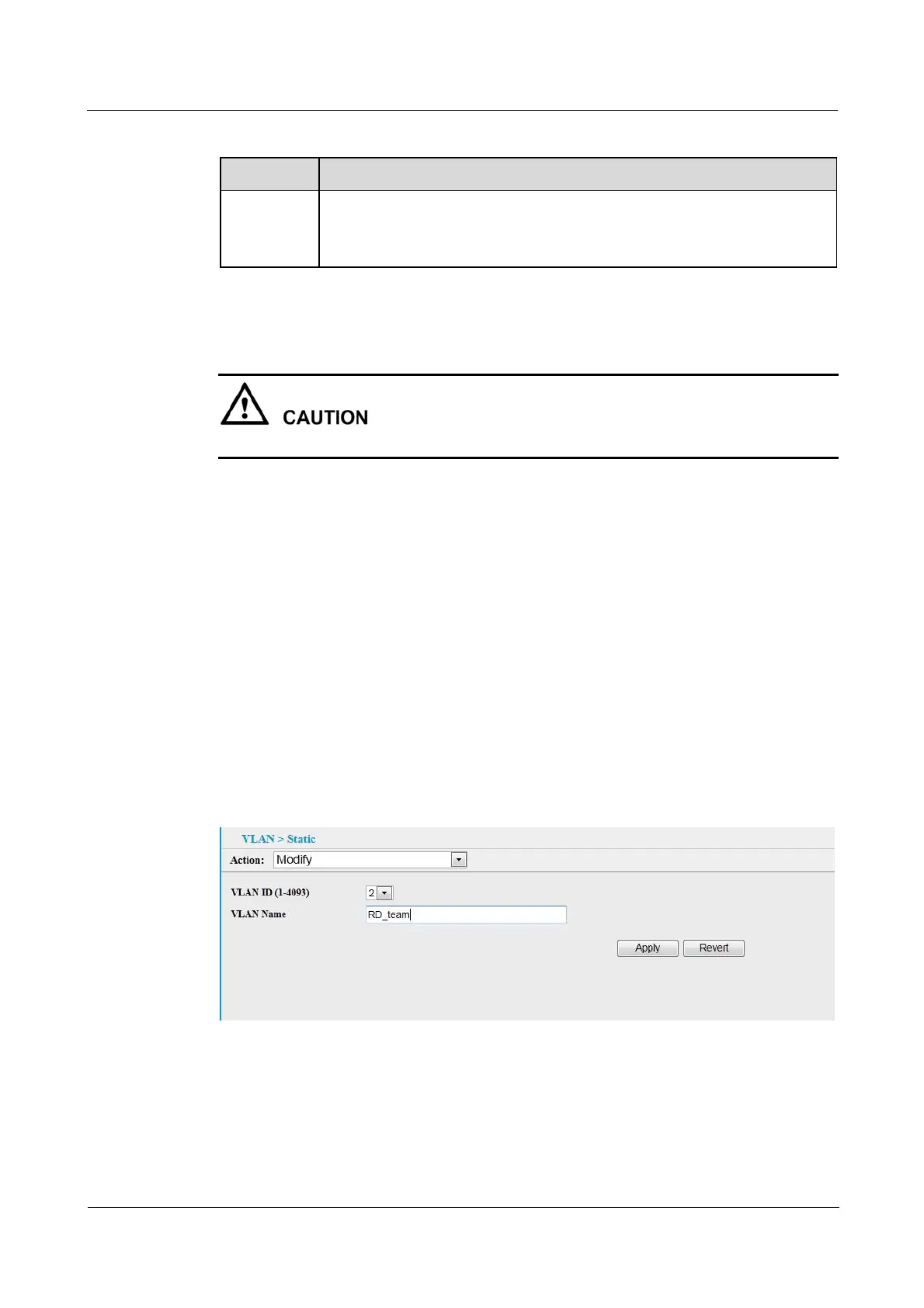

Figure 5-2 Modifying Static VLAN
2. Select the VLAN ID need to modify. Enter a VLAN Name. See Table 5-2.
