Web User Manual 5 VLAN Configuration
Issue 01 (2011-11-17) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
40
Table 5-2 Parameters of modifying VLAN
Title Description
VLAN ID ID of VLAN or range of VLANs (1-4093).
Up to 256 VLAN groups can be defined. VLAN 1 is the default untagged
VLAN.
VLAN Name Name of the VLAN.
3. Click Apply.
----End
5.1.4 Edit/Show Member by VLAN
1. Click VLAN > Static. Select Edit/Show Member by VLAN from the Action list. Figure 5-3 is
displayed.

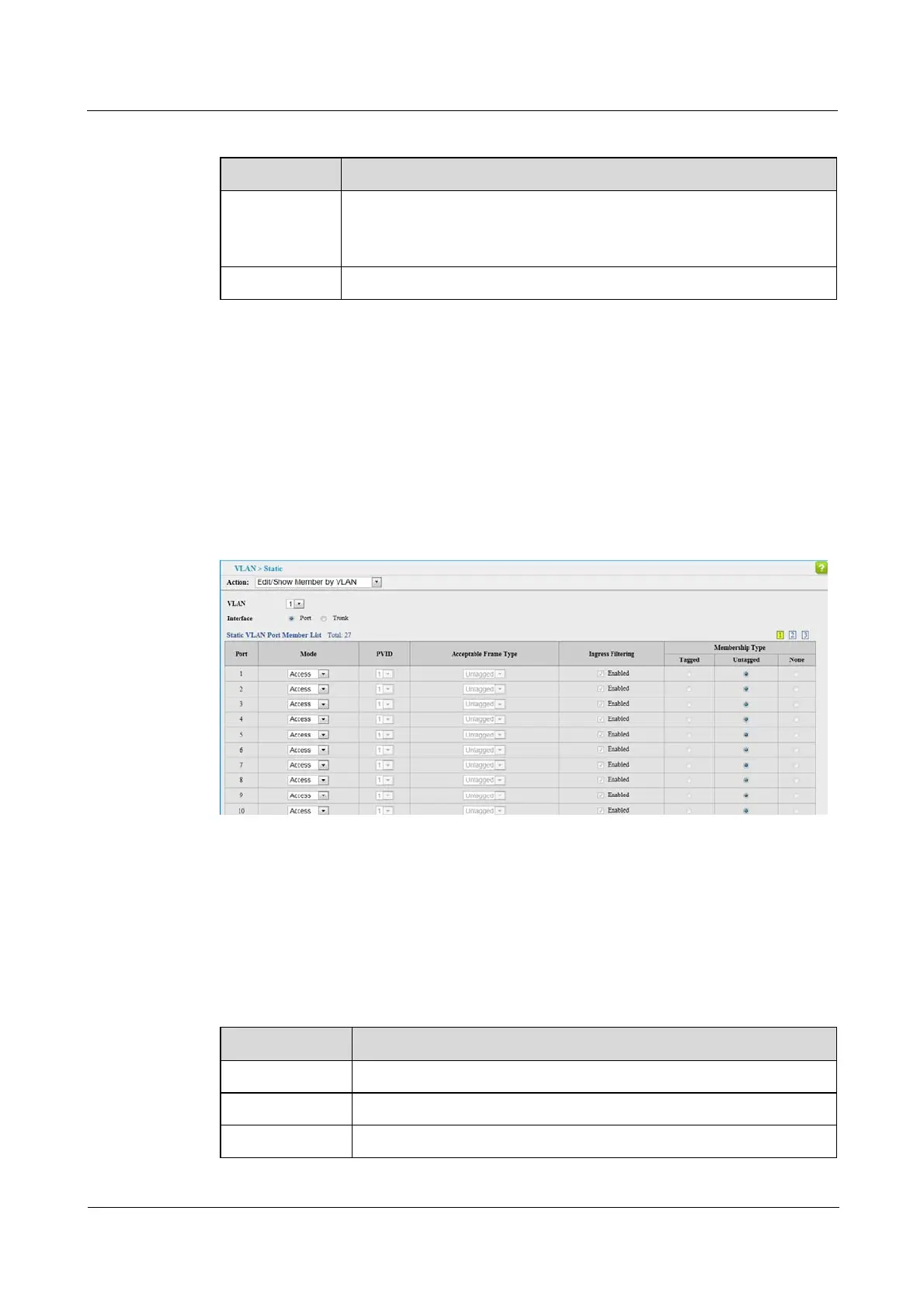

Figure 5-3 Editing/Showing Static Members by VLAN Index
2. Set the Interface type to display as Port or Trunk.
3. Modify the settings for any interface as required. Remember that Membership Type cannot be
changed until an interface has been added to another VLAN and the PVID changed to
anything other than 1. SeeTable 5-3.
4. Click Apply.
Table 5-3 Parameters of Configuring Static Members by VLAN Index
Title Description
VLAN ID of configured VLAN (1-4093).
Interface Displays a list of ports or trunks.
Port Port Identifier(1-28).
