Quidway S1700 Series Ethernet Switches
W
eb User Manual
5 VLA
N Configuration
Issue 01 (2011-1
1-17
)
Huawei Propr
ietary and Confidential
Copyright © H
uawei Technologies Co., Ltd
44

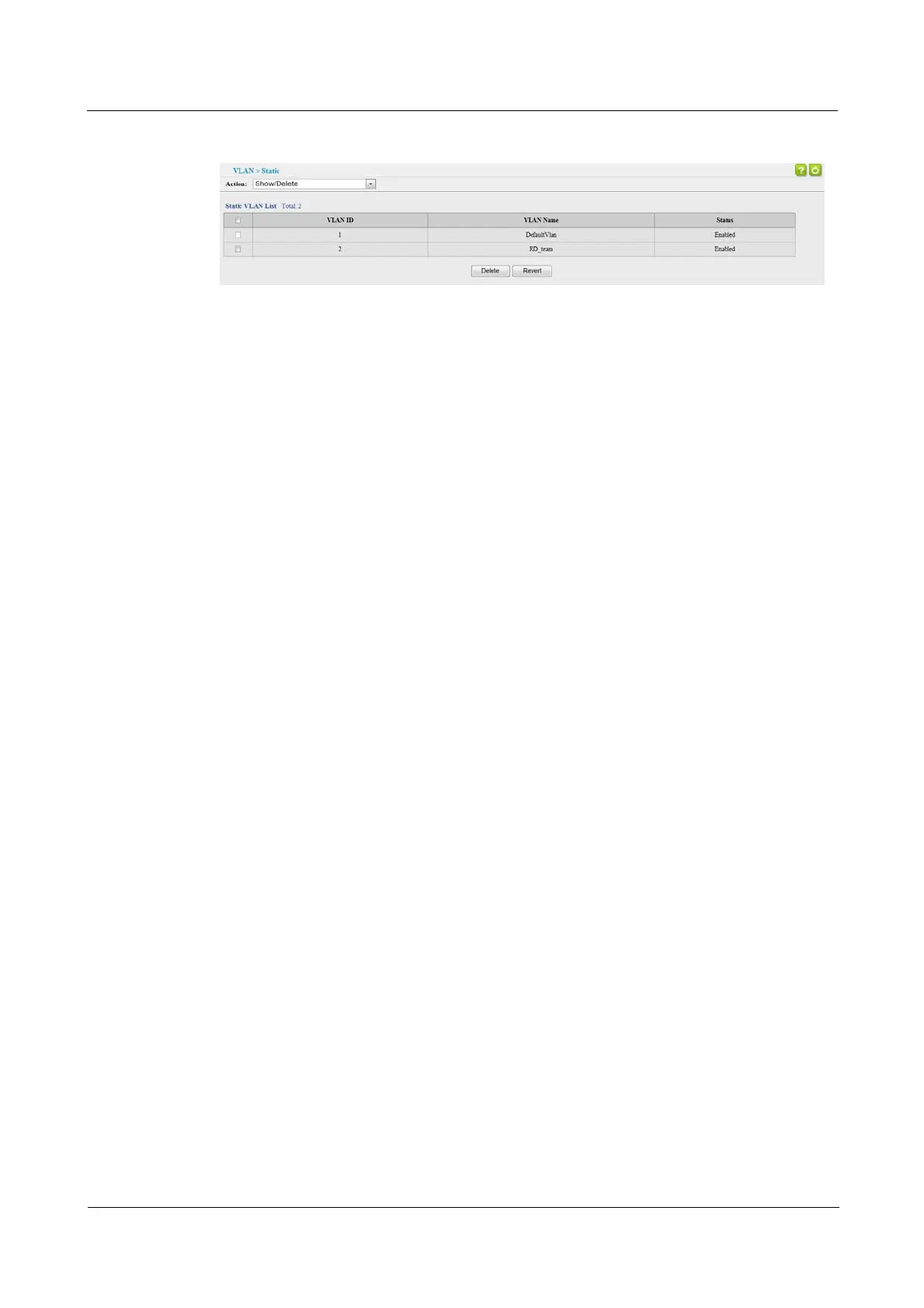

Figure 5-
6
Showing/Deleting Static VLANs
2.
Select the VLAN ID need to be d
eleted, and then click Delte
to delete the static VLAN.
----End
48
50
Table of Contents
Default Chapter
3
Table of Contents
3
1 WEB Configuration
6
Logging in to the Web Interface
6
Background Information
6
Connecting to the Web Interface
6
Navigating the Web Browser Interface
7
Home Page
7
Navigation Tree
8
Buttons
10
Common Interface Elements
10
Idle-Time
11
Save Configuration
11
Logout
11
2 Site Map
13
Panel Display
13
Displaying Switch Information
14
Switch Health
14
3 System Management
16
Setting System General Information
16
Setting the Switch's IP Address
17
Managing System Files
19
Upgrade Firmware
19
Setting the Start-Up File
20
Showing/Deleting System Files
21
Saving the Running Configuration to a Local File
22
Setting the System Clock
24
Displaying CPU Utilization
25
Displaying Memory Usage
25
Resetting the System
26
Displaying RFID
26
4 Interface Configuration
29
Port Configuration
29
General
29
Configuring by Port List
30
Configuring Local Port Mirroring
32
Showing Port Statistics
33
Performing Cable Diagnostics
34
Trunk Configuration
35
Configuring System Priority
36
Configuring a Trunk
37
Showing Trunk Statistics
39
Transceiver
40
Power Saving
41
5 VLAN Configuration
43
Configuring Static VLAN
43
Creating a Static VLAN
43
Adding Static Members to Vlans
44
Modify VLAN
44
Edit/Show Member by VLAN
45
Edit/Show Member by Interface
47
Edit/Show Member by Interface Range
47
Show/Delete Static VLAN
48
6 MAC Address Configuration
50
Setting Static Address
50
Setting Dynamic Address
52
Changing the Aging Time
52
Displaying the Dynamic Address Table
52
Clearing the Dynamic Address Table
53
7 Spanning Tree Algorithm
55
Configuring Global STP
55
Showing Global Settings for STP
57
Configuring Interface Settings for STP
59
Displaying Interface Settings for STP
61
8 Rate Limit Configuration
63
Configuring Rate Limit
63
Configuring Storm Control
64
Configuring Class of Service
65
Setting the Default Priority for Interface
65
Selecting the Queue Mode
66
Configuring Trust Mode
68
Mapping Ingress DSCP Values to Internal DSCP Values
69
Mapping Cos Priorities to Internal DSCP Values
70
Mapping PHB Values to Egress Queues
72
Configuring Voice VLAN
74
Configuring Voice VLAN OUI
75
Configuring Voip Traffic Ports
77
9 Security Measures
79
Aaa
79
Configuring Local/Remote Logon Authentication
80
Configuring Remote Logon Authentication Servers
81
Configuring User Accounts
82
Network Access
84
Filtering IP Addresses for Management Access
85
Creating a List of IP Addresses Authorized
85
Showing/Deleting a List of IP Addresses Authorized
86
Configuring Port Isolation
87
Configuring 802.1X Port Authentication
87
Configuring 802.1X Global Settings
88
Configuring Port Authentication Settings for 802.1X
89
Displaying 802.1X Statistics
92
10 Management
94
Configuring Event Logging
94
System Log Configuration
94
Show/Download Log
96
Remote Log Configuration
96
Link Layer Discovery Protocol
97
Setting LLDP Timing Attributes
98
Configuring LLDP Interface Attributes
99
Displaying LLDP Local Device Information
101
Displaying LLDP Remote Port Information
104
Displaying Device Statistics
108
11 IP Configuration
112
Using the PING Function
112
Address Resolution Protocol
113
Setting ARP Timeout
113
Displaying ARP Entries
114
12 Multicast Configuration
115
IGMP Snooping Configuration
115
Configuring IGMP Snooping and Query Parameters
115
Static Multicast Router
116
Assigning Interfaces to Multicast Services
118
Setting IGMP Snooping Status Per Interface
120
Displaying Multicast Groups Discovered by IGMP Snoopoing
122
