1. Click Traffic, Priority, PHB to Queue.
2. Select Add from the Action list.
3. Map an internal PHB to a hardware queue.
4. Click Apply.

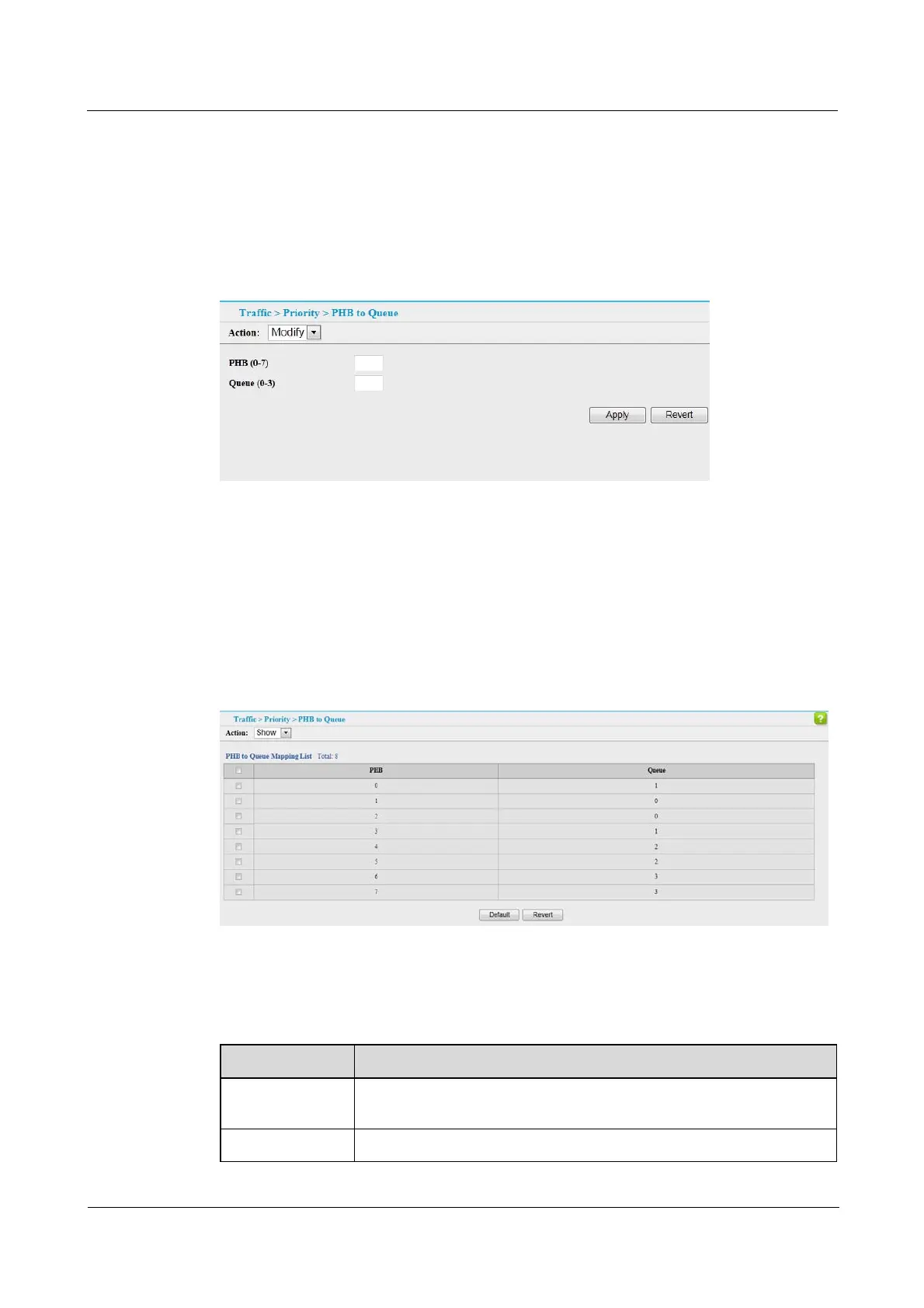

Figure 8-12 Mapping PHB Value to Egress Queues
----End
To show the internal PHB to hardware queue map:
1. Click Traffic, Priority, PHB to Queue.
2. Select Show from the Action list.
Figure 8-13 Showing PHB Value to Egress Queue Mapping
----End
Table 8-10 Parameters of PHB to Queue
Title Description
PHB Per-hop behavior, or the priority used for this router hop.(Range: 0-7,
where 7 is the highest priority)
Queue Output queue. (Range: 0-3, where 3 is the highest CoS priority queue)
