Huawei S1720 Series Configuration Guide

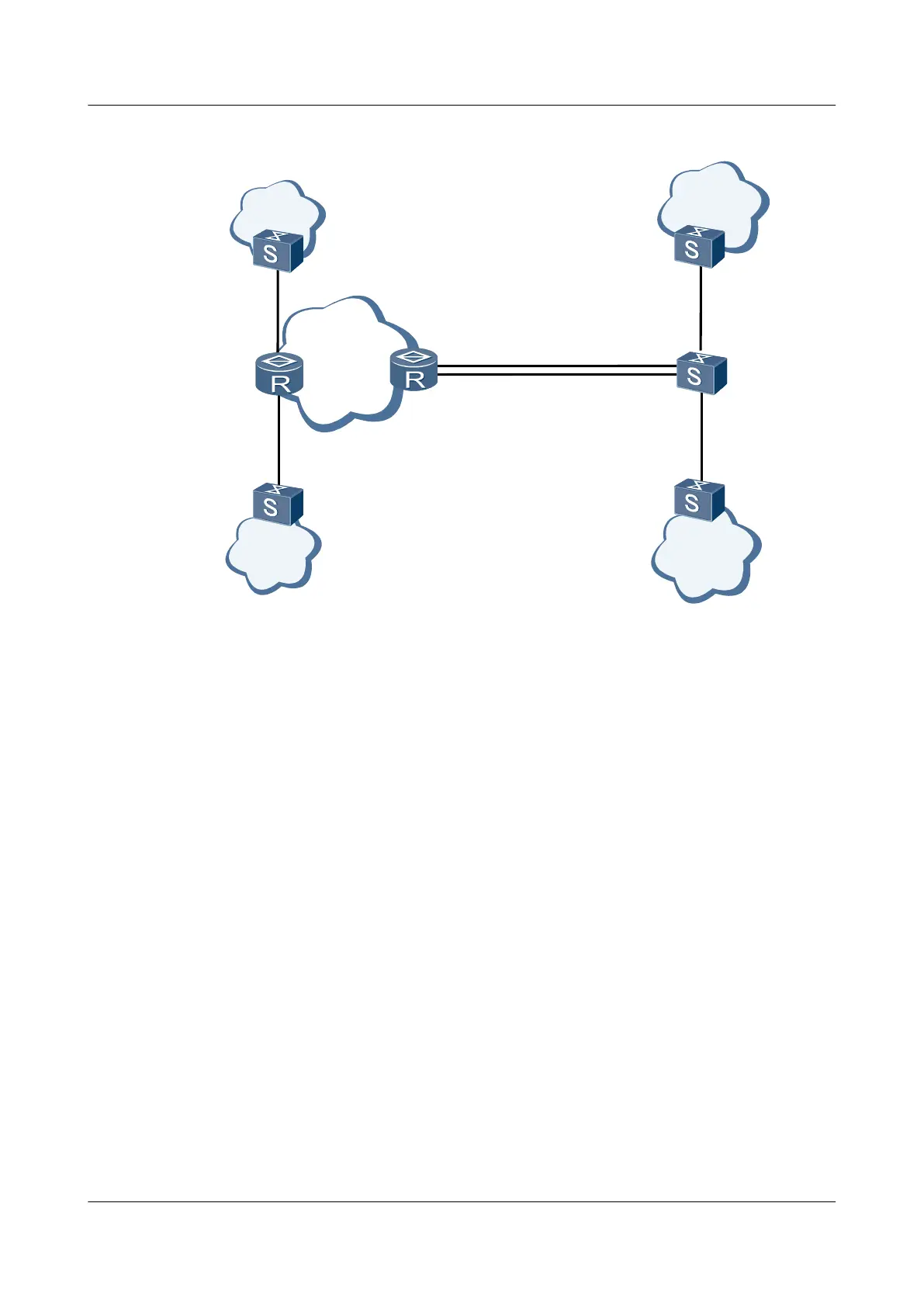

Figure 11-3 Networking diagram for configuring MCE
vpnb
vpna
vpna
192.168.2.0/24
vpnb
192.168.1.0/24
BGP MPLS
IP VPN
CE1
CE2
CE4
CE3
MCE
PE1
PE2
XGE 0/0/1
XGE 0/0/3
XGE 0/0/1
XGE 0/0/4
XGE 0/0/1
VLAN10
VLAN20
VLANIF30
172.18.1.2/16
VLANIF40
172.19.1.2/16
VLAN30
VLAN40
GE 1/0/1.1
172.18.1.1/16
GE 1/0/1.2
172.19.1.1/16
VLANIF10
192.168.1.1/24
VLANIF20
192.168.2.1/24
Configuration Roadmap
The configuration roadmap is as follows:
1. Create VLANs on the MCE, PE2, CE3, and CE4, and add the interfaces connecting these
devices to the VLANs.
2. Create and configure VPN instances on the MCE and PE2.
3. Configure the OSPF route multi-instance on the MCE and PE2.
Data Preparation
To complete the configuration, you need the following data:
l VLANs between the MCE, PE2, CE3, and CE4, as shown in Figure 11-3
l IP addresses of VLANIF interfaces, as shown in Figure 11-3
Configuration Procedure
1. Create VLANs on the MCE, PE2, CE3, and CE4, and add the interfaces connecting these
devices to the VLANs.
# Create VLANs on the MCE.
<Quidway> system-view
[Quidway] sysname MCE
[MCE] vlan batch 10 20 30 40
# Add interfaces to the VLANs on the MCE.
S6700 Series Ethernet Switches
Configuration Guide - IP Routing 11 MCE Configuration
Issue 01 (2012-03-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
641

Huawei S1720 Series Specifications

General

Operating Humidity	5% to 95% (non-condensing)
Uplink Ports	4 x GE combo ports
VLANs	4094
Power Supply	AC 100-240V, 50/60Hz
Layer 2 Features	VLAN
Layer 3 Features	Static routing
Management	SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to +70°C
Dimensions (W x D x H)	442 mm x 220 mm x 43.6 mm
