Huawei SmartAX MA5608T Hardware Description

Indicator
Indicato
r
Name Color Status Meaning
RUN
ALM
Running
status
indicator
Green Blinking slowly (on
for 1 s and off for 1 s
repeatedly)
The board works in the
normal state
Green Blinking quickly (on
for 0.25 s and off for
0.25 s repeatedly)
The board is starting up
Red On The board is faulty
BSY Port status
indicator
Green On At least one service port is
activated
- Off No service port is activated
Pin Assignments

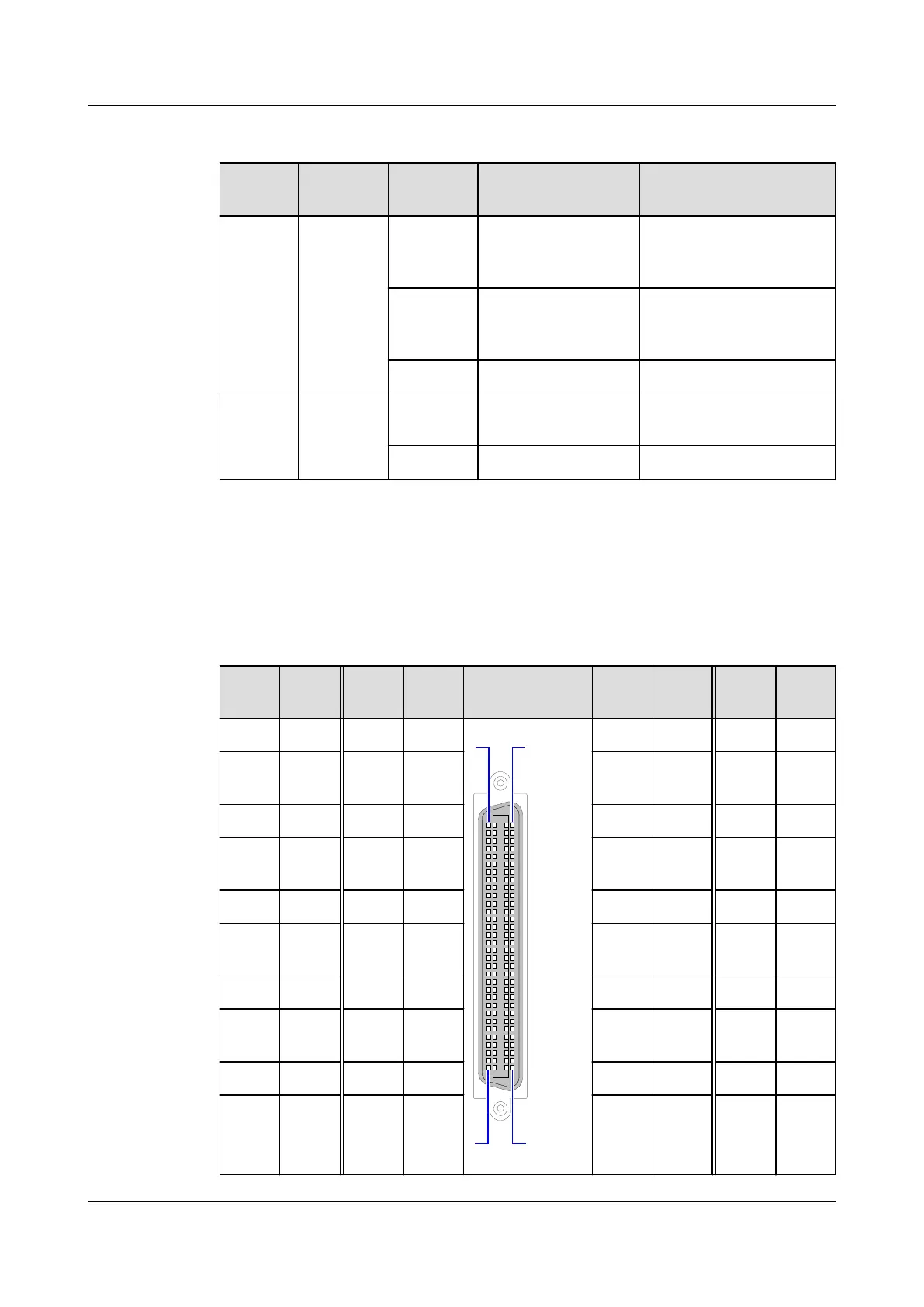

Table 3-58 describes the pin assignments of the PSTN port on the front panel of the
H801ASRB board.
Table 3-58 Pin assignments of the LINE port
Pin
Signa
l
Pin Signa
l
Port Pin Signa
l
Pin Signa
l
64 TIP15 48 TIP7
133
3264
32 TIP16 16 TIP24
63 RING
15
47 RING
7
31 RING
16
15 RING
24
62 TIP14 46 TIP6 30 TIP17 14 TIP25
61 RING
14
45 RING
6
29 RING
17
13 RING
25
60 TIP13 44 TIP5 28 TIP18 12 TIP26
59 RING
13
43 RING
5
27 RING
18
11 RING
26
58 TIP12 42 TIP4 26 TIP19 10 TIP27
57 RING
12
41 RING
4
25 RING
19
9 RING
27
56 TIP11 40 TIP3 24 TIP20 8 TIP28
55 RING
11
39 RING
3
23 RING
20
7 RING
28
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
464

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
