DC-powered Cabinet with One ETSI Subrack and One SPL Subrack

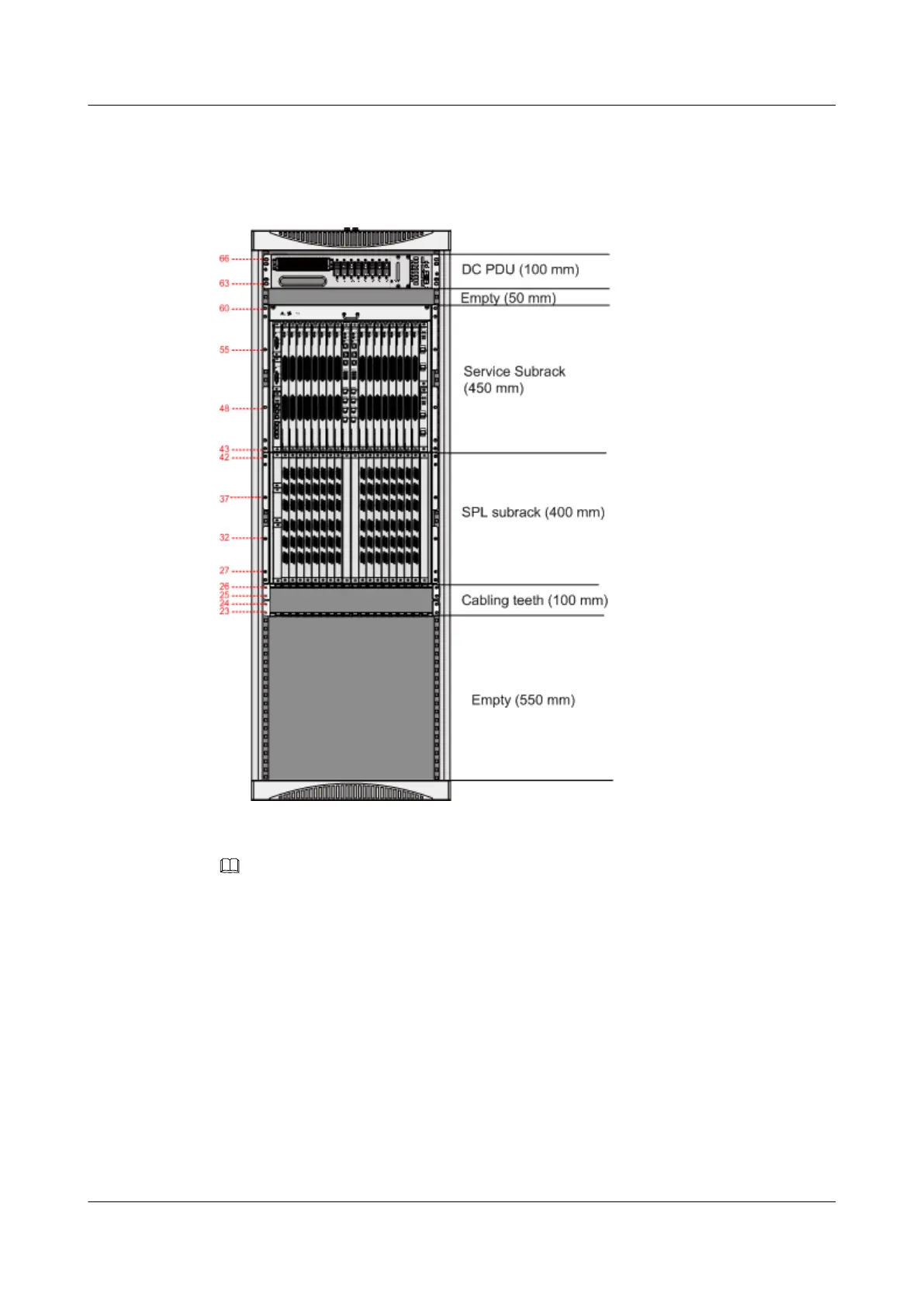

Figure 1-28 Configuration of the N66E-18 cabinet installed with one ETSI subrack and one
SPL subrack
NOTE
l In Figure 1-28, the filled holes are for floating nuts to fasten subracks.
l The I-type PDU is used for the DC power supply.
l Cabinet installation against the wall or back-to-back cabinet installation is not supported.
AC-powered Cabinet with Two ETSI Subracks
Figure 1-29 shows the configuration of the N66E-18 cabinet installed with two ETSI
subracks.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
36
