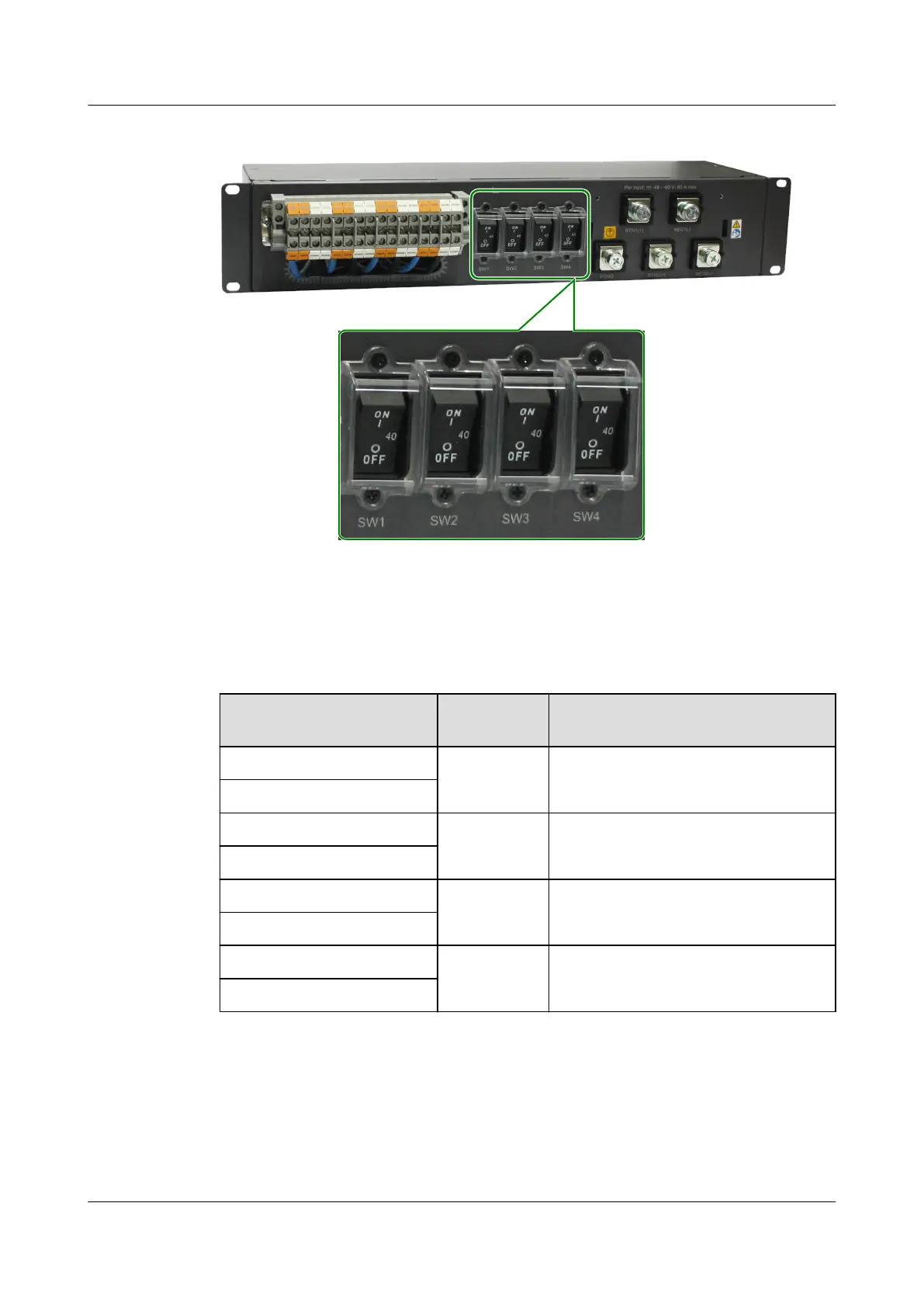

Figure 6-13 -48 V/-60 V output control switch of the C3-type DC PDU
Table 6-10 lists the mapping between the output terminals, control switches and service
subracks.
Table 6-10 Mapping between the output terminals, control switches and service subracks
Terminal Silkscreen
Control
Switch
Load
48V1, 48V1 SW1 The first service subrack (from bottom to
top)
BGND, BGND
48V2, 48V2 SW2 The second service subrack (from
bottom to top)
BGND, BGND
48V3, 48V3 SW3 The first service subrack (from bottom to
top)
BGND, BGND
48V4, 48V4 SW4 The second service subrack (from
bottom to top)
BGND, BGND
Specification
Table 6-11 shows the main performance specifications of the C3-Type DC PDU.
