IAI RCP6S User Manual

Fieldbus Communication
16
RCP6
S

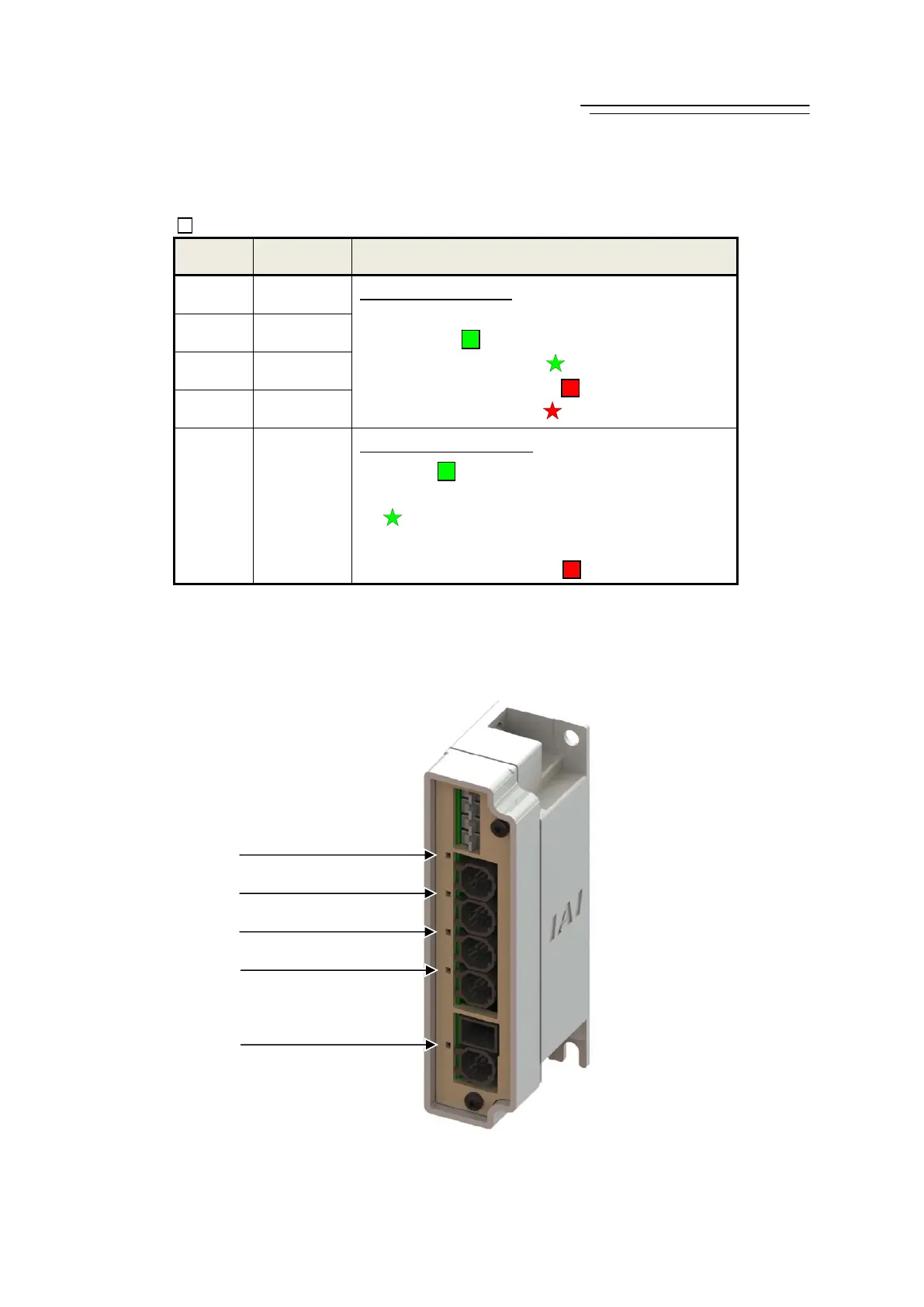

11) Axis Status Display LED
It shows the status of hub unit and connected actuator.
: Illuminating ×: OFF ✰: Flashing
Symbol LED Display Color and Operation Status
LED1 AX3 STS
Axis No.0 to 3 Status
Servo OFF (× OFF)
Servo ON ( Green Illuminating)
Automatic Servo OFF ( Green Flashing)
(Note 1)
Alarm, Emergency Stop ( Red Illuminating)
Communication Error ( Red Flashing)
(Note 2)
LED2 AX2 STS
LED3 AX1 STS
LED4 AX0 STS
LED5 SYS
Hub Unit System Status
Ready ( Green Illuminating)
Standby for communication establishment
( Green
Flashing)
(Note 2)
Control/ Motor power voltage drop
Alarm, Emergency Stop ( Red Illuminating)
Note 1 The lamp turns on and off in every 1sec.
Note 2 The lamp turns on and off in every 0.25sec.
LED1: AX3 STS
LED2: AX2 STS
LED3: AX1 STS
LED4: AX0 STS
LED5: SYS
ME0349-4B
