IAI RCP6S User Manual

2. Wiring
Fieldbus Communication
53
RCP6
S
■ Connector Conversion Unit
Use this connector conversion unit in case of actuators not being able to connect to the connection
cable for RCP6S Gateway in 5) in the previous page in order to convert it to the existing controller
connector (PADP-24V-1-S) and connect the connection cables to each actuator.

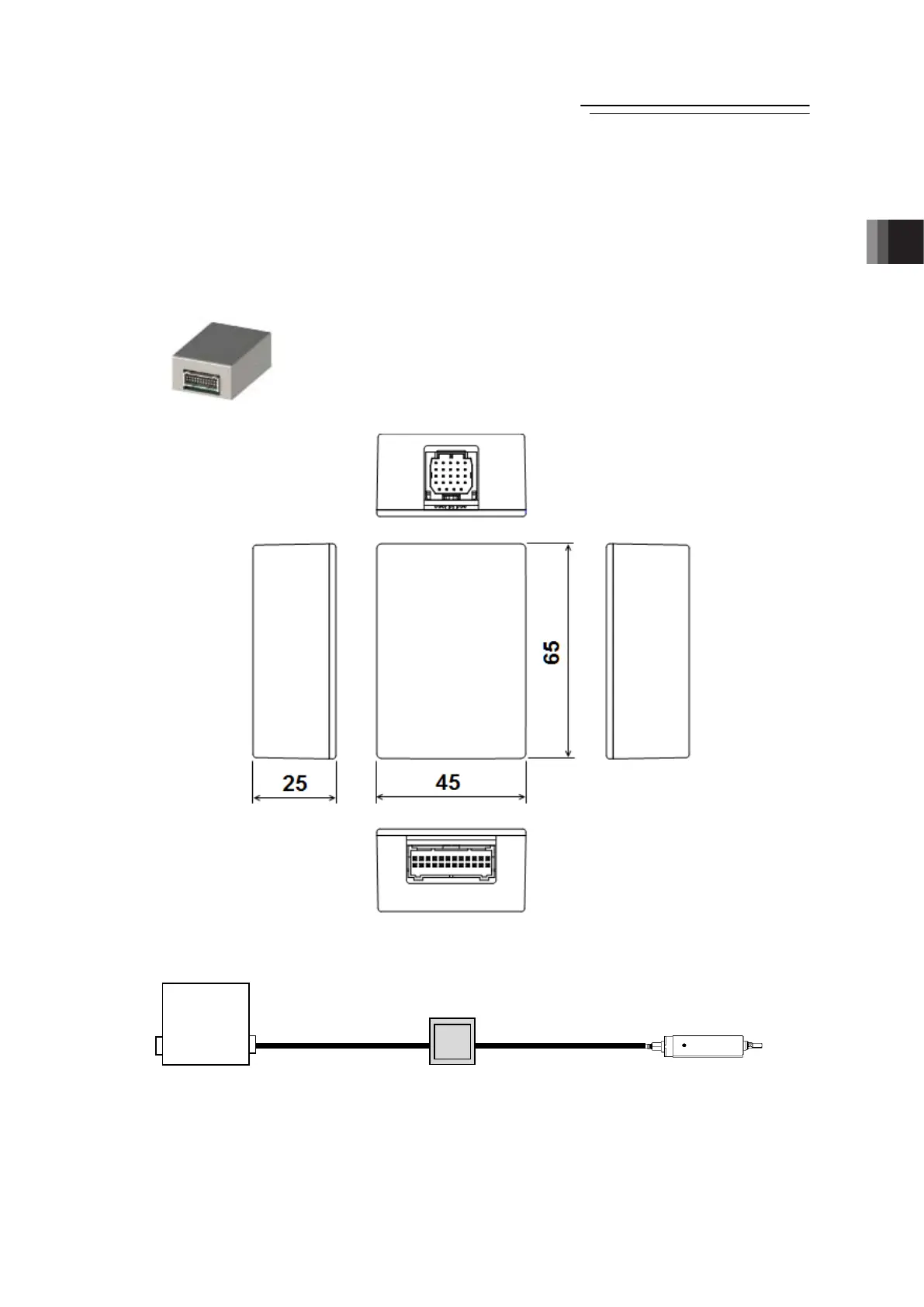

Connector Conversion Unit (RCM-CV-APCS)
Example for Connection
* Refer to an instruction manual of each actuator for the model code of the connection cables for
each actuator.
RCP6S Gateway
Controllers
Actuator Side
A
ctuato
r
Connector
Conversion Unit
RCM-CV-APCS
5) RCP6S
Gateway
Connector
RCP6S
Gateway Controllers
Power axis
Supply Control
Connector Connector
Each Actuator
Connector
ME0349-4B
