7.2.2 Replacement of Absolute Battery
For the battery replacement, remove the battery connector while keeping the power to the
controller ON, and change the battery installed in the battery holder.
There is a locking feature on the absolute battery holder for SCON-CAL/CGAL. Make sure to
lock when attaching and unlock when detaching.
Caution: To replace the old absolute battery with a new one with the controller power being
OFF, complete the replacement within 15 minutes from the removal of the old
battery. The absolute data may get lost if it exceeds 15 minutes.

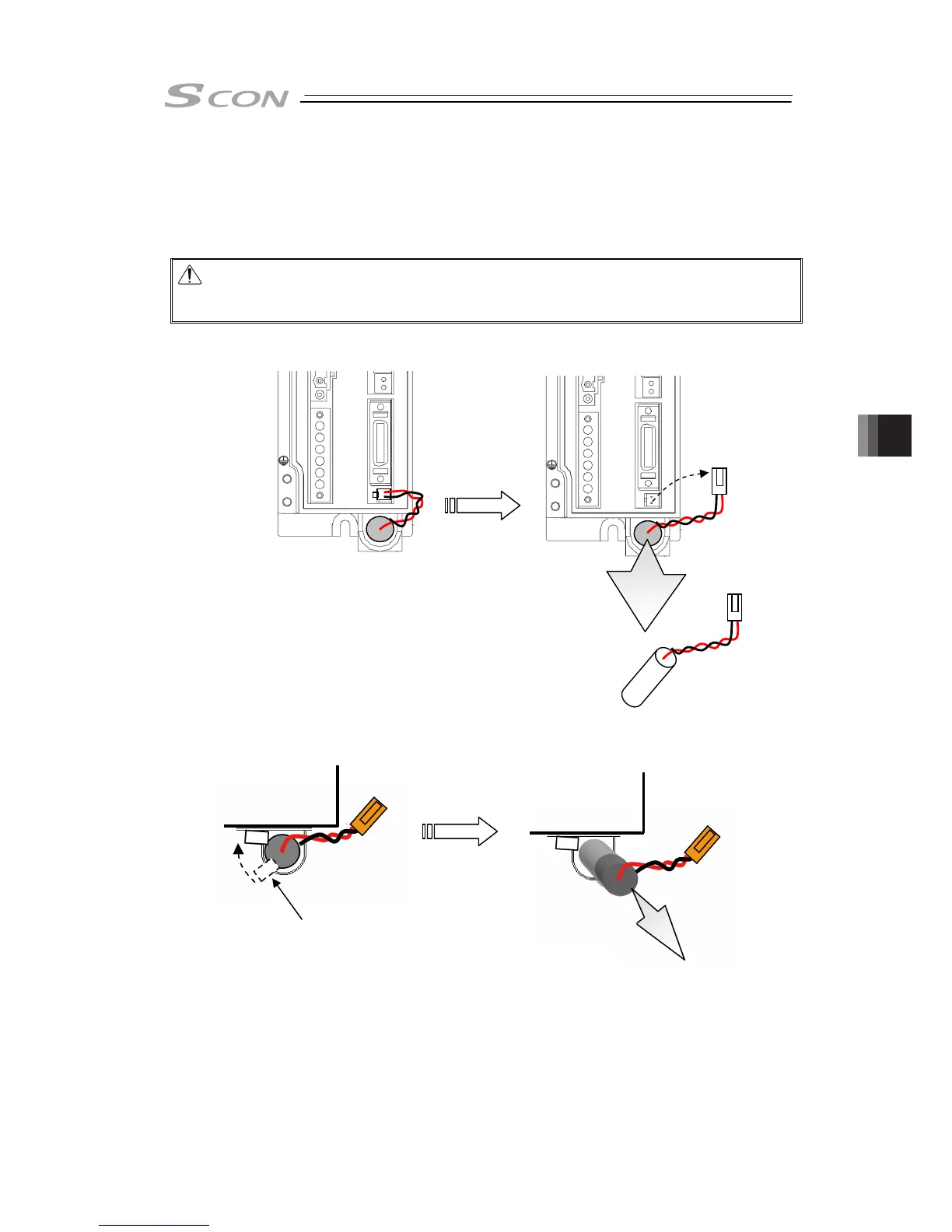

[Removal]
[How to Lock/Unlock Absolute Battery Holder for SCON-CAL/CGAL]
Battery holder
Disconnect the
connector and pull
out the battery.
With the battery holding feature moved to the controller
side, it is available to attach and detach the battery.
