Chapter 2 Wiring

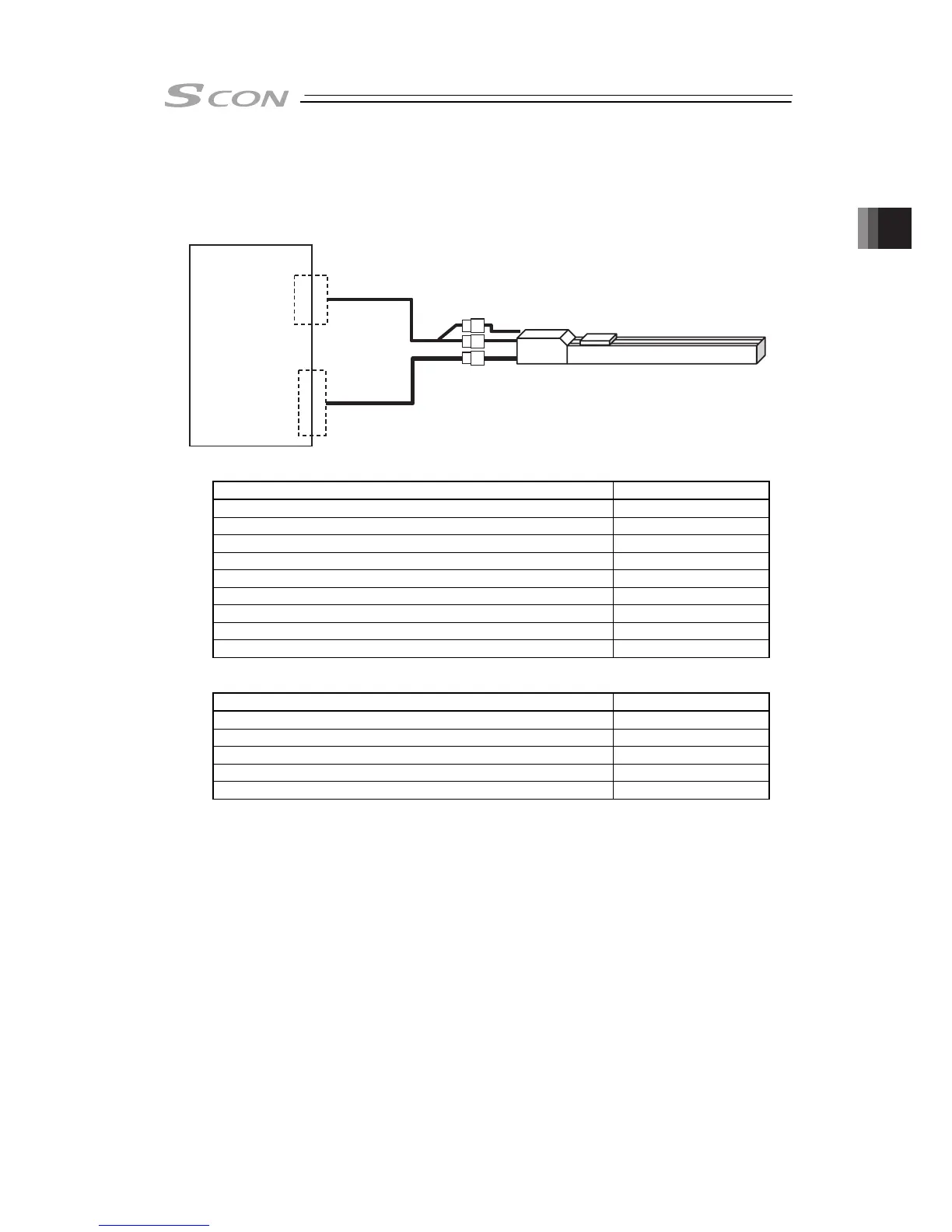

[4] Motor • Encoder Circuit

1) Connection of Short-Axis Robot (excluding RCS2-RA13R equipped with brake/loadcell and

NS Series equipped with brake)

Note 1 Applicable Encoder Cable types □□□ : cable length Example) 030 = 3m

Actuator Type Cable

For Single Axis Robot Connection CB-X1-PA□□□

For connection of Short-Axis Robot with LS type CB-X1-PLA□□□

For ISWA Connection CB-X1-PA□□□-WC

For connection of NS/Linear Servo/RCS2 CB-X3-PA□□□

For connection of NS/Linear Servo/RCS2 equipped with LS CB-X2-PLA□□□

For RCS2 CB-RCS2-PA□□□

For RCS2-RT/RA13R CB-RCS2-PLA□□□

For RCS2-RA13R equipped with loadcell CB-RCS2-PLLA□□□

For RCS2-RA13R equipped with loadcell (robot cable) CB-RCS2-PLLA□□□-RB

Note 2 Applicable Motor Cable types □□□ : cable length Example) 030 = 3m

Actuator Type Cable

For Linear (except for Large Type) CB-X-MA□□□

For Large Type Linear CB-XMC-MA□□□

For Single Axis Robot Connection CB-RCC-MA□□□

For Single Axis Robot Connection (robot cable) CB-RCC-MA□□□-RB

For ISWA CB-XEU-MA□□□

SCON

MOT

Encoder Cable

Note 1

Motor Cable

Note 2

Encoder

Connector

Motor

Connector
