IAI SCON-CA - Examples of Safety Circuits

Chapter 10 Appendix
274

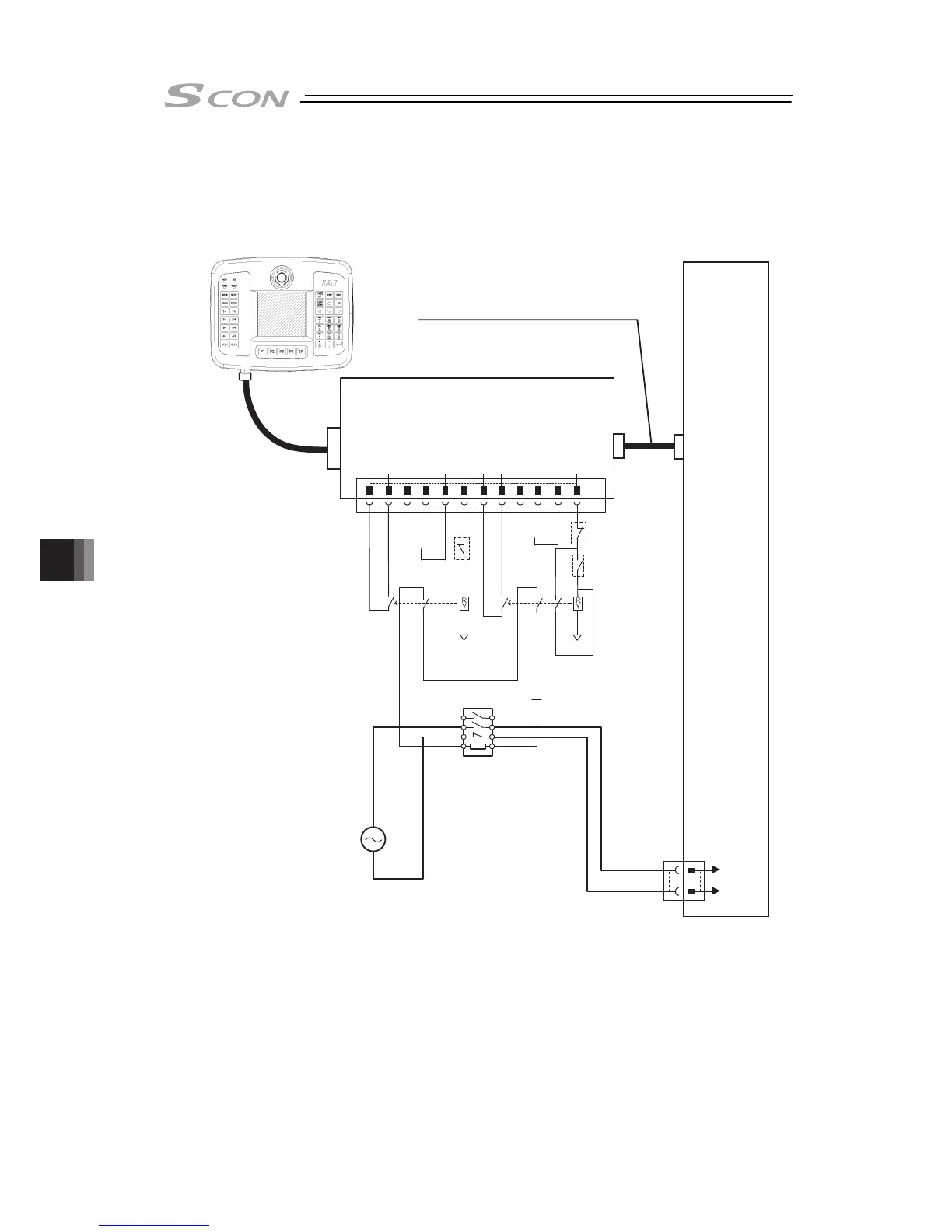

[3] Examples of Safety Circuits
1) In case of category 1
TB-01D(R)
(or Dummy plug : DP-4S)
Connection Cable CB-CON-LB***
Controller
● SCON
Enable SW
SW
Reset
SW
Emergency
Stop
24V
24V
0V 0V
RCB-LB-TGS
Solenoid Contactor
Motor Power Supply
SCON : 100V AC/200V AC
Motor
Power
Supply
ENBOUT ENBIN ENB2+ ENB2- ENB1+ ENB1- EMGOUT EMGIN EMG2+ EMG2- EMG1+ EMG1-
12 11 10
9 8 7 6 5 4 3 2 1
L1
L2
