1.5.5 Loadcell (Dedicated for SCON-CA Option)
This is the pressing force detection unit that is used for the pressing operation using force sensor.
This is used by connecting to the actuator corresponding to the pressing operation using force
sensor.
[Specification]
Item Specification
Loadcell System Strain Gauge
Rated Capacity 20000N
Allowable Overload
200%R.C
*
An alarm occurs if:
Pressing force exceeds 150% of R.C*.
Tensile force exceeds 25% of R.C*.
Lordcell Accuracy
±1%R.C
*
Zero
±0.2%R.C
*
/10°C
Temperature
drift
Output
±0.1%R.C
*
/10°C
Ambient temperature range
0 to 40°C
Dielectric strength voltage 50V DC
* R.C : Rated Capacity

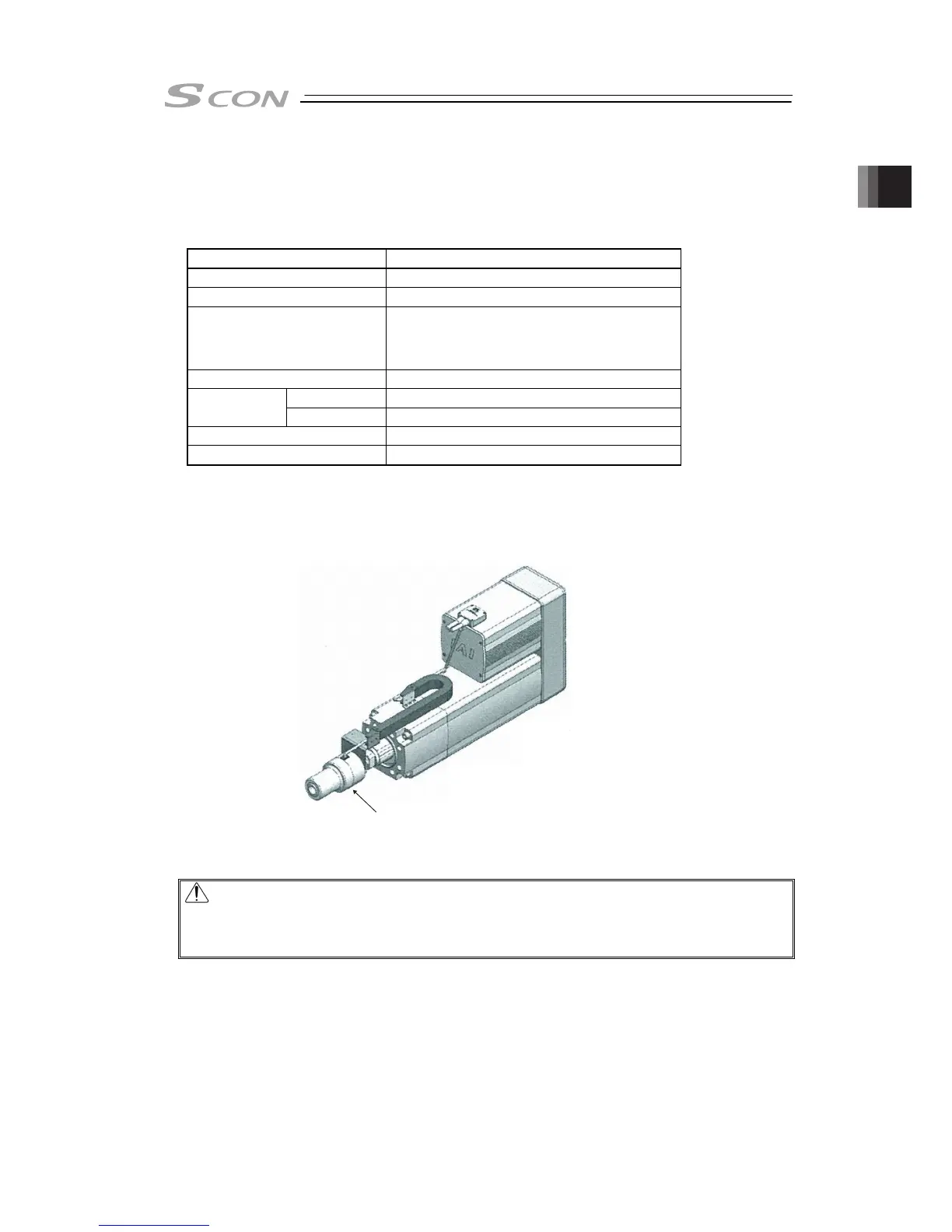

[Installation Drawing]
Installation of loadcell on RCS2-RA13R
Check the Instruction Manual for details of how to attach and the dimensions.
Caution :
1) Do not give excess shock (caused by dropping it, etc.) to the loadcell. Failure to follow it
may cause the loadcell to be damaged.
2) The life of the loadcell is about two million pressing operation.
Loadcell
